VSP |
USE LIMITATIONS
• Maximum working pressure: 9 bar (130 p.s.i). (check with other models)
• Fluids permitted: clean and chemically non-aggressive liquid water; if impurities are found in the liquid, install a lter
upstream.
• Maximum ambient temperature: 40°C, with the possibility of changing the air.
• Minimum ambient temperature: -5°C
• Maximum temperature of the liquid: 55°C
• Minimum temperature of the liquid: 0°C
• Variation in voltage supply permitted ±10% compared to plate data.
• VSP is not suitable for pumping ammable liquids or working in environments with danger of explosion.
AUTO-LIMITATION FOR OVERLOAD
If the current detected by the inverter or the temperature of the inverter components exceeds the safety limits, VSP proceeds
with a progressive reduction in operating frequency until the values exceeding the limits have returned within them.

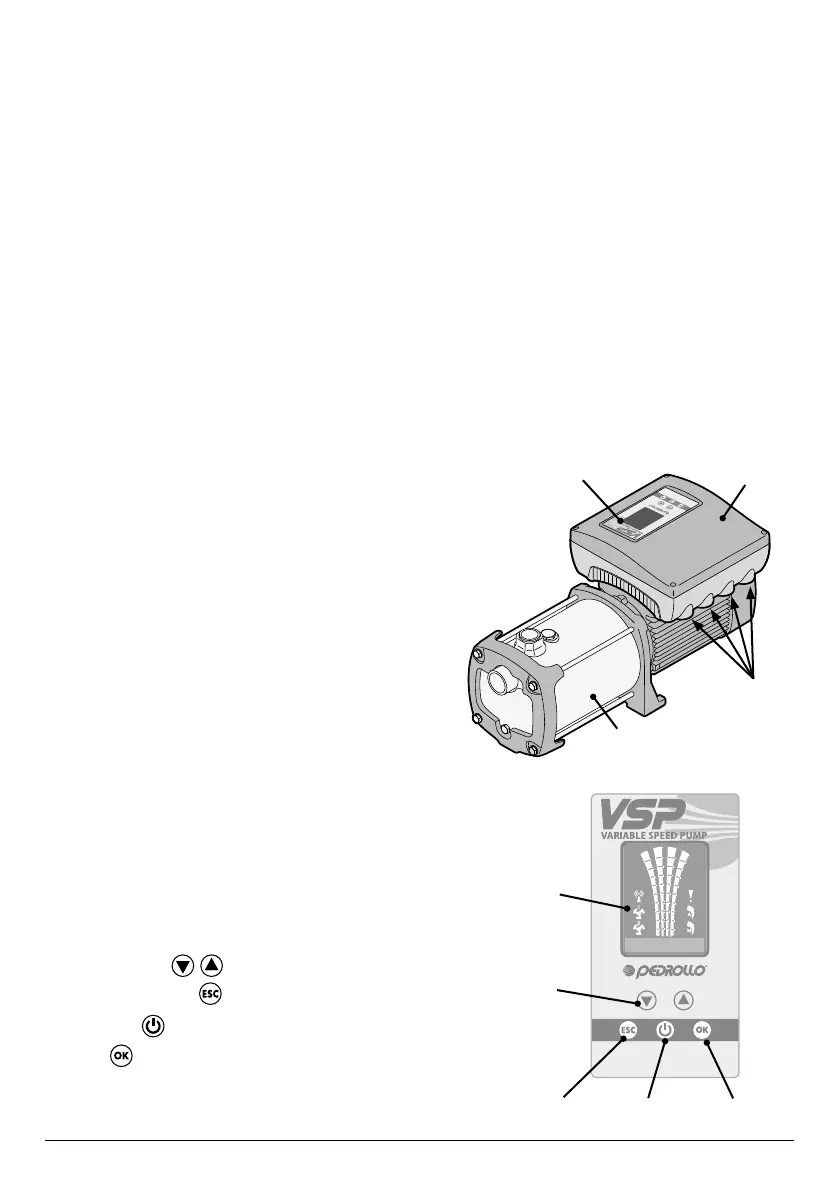

PARTS LIST
1. INVERTER
2. Electric pump
3. Control panel
4. Cable glands
THE CONTROLS
5. Display with 4 backlighting modes
– Green: inverter/electric pump running
– White: inverter/electric pump in stop or in stand-by
– Yellow: inverter/electric pump in programming (setup)
– Red: inverter/electric pump in alarm mode
6. Scroll arrow keys
7. ESC menu output key
8. ON/OFF key
9. OK key
4
2
3
1
STOP
6
7
8
9
5
