PEERLESS Mounts PRG UNV - Installation to Threaded Rod

ISSUED: 02-13-07 SHEET #: 055-9485-1
Visit the Peerless Web Site at www.peerlessmounts.com
6 of 33
For customer care call 1-800-865-2112 or 708-865-8870.
1/4-20 THREADED ROD
(NOT INCLUDED)

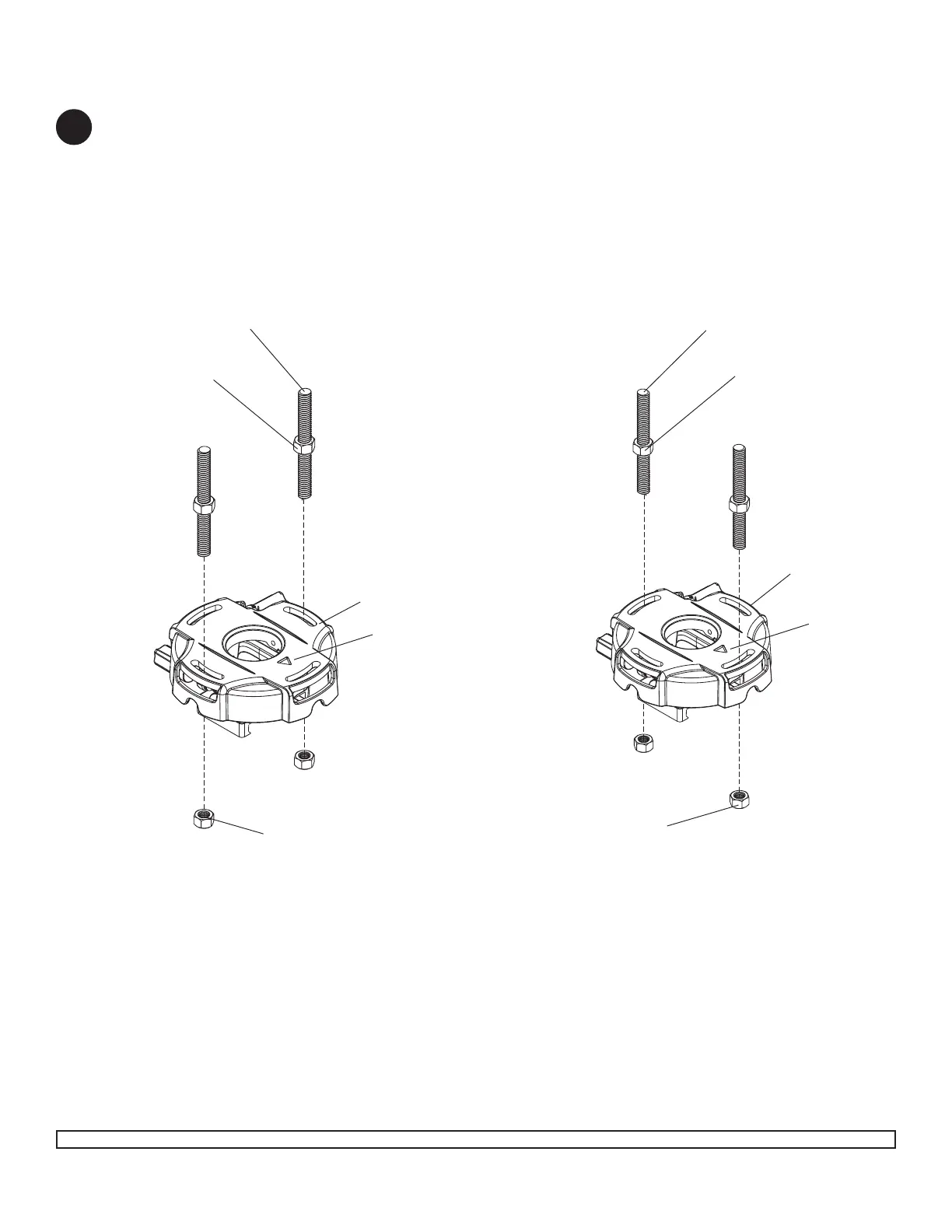

Thread two 1/4-20 hex thin nylon-insert locknuts (not included) on two 1/4-20 threaded rods (not included) to the
desired height of projector mount assembly. Attach projector mount assembly (A) to the two 1/4-20 threaded rods
using two 1/4-20 hex thin nylon-insert locknuts as shown in figure 4.1 or figure 4.2.
Skip to step 5.
A
Installation to Threaded Rod
(Not evaluated by UL - Professional installation only)
1/4-20 THREADED ROD
(NOT INCLUDED)
A
fig. 4.1 fig. 4.2
1/4-20 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
4
1/4-20 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
1/4-20 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
1/4-20 HEX THIN
NYLON-INSERT
LOCKNUT
(NOT INCLUDED)
ARROW
INDICATES
FRONT OF
MOUNT
ARROW
INDICATES
FRONT OF
MOUNT
