8 of 27
ISSUED: 11-21-07 SHEET #: 202-9255-2 02-22-08
Visit Peerless website at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2
for a full screen compatibility chart for this mount.

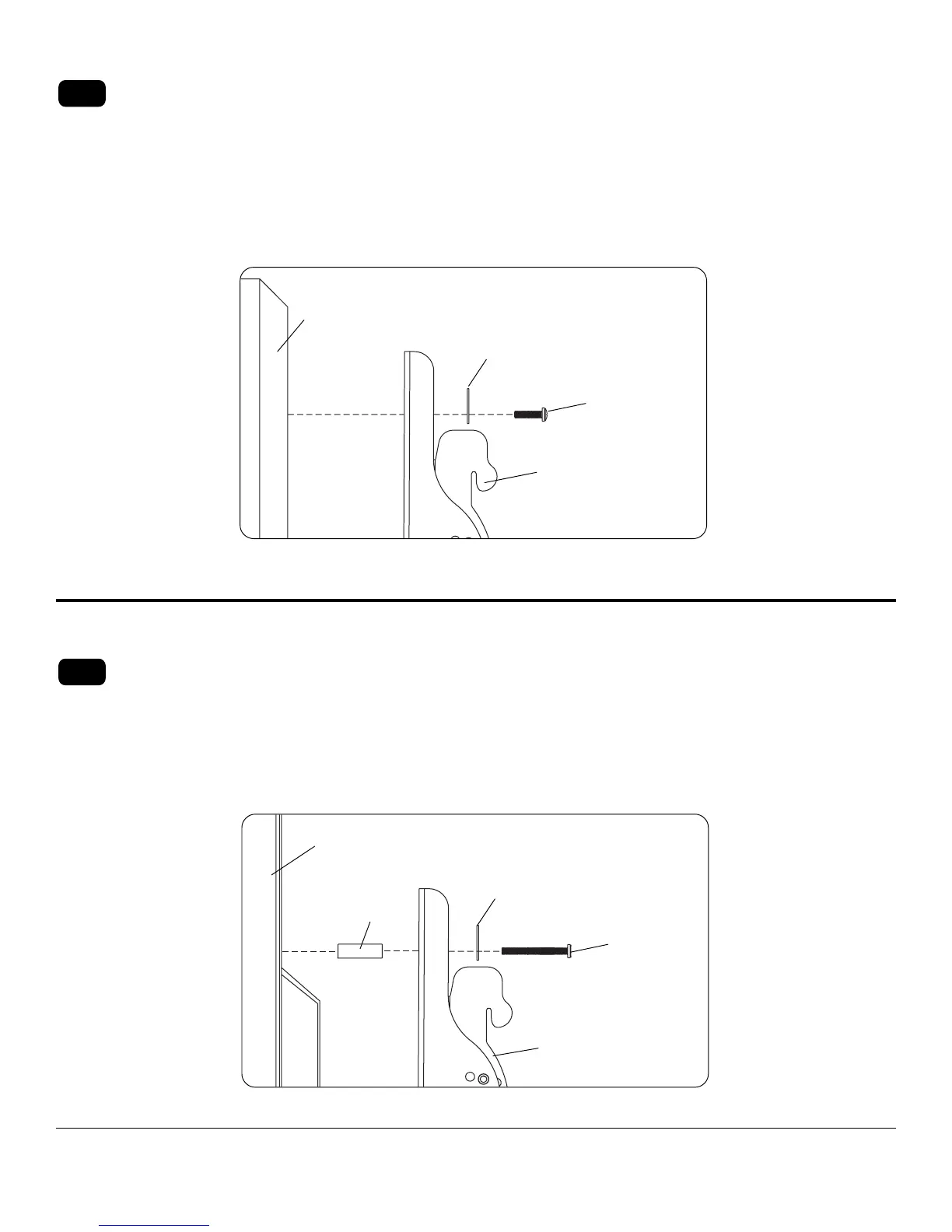

Begin with the shortest length screw, hand thread through multi-washer and adapter bracket (BB or CC) into screen
as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not
over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2
for a full screen compatibility chart for this mount.
Begin with longer length screw, hand thread through multi-washer, adapter bracket (BB or CC) and spacer in that
order into screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into
place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from
the baffled fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
For Flat Back Screen
For Bump-out or Recessed Back Screen
SCREEN
MULTI-WASHER
SCREW
ADAPTER
BRACKET
(BB or CC)
fig 2.2
SPACER
ADAPTER
BRACKET
(BB or CC)
SCREEN
fig 2.1
MULTI-WASHER
SCREW
2-2
2-1
If you have any questions, please call Peerless customer care at 1-800-865-2112.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
