Pegatron IPPSB-DB - Panel Inverter Connector; LVDS Connector

IPPSB-DB Mainboard User Guide 11
Connectors

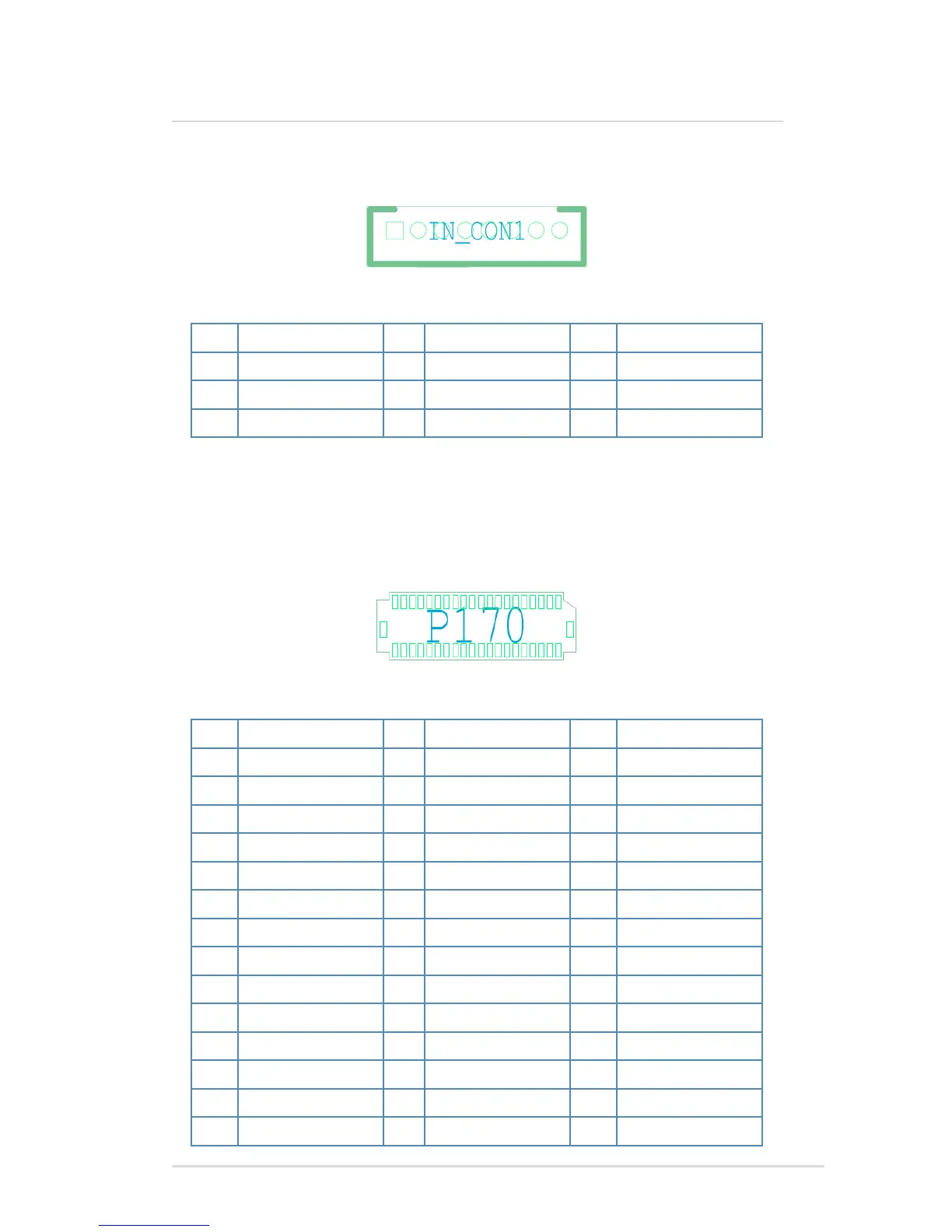

Panel inverter connector (A7/Pitch 2.0mm)
LVDS connector (A9/Pitch 1.0mm)
Pin Signal Name Pin Signal Name Pin Signal Name
1 +19VSB 4 GND 7 INV_ADJUST
2 +19VSB 5 GND 8 INV_ENABLE
3 +19VSB 6 GND 9
Pin Signal Name Pin Signal Name Pin Signal Name
1 GND 15 L1_TX2+_NB_C 29 L1_TX0-_NB_C
2 GND 16 L2_TX2+_NB_C 30 L2_TX0-_NB_C
3 L1_TX3+_NB_C 17 L1_TX2-_NB_C 31 GND
4 L2_TX3+_NB_C 18 L2_TX2-_NB_C 32 GND
5 L1_TX3-_NB_C 19 GND 33 NC
6 L2_TX3-_NB_C 20 GND 34 NC
7 GND 21 L1_TX1+_NB_C 35 +5VSB
8 GND 22 L2_TX1+_NB_C 36 +5VSB
9 L1_TXC+_NB_C 23 L1_TX1-_NB_C 37 +5VSB
10 L2_TXC+_NB_C 24 L2_TX1-_NB_C 38 +5VSB
11 L1_TXC-_NB_C 25 GND 39 +5VSB
12 L2_TXC-_NB_C 26 GND 40 +5VSB
13 GND 27 L1_TX0+_NB_C 41 GND
14 GND 28 L2_TX0+_NB_C 42 GND
