IPPSB-DB Mainboard User Guide 9
Connectors

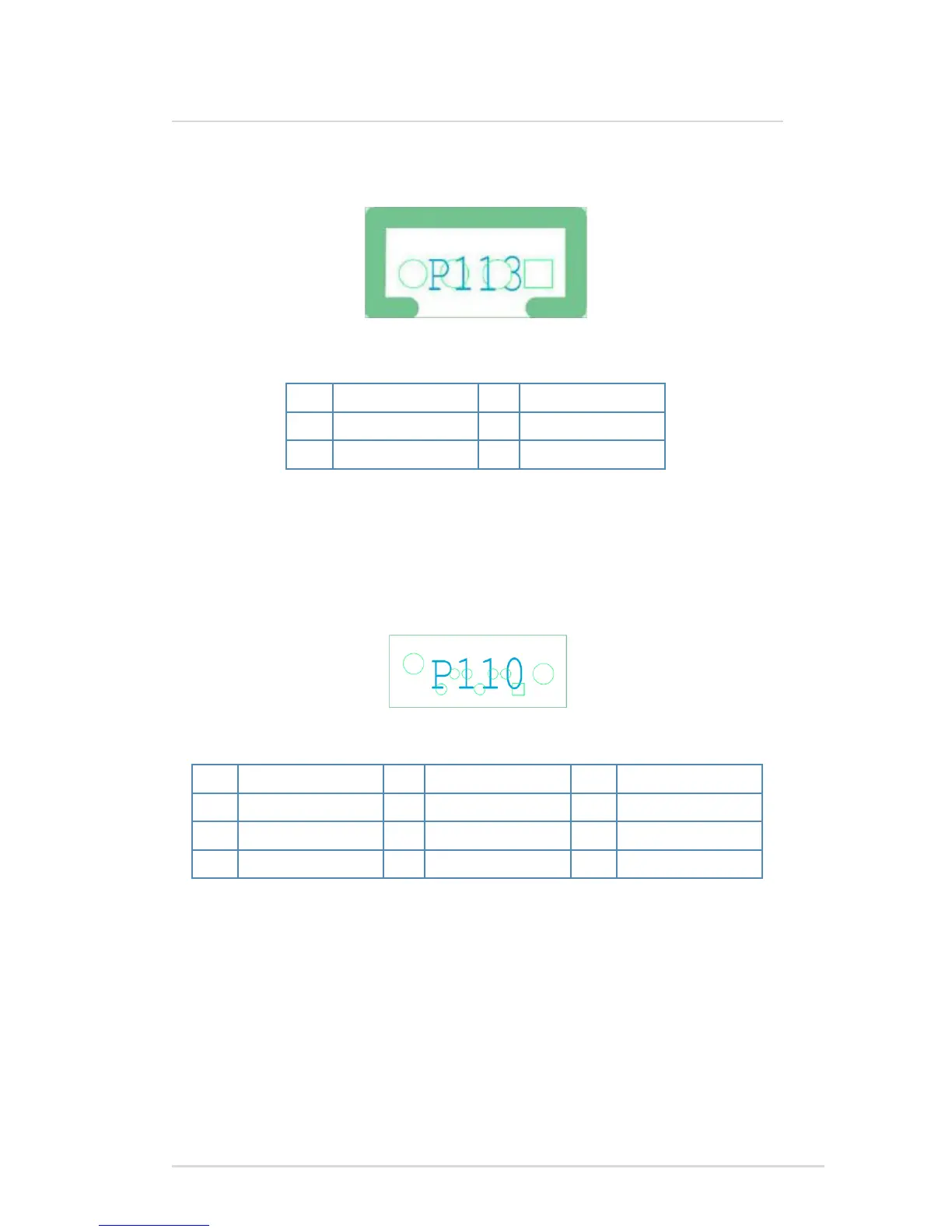

SATA connector (A4 and A33/Pitch 1.27mm)
SATA HDD Power connector (A3/Pitch 2.0mm)
Pin Signal Name Pin Signal Name
1 +5V 3 GND
2 GND 4 +12V
Pin Signal Name Pin Signal Name Pin Signal Name
1 GND 4 GND 7 GND
2 SATA_TXP1 5 SATA_RXN1 8 NC
3 SATA_TXN1 6 SATA_RXP1 9 NC
