IPPSB-DB Mainboard User Guide

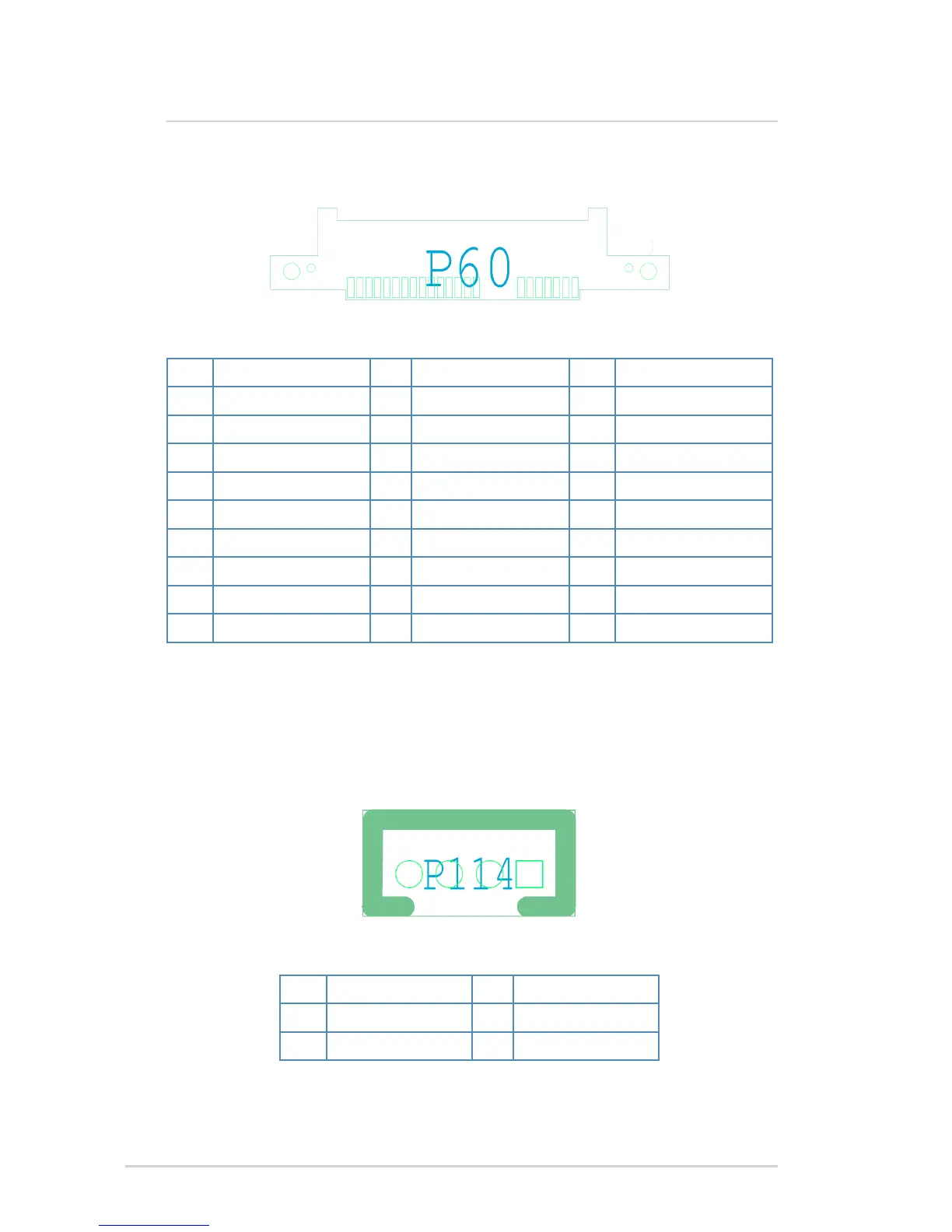

2.5” HDD connector (A1/Pitch 1.27mm)
Pin Signal Name Pin Signal Name Pin Signal Name
1 GND 10 +3P3V 19 GND
2 SATA_TXP0_C 11 GND 20 +12V
3 SATA_TXN0_C 12 GND 21 +12V
4 GND 13 GND 22 +12V
5 SATA_RXN0_C 14 +5V 23
6 SATA_RXP0_C 15 +5V 24
7 GND 16 +5V 25
8 +3P3V 17 GND 26
9 +3P3V 18 GND
ODD Power connector (A2/Pitch 2.0mm)
Connectors
Pin Signal Name Pin Signal Name
1 +5V 3 GND
2 +5V 4 GND
