1-28 Chapter 1: Product introduction

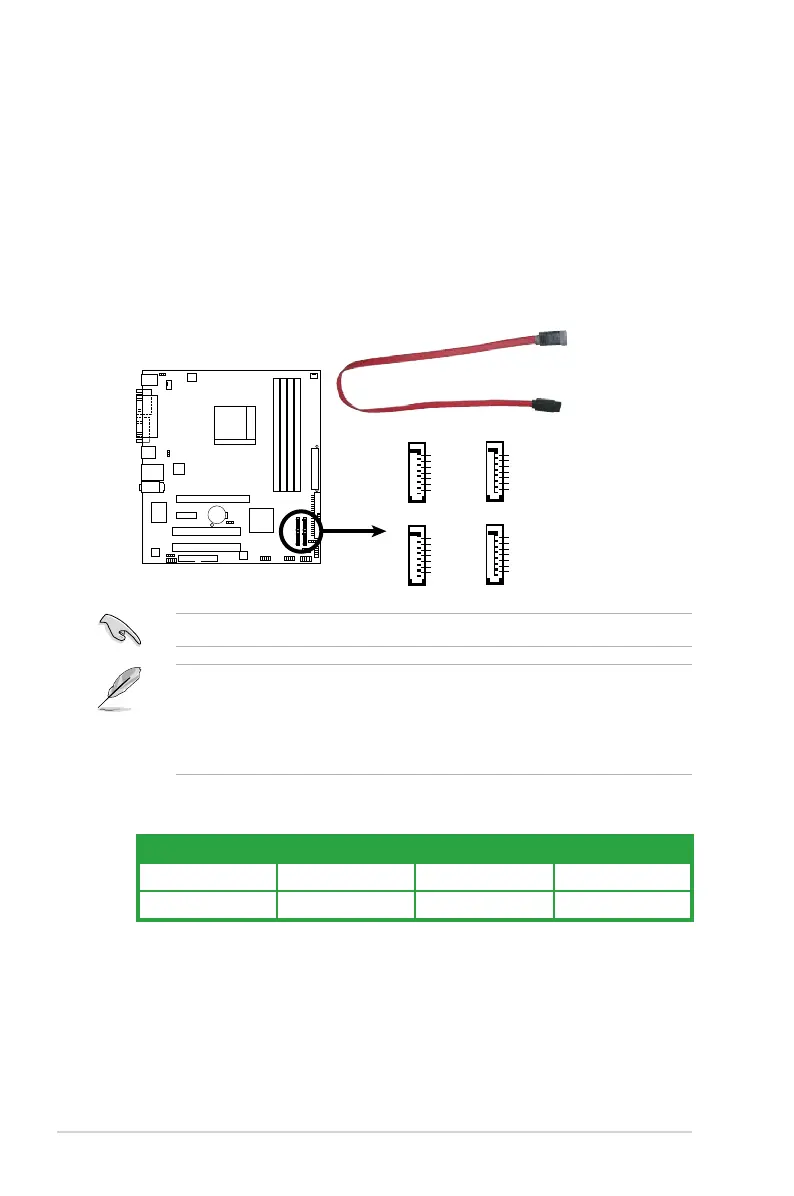

4. Serial ATA connectors (7-pin SATA1, SATA2, SATA3, SATA4)
These connectors are for the Serial ATA signal cables for Serial ATA
3Gb/s hard disk and optical disk drives. The Serial ATA 3Gb/s is backward
compatible with Serial ATA 1.5Gb/s specication. The data transfer rate of the
Serial ATA 3Gb/s is faster than the standard parallel ATA with 133 MB/s (Ultra
DMA133).
If you install Serial ATA hard disk drives, you can create a RAID 0, RAID 1,
RAID 5, RAID 10, and JBOD conguration through the onboard controller.
Install the Windows
®
XP Service Pack 1 before using Serial ATA.
• For detailed instructions on how to congure RAID 0, RAID 1, RAID 5, and
RAID 10, and JBOD, refer to the RAID manual in the support CD.
• If you intend to create a Serial ATA RAID set using these connectors, set
the SATA Mode select item in the BIOS to [RAID Mode]. See the
page 2-13 for details.
Serial ATA hard disk drive connection
Connector Color Setting Use
SATA1/2 Red Master Boot disk
SATA3/4 Black Slave Data disk
M2N-VM/S SATA Connectors
M2N-VM/S
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXP4
RSATA_RXN4
GND
SATA4
GND
RSAT
A_TXP3
RSAT
A_TXN3
GND
RSAT
A_RXP3
RSAT
A_RXN3
GND
SATA3
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA2
GND
RSAT
A_TXP1
RSATA_TXN1
GND
RSAT
A_RXP1
RSATA_RXN1
GND
SATA1
