Pegatron M2N-VM/S 1-31

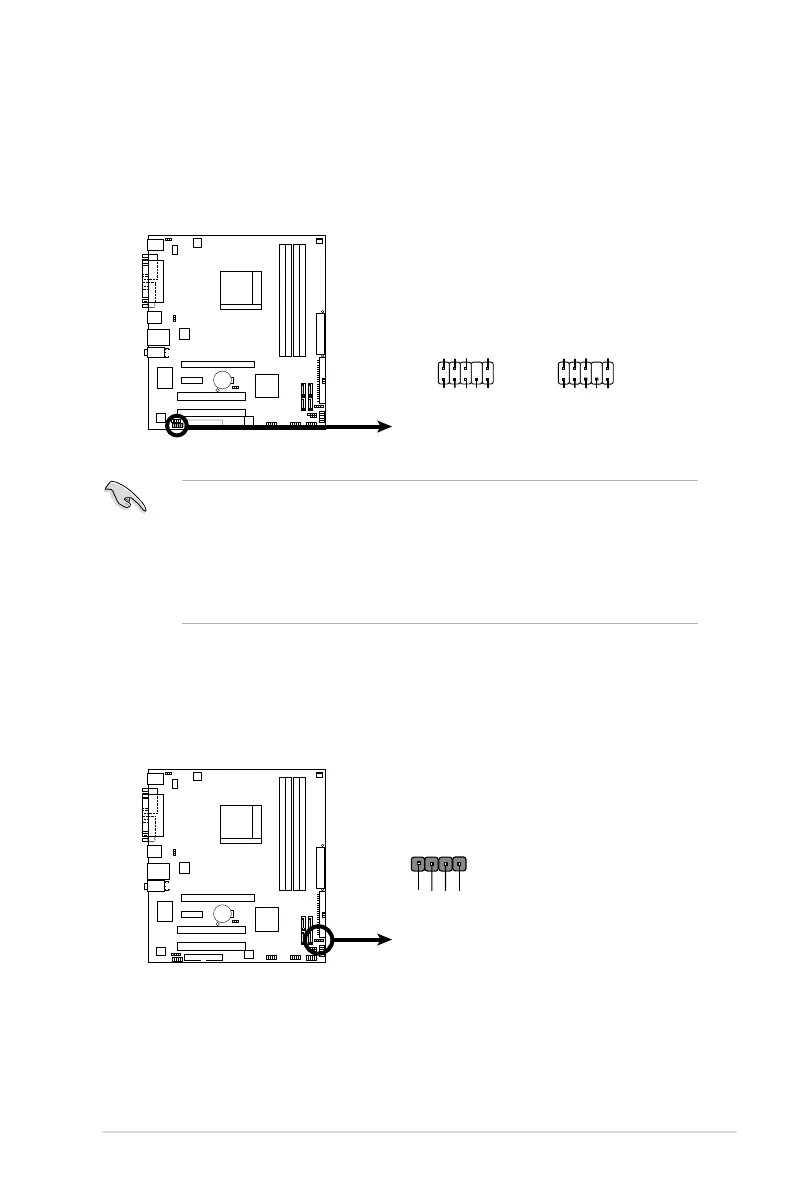

9. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either High Denition Audio or AC`97 audio standard. Connect one
end of the front panel audio I/O module cable to this connector.
• We recommend that you connect a high-denition front panel audio module
to this connector to avail of the motherboard high-denition audio capability.
• If you want to connect a high-denition front panel audio module to this
connector, ensure that the Front Panel Type item in the BIOS is set to [HD
Audio]; if you want to connect an AC`97 front panel audio module to this
connector, set the item to [AC97]. See page 2-25 for details.
10. Speaker connector (4-pin SPEAKER)
This connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
M2N-VM/S Front Panel Audio Connector
M2N-VM/S
HP_HD
MIC2_L
HP_R
HP_L
MIC2_JD
Jack_Sense
MIC2_R
PRESENSE# AGND
AAFP
Legacy AC’97-compliant
pin definition
NC
MIC2_L
Line out_R
Line out_L
NC
NC
MIC2_R
NC AGND
Azalia-compliant
pin definition
M2N-VM/S Speaker Out Connector
M2N-VM/S
SPEAKER
+5V
GND GND
Speaker Out
1
