Pella 6000 - Installing Panels and Final Frame Securing; Glass Panel and Retainer Strip Installation; Mounting Frame Securing and Strap Removal

Right
Hinge
Illustrated
Left Hinge
Illustration
Remove and
Discard
Set
in
Place
P
Horizontal
Retainer
Strip
Install
Both
Top
and
Bottom
Install horizontal strips
first (top then bottom)
Vertical
Retainer
Strip
Install Both
Left and
Right
Continued on Page 7
Continued
from
Page 5
16
17
15
6

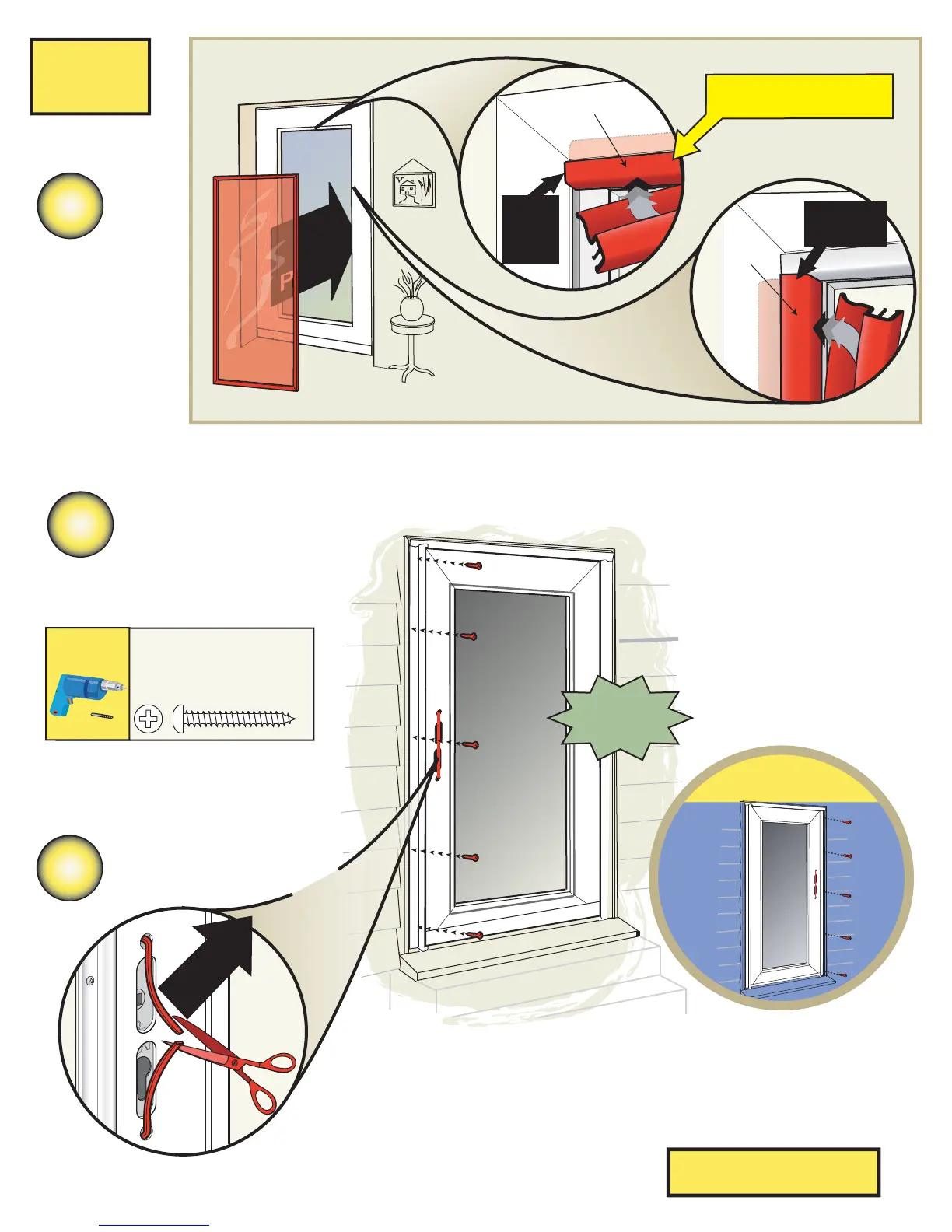

Predrill the five hole locations.
Secure with screws.
Cut shipping strap.
Remove “Do not cut” label.
Install glass
panel.
IMPORTANT:
Hold glass in
place while
installing retainer
strips.
Secure with
retaining strips.
“Mounting Frame Screw Bag”
unpainted
#6 x 1” Pan Head
Qty.
5
Drill 3/32”
Pilot Holes
