PV 20a
Burner

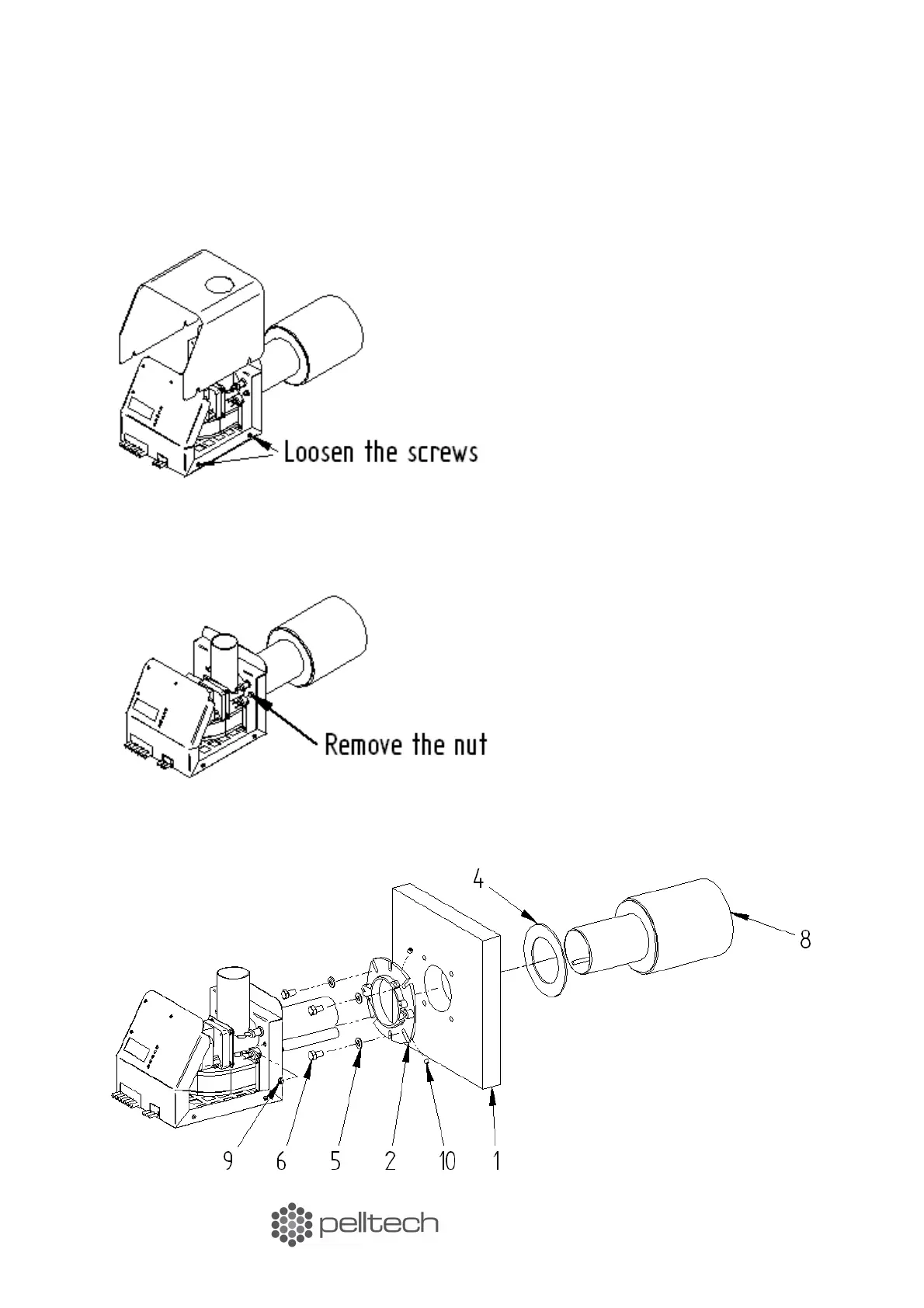

In order to install the burner properly, you must go through the following steps:
1. Remove the cover of the burner by loosening 4 screws of the cover. There is no need to remove
the screws.
2. Remove the burning chamber from the burner by releasing the M6 nut that connects the halves of
the burner. Separate the halves of the burner by pulling the burning camber and slightly rotating it at
the same time.
3. Fix the flange (2) of the burner to the door of the boiler (1). Make sure that the opening of the
flange and the opening of the boiler door are aligned.
10 www.pelltech.eu
