PV 20a

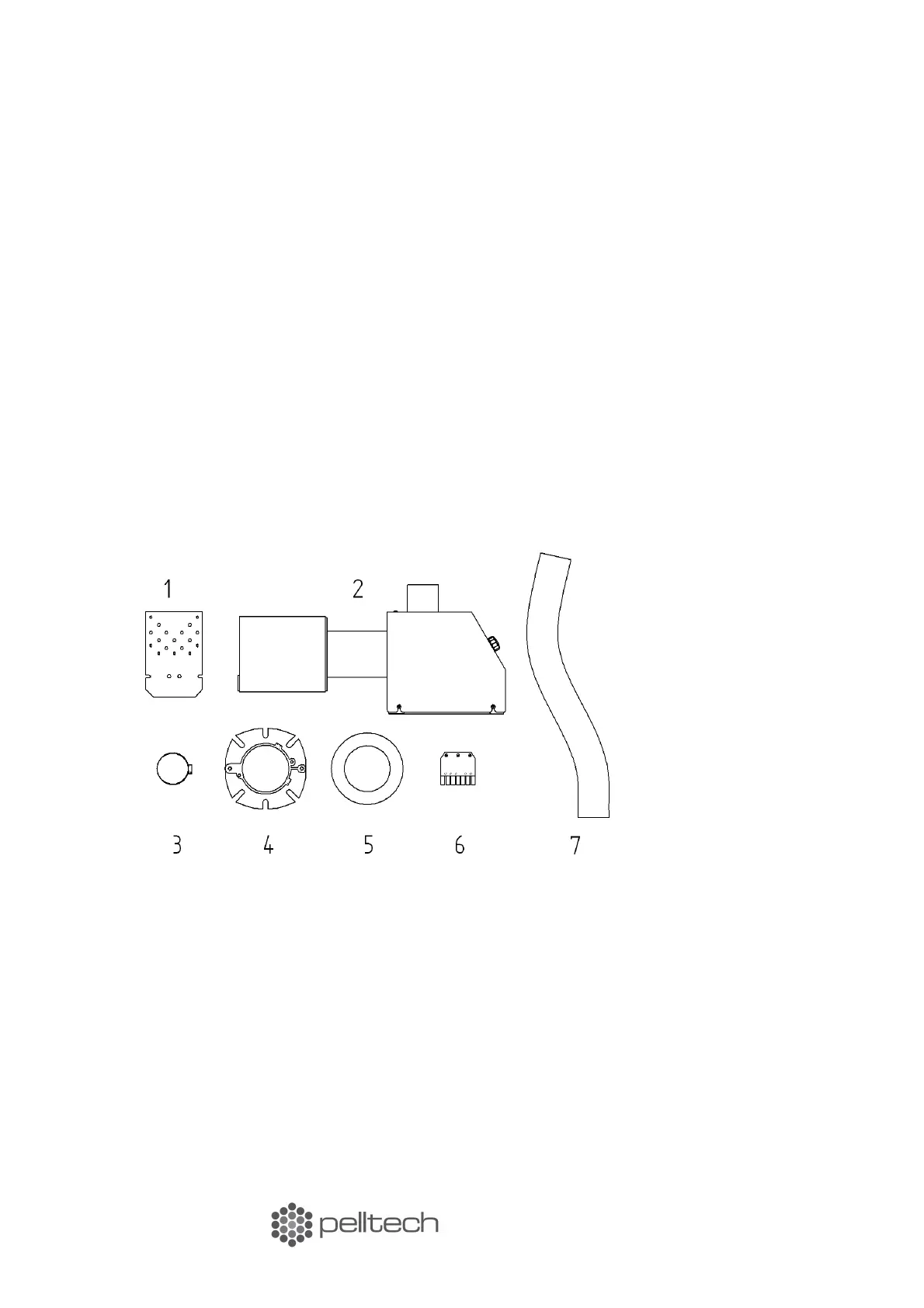

Package content
The burner is shipped with following components included:
1. Grate
2. Burner
3. Brackets for hose (2x)
4. Flange
5. Ceramic seal
6. 7-pole boiler connector
7. Hose
8. User manual
Description
PV 20a is a pellet burner that is intended to be used with 6 or 8mm wooden pellets. You cannot use
any other fuel to run this burner.
The unique construction of PV 20a allows it to be used with different boilers: liquid fuel, solid fuel
and universal boilers. The PV 20a burner is connected to the boiler with a 90 mm flange (similar to oil
burners).
The burner is equipped with a safety thermostat, a melting chute, temperature sensor and auxiliary
battery for protection against back-burning.
4 www.pelltech.eu
