PV 20a
Burner main components are shown on Figure 1
1. Burning chamber
2. Feed screw
3. Safety cut off thermostat
4. Mains transformer
5. User interface joystick
6. User interface screen
7. Auxiliary battery
8. Connectors
9. Feed screw motor
10. Fan
11. Fuel level sensor
12. Mounting nut
13. Flame detector
14. Igniter
15. Grate

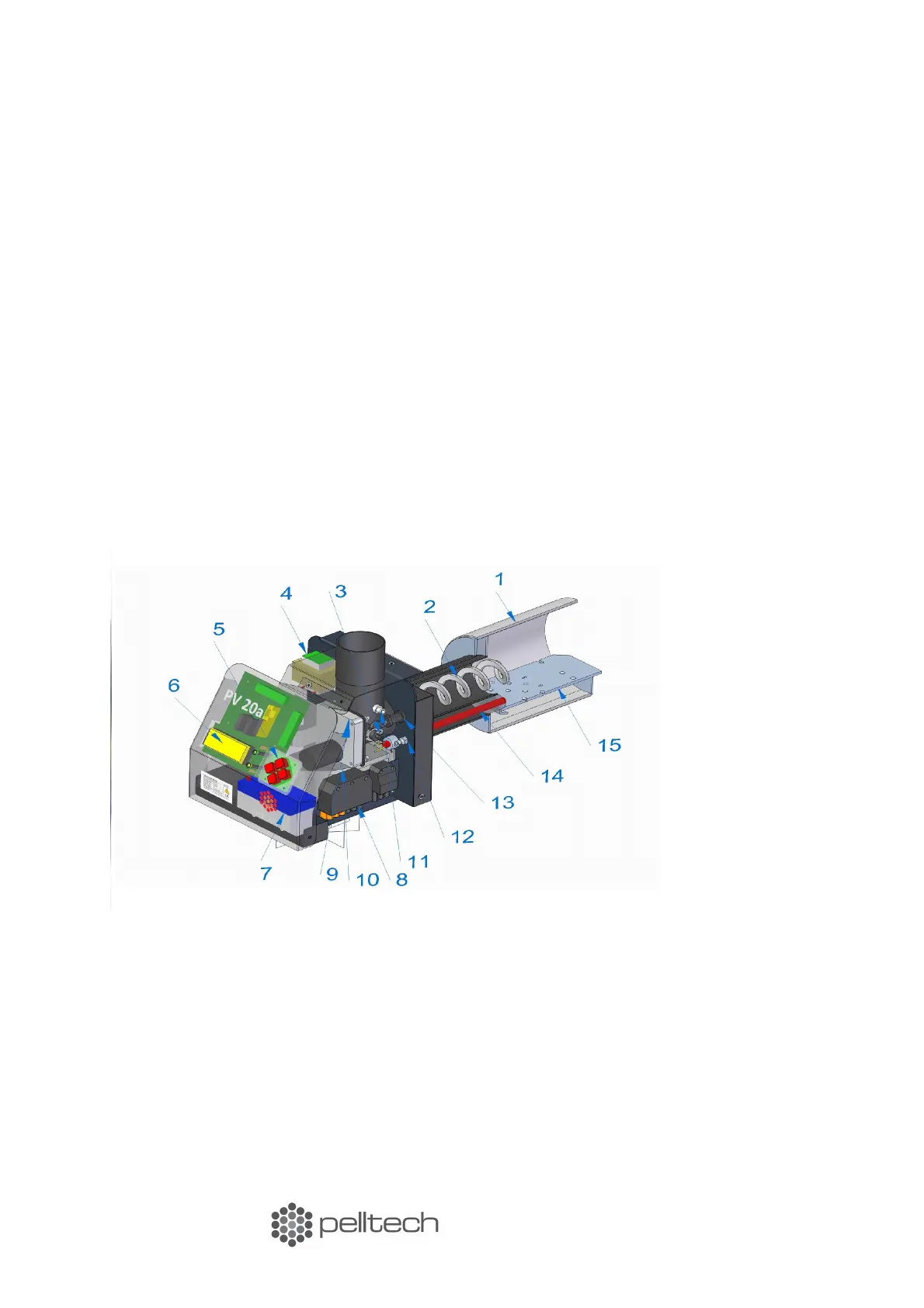

Figure 1 Burner main components
