PV 20a

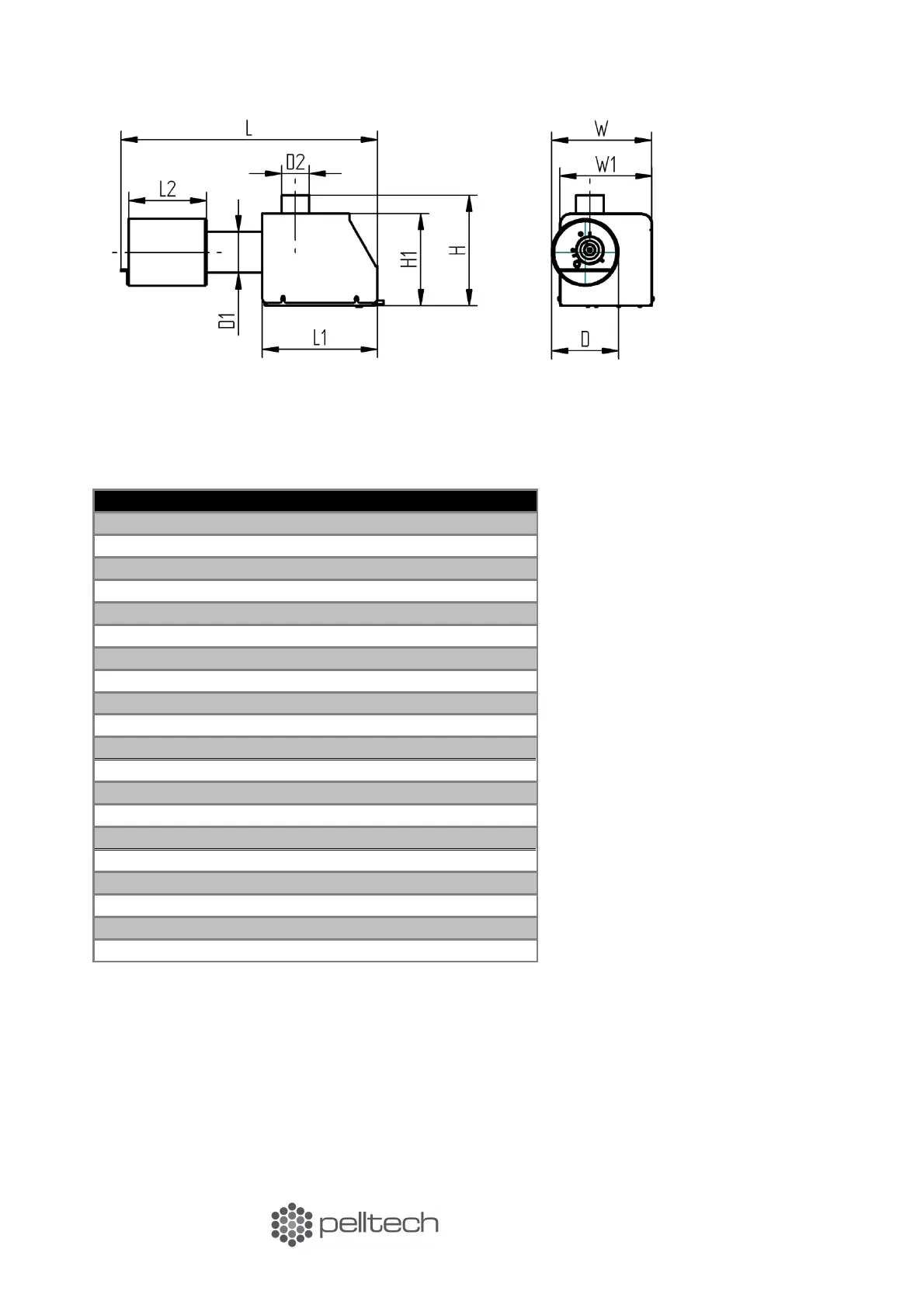

Figure 2 Dimensions
Table 1 Specification
Unit PV 20a
L total length mm 530
L1 burner body length mm 230
L2 burning chamber length mm 170
⌀D burning chamber diameter mm 146
⌀D1 burning chamber neck diameter mm 88.9
⌀D2 internal feeder inlet diameter mm 60
H total height mm 250
H1 burner housing height mm 200
W total width mm 220
W1 burner housing width mm 204
Mass kg 11.2
Supply voltage VAC 220-240
Power max W 570
Power average W 25 - 40
Power at standby W 7
Noise dB 52
Emission class
1
- 5
Operating temperature C
o
0-60
Nominal heat input kW 20
Min heat input kW 10
1. According to EN 15270
