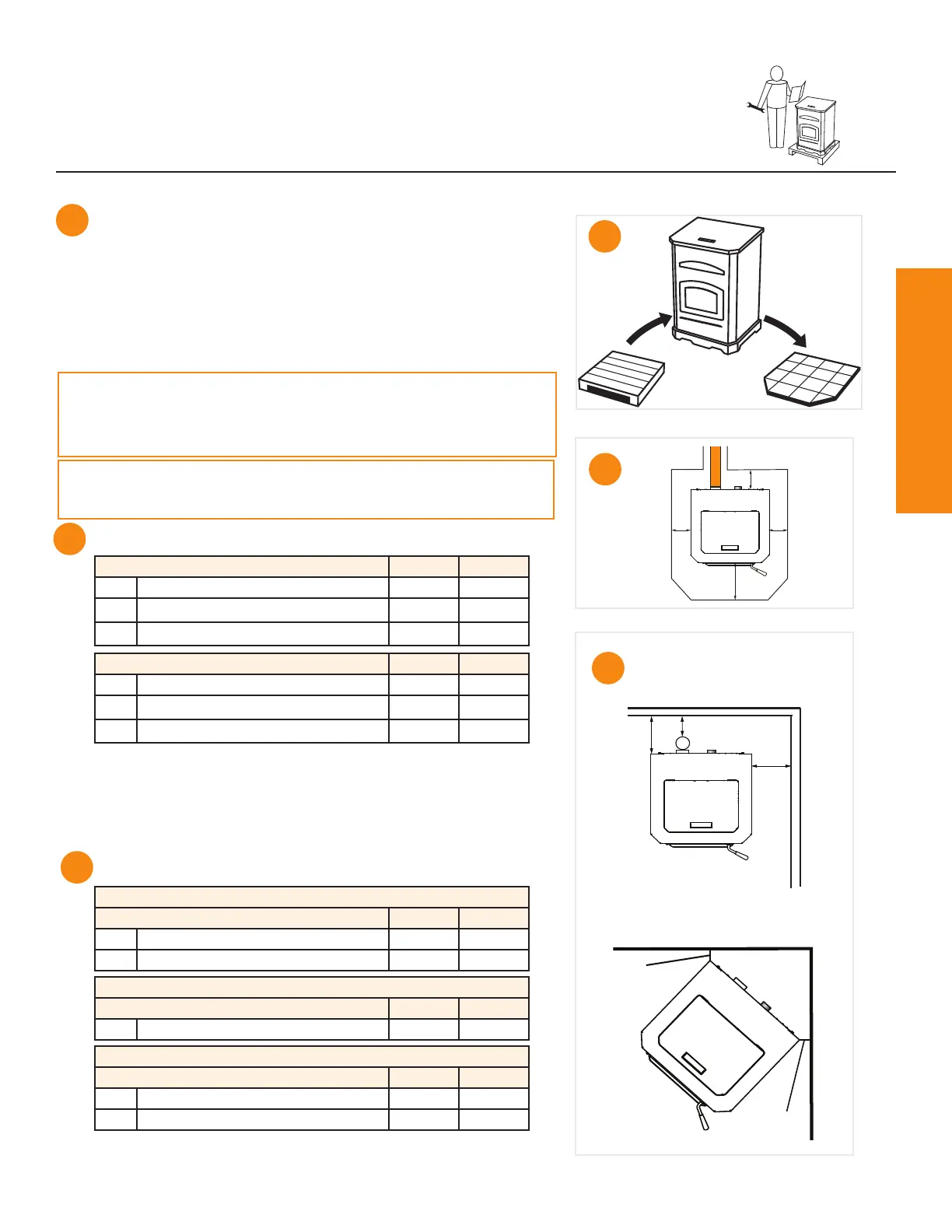

Installing Your Stove
Placing Your Stove
It is necessary to install EMBER PROTECTION; a Type
I oor protector for this Stove.
The Floor protector must be non-combustible material, extend-
ing beneath Stove with a minimum of 6 inches (152mm) in
front of glass and 6 inches (152mm) to both sides of the fuel
loading door. Open the door and measure 6 inches (152mm)
from the side edge of the opening in the face of the Stove.
Installing Your Stove
1
1
2
Notice: Be careful to protect the bottom of the Stove and
oor surfaces when moving the Stove. Bottom edges of
Stove are sharp and can scratch surfaces.
Notice: Clearances may only be reduced by means
approved by the regulatory authority having jurisdiction.
Conrm required clearances to combustibles:
3
Vertical Installations (Interior Flue)
Straight back against wall Inches mm
D Back wall to pellet pipe 3 254
E Side wall to Stove 13 330
USA Hearth Pad Requirements Inches mm
A Sides 2 51
B Back 2 51
C Front 6 152
Horizontal Installations
Straight back against wall Inches mm
G Back wall to Stove 2 51
E Side wall to Stove 13 330
Corner Installation
Straight back against wall Inches mm
F Walls to Stove 3 76
Non-combustible oor protection extending beneath the ue pipe is required
with horizontal venting or under the top vent adapter with vertical installation.
*Non-combustible oor protection must extend 2 inches (51mm) beneath the
ue pipe when installed horizontal venting or under the top vent adapter with
vertical installation. CANADA REQUIRED, USA RECOMMENDED.
Canada Hearth Pad Requirements Inches mm
A Sides 8 203
B Back 2 51
C Front 6 152
Hearth pad minimum requirements:
2
3
B*
A
C
A
F
F
G
E
D
