gate indicator
alarm
Press the softkey Output to open the submenu below.

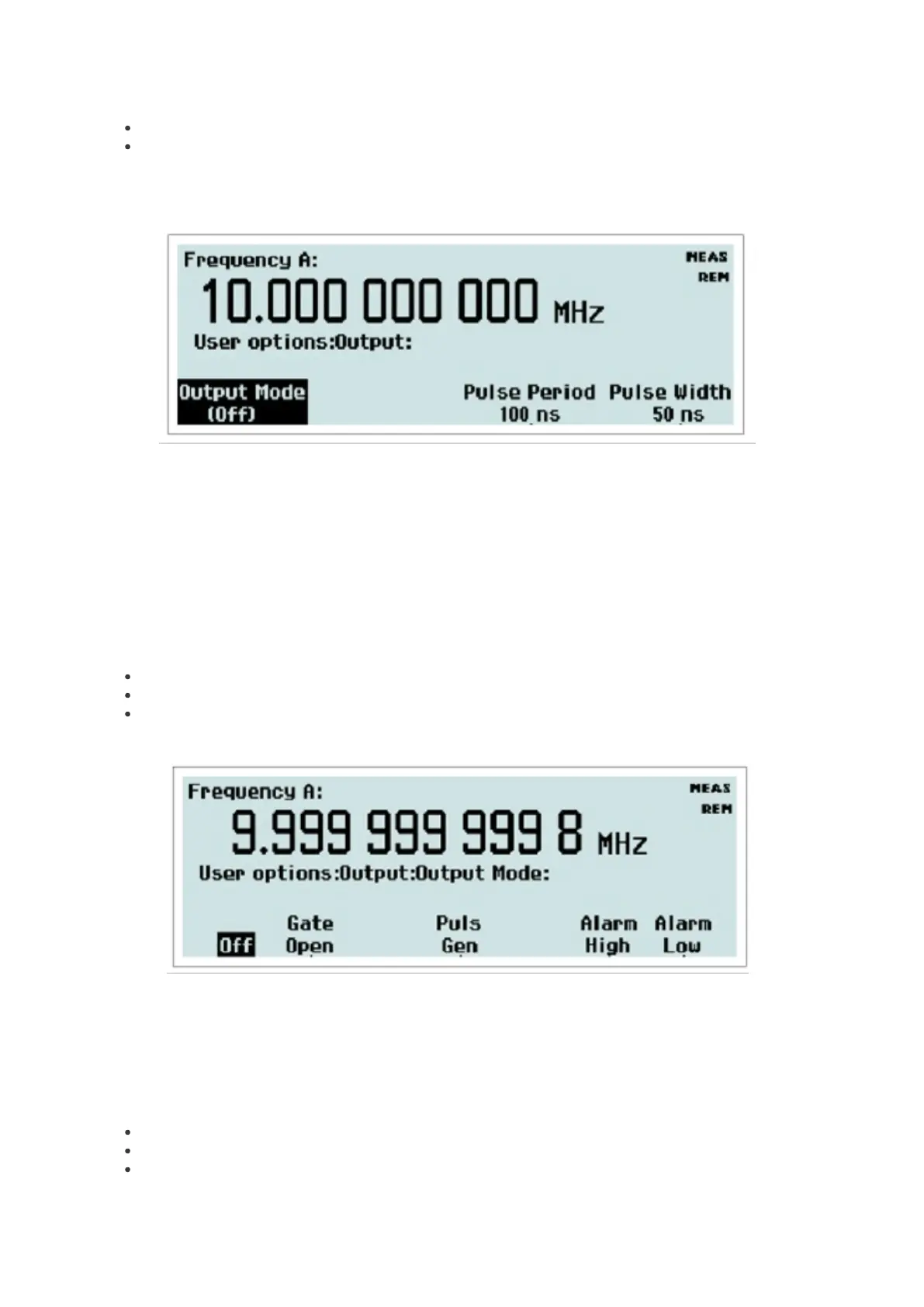

Fig. 2-42 Selecting output mode and pulse parameters.
Off is the default mode and inhibits all activity on the output connector.
The pulse generator parameters Period and Width can be entered by first pressing the corresponding softkeys, then
setting the numerical values as usual. By placing the cursor over the parameter, you can also set the values directly in
1-2-5 steps with the UP/DOWN arrow keys.
Press Output Mode to enter the mode selection menu below:
Gate Open indicates to external equipment when a measurement is in progress.
Pulse Generator activates a continuous pulse train having the parameters entered in the previous menu.
Alarm can be set to be active low or active high. The MATH/LIM menu is used for setting up the behavior and
the numerical limits that trigger the alarm.
Fig 2-43 Output Mode selection menu.
The amplitude is fixed at TTL levels into 50 Ω irrespective of the output mode.
About
Here you can find information on:
model
serial number
