Pentair 255 - Page 19

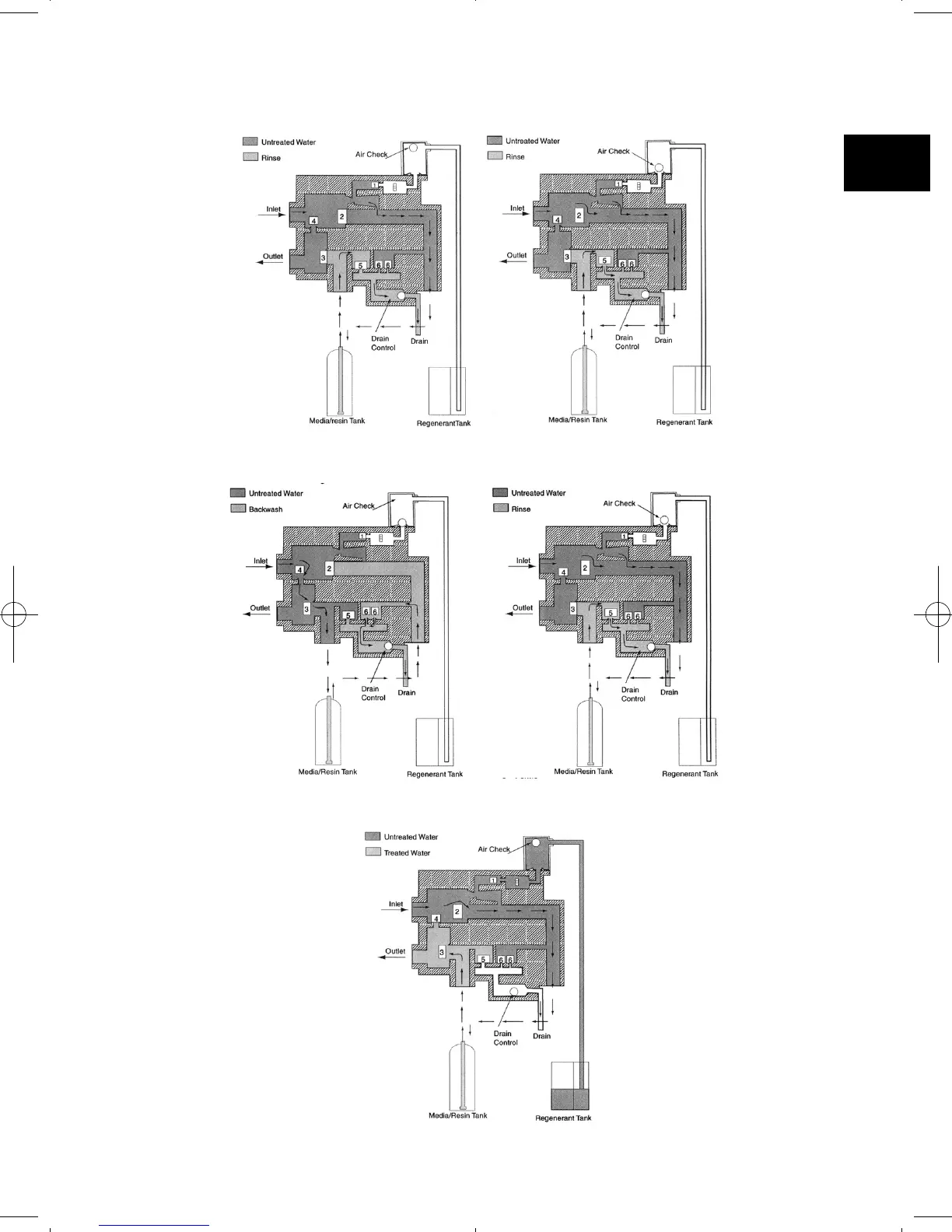

C4 System Pause position
(repressurize)
C5 Fast Rinse 1 position
C6 Backwash 2 position C7 Fast Rinse 2 position
C8 Refill
Valve Nr
1 - Closed
2 - Closed
3 - Closed
4 - Opened
5 - Closed
6 - Closed
Valve Nr
1 - Closed
2 - Opened
3 - Closed
4 - Opened
5 - Opened
6 - Closed
Valve Nr
1 - Closed
2 - Closed
3 - Opened
4 - Opened
5 - Closed
6 - Opened
Valve Nr
1 - Closed
2 - Opened
3 - Closed
4 - Opened
5 - Opened
6 - Closed
Valve Nr
1 - Opened
2 - Opened
3 - Opened
4 - Closed
5 - Closed
6 - Closed
19
En
