Key Part HNAS-75 HNAS-100
No. Description Qty. 3/4 HP 1 HP
1 Motor 1 J218-596PKG J218-601PKG
#§2 Water Slinger 1 17351-0009 17351-0009
3 Seal Plate 1 L3-10 L3-10
#§4 Seal Plate Gasket 1 C20-21 C20-21
#§5 Shaft Seal 1 U109-6A U109-6A
#6 Impeller 1 J105-85P J105-22PA
#7 Diffuser 1 L1-47P L1-23P
7A 8-32x3/4” Rd. Hd. Capscrew 3 U30-489SS U30-489SS
#§8 Diffuser Ring 1 L21-1 L21-1
9 Quick Connect – Straight 1 U11-217P U11-217P
10 Pressure Gauge 1 U239-2 U239-2
11 Control Valve Assembly 1 L262-5PS L262-5PS
12 Pump Body 1 L76-49 L76-49
13 Pipe Plug 1 U78-56ZPS U78-56ZPS
14 Drain Plug 1 U78-941ZPV U78-941ZPV
15 Base 1 J104-9C J104-9C
15A Motor Pad 1 C35-5 C35-5
16 3/8-16x1-1/2” Capscrew 2 † †
17 Switch Tube 1 U37-672P U37-677P
18 Quick Connect – Elbow 1 U11-218P U11-218P
19 Pressure Switch 1 U217-1216 U217-1216
20 Lock Nut 1 U36-112ZP U36-112ZP
21 Connector 1 L43-5C L43-5C
22 3/8-16x1-1/4” Capscrew 2 † †

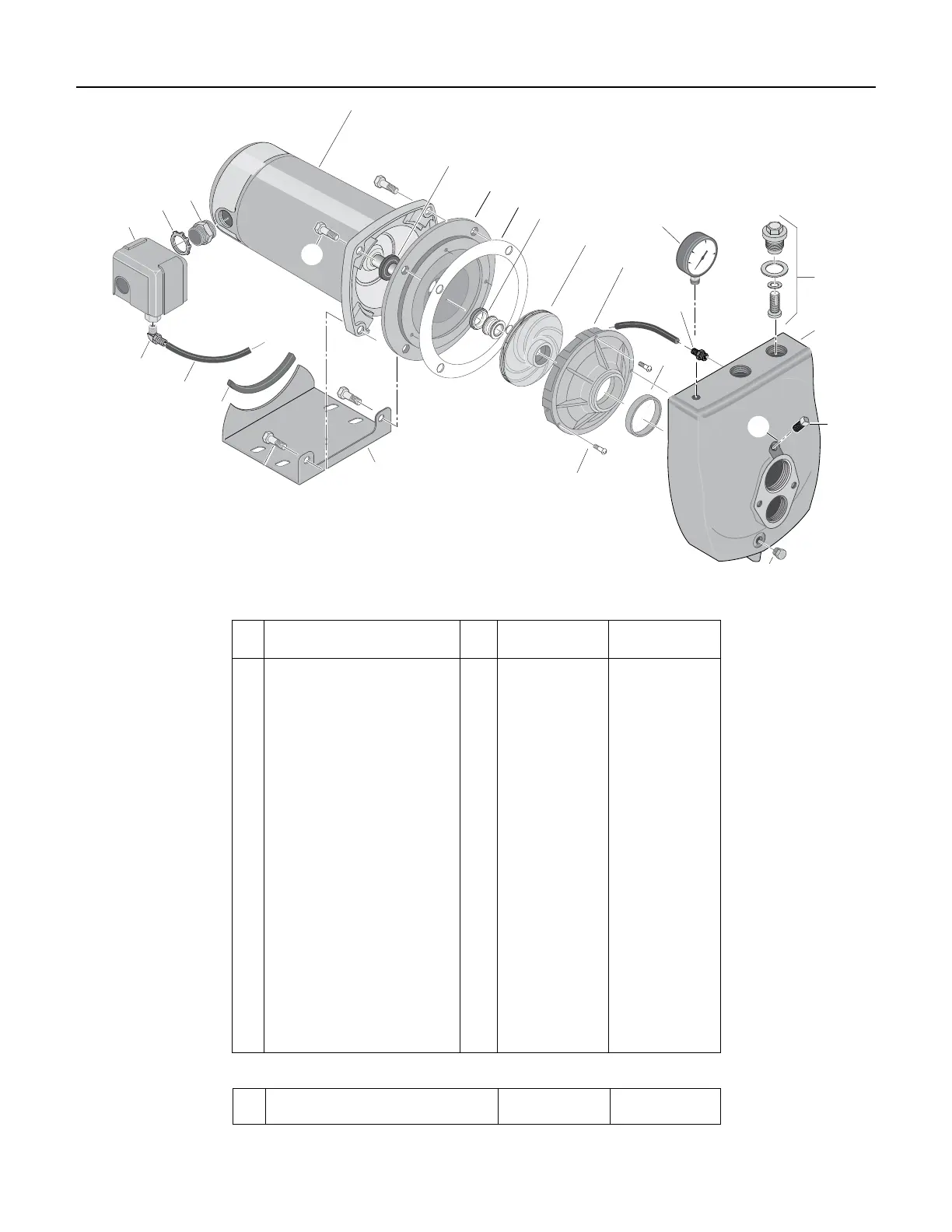

Repair Parts – Cast Iron Jet Pumps
SERVICE KITS
§ Seal and Gasket Kit PP1551 PP1551
# Overhaul Kit PP1566 PP1564
NOTE: § Included in Seal and Gasket Kit.
# Included in Overhaul Kit.
† Purchase locally.
