Maintenance 10
10. Hold motor shaft with 7/16" open end wrench on
shaft flats and screw impeller onto shaft. Be sure you
do not touch capacitor terminals with body or any
metal object. Tightening impeller will automatically
locate seal in correct position.
11. Replace impeller screw (if used) by turning
counterclockwise (left-hand thread) into end of shaft.
12. Remount diffuser on seal plate with two screws.
13. Follow instructions under “Pump Reassembly”.
PUMP REASSEMBLY
1. Clean gasket surfaces on pump body and seal plate;
install new gasket.
2. Slide motor/seal plate assembly into pump body.
Secure with capscrews.
3. Replace base mounting bolts.
4. Replace motor wiring; close draincock.
5. Prime pump according to instructions. See
“Opera tion.”
6. Check for leaks.
20
100
80
60
40

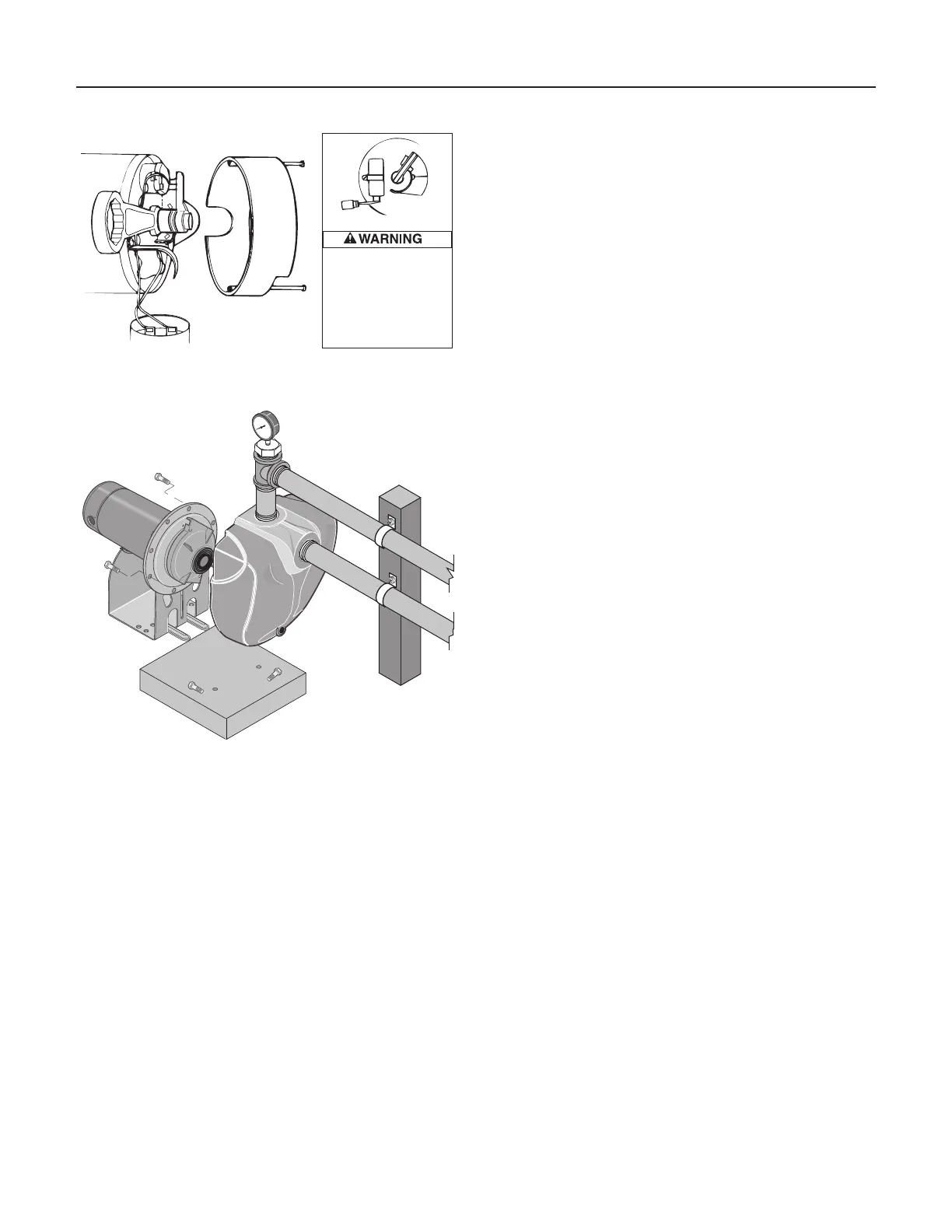

Figure 21: Assemble Pump
Figure 20: Hold Shaft
To avoid electrical
shock hazard, use
insulated-handle
screwdriver to short
capacitor terminals
as shown.
