Pentair CLEAN AND CLEAR PLUS User Manual

12
CLEAN AND CLEAR
®
PLUS Cartridge Filter Installation and User’s Guide
NOTE: Actual system flow will depend on plumbing size and other system components.
* Required Clearance to remove filter elements and lid.
FLOW (gpm)
PRESSURE DROP vs FLOW
PRESSURE DROP (psi)
0
2
4
6
8
10
12
020406080 100 120 140 160
Clean and Clear
®
Plus Cartridge Filters
Recommended Flow Rate
Model #
Filter Area
(Sq. Ft.)
Vertical
Clearance*
Flow Rate
(GPM)
Turnover Capacity (Gallons)
6 Hours 8 Hours 12 Hours
CCP240 240 56 in. 90 32,400 43,200 64,800
CCP320 320 62 in. 120 43,200 57,600 86,400
CCP420 420 68 in. 150 54,000 72,000 108,000
CCP520 520 74 in. 150 54,000 72,000 108,000

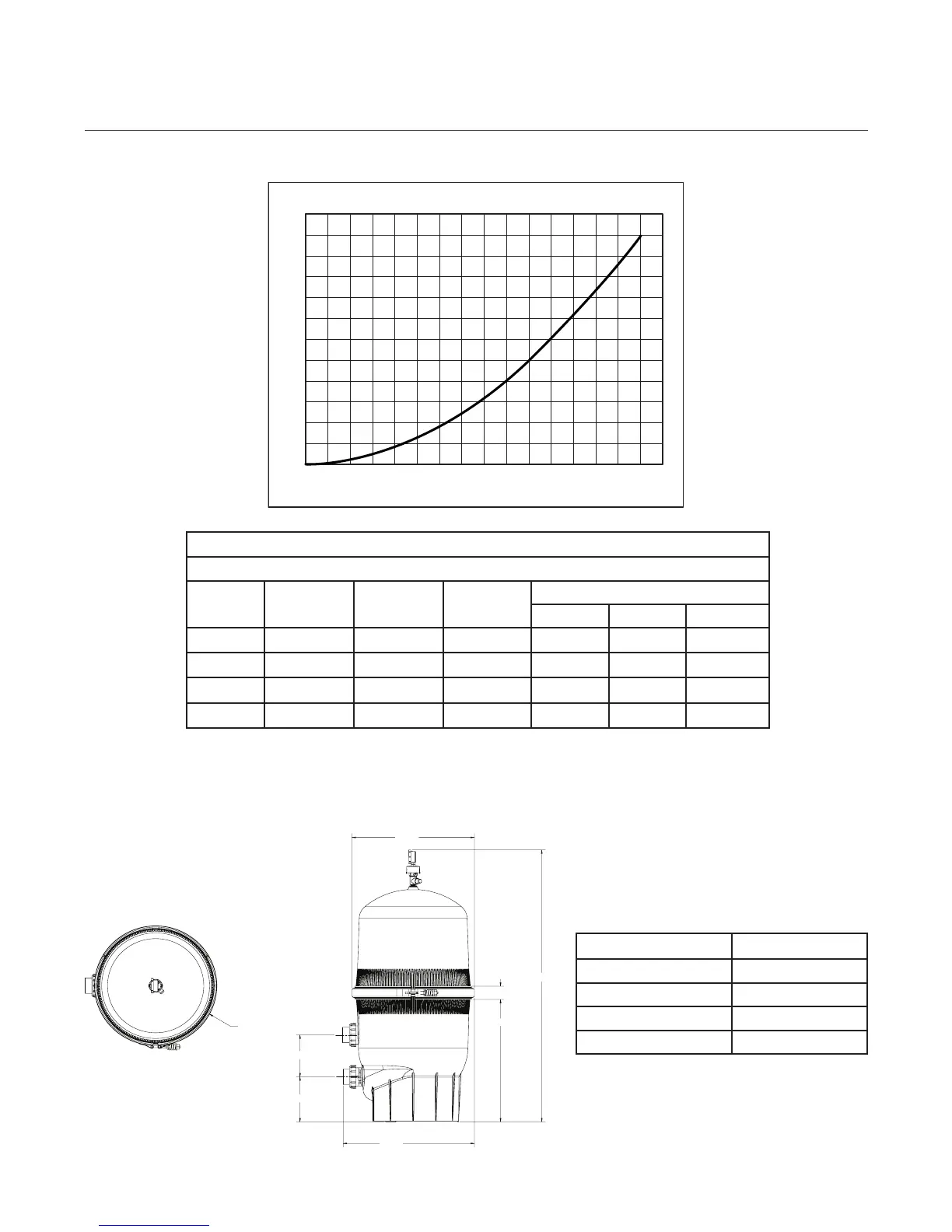

TECHNICAL DATA
Flow Rates
Dimensional Drawings
A
7.49”
8.05”
21.45”
22.98”
21.9”
2.4”
R 10.73”
MODEL DIM "A"
CCP 240 37"
CCP 320 43"
CCP 420 49"
CCP 520 56"

Pentair CLEAN AND CLEAR PLUS Specifications

General

Filter Type	Cartridge
Flow Rate	150 GPM
Cartridge Quantity	4
Max Pressure	50 psi
Material	Fiberglass-reinforced composite
Inlet/Outlet Size	2 inches
Cartridge Material	Polyester
Filter Area	Varies by model (see product documentation)
Dimensions	Varies by model (see product documentation)
Weight	Varies by model (see product documentation)
