Pentair COLORVISION User Manual

COLORVISION Light Installation and User’s Guide
2
Powering on the ColorVision Light
When the ColorVision light is powered on, the previously selected color is
displayed, unless the HOLD or RECALL feature was previously enabled.
Note: If power to the light is off for more than five (5) seconds, the last color show
mode or fixed color that was saved will be displayed.
Using an External Transformer for Multiple ColorVision
™
Lights
When using multiple ColorVision 12 VAC lights on a 100 Watt transformer, it is
recommended that no more than three (3) ColorVision lights be used. It is also
recommended not to exceed 150 feet of total cable run between the transformer and lights.
Note: For long cable lengths, set transformer to 14 VAC, and use only ColorVision lights

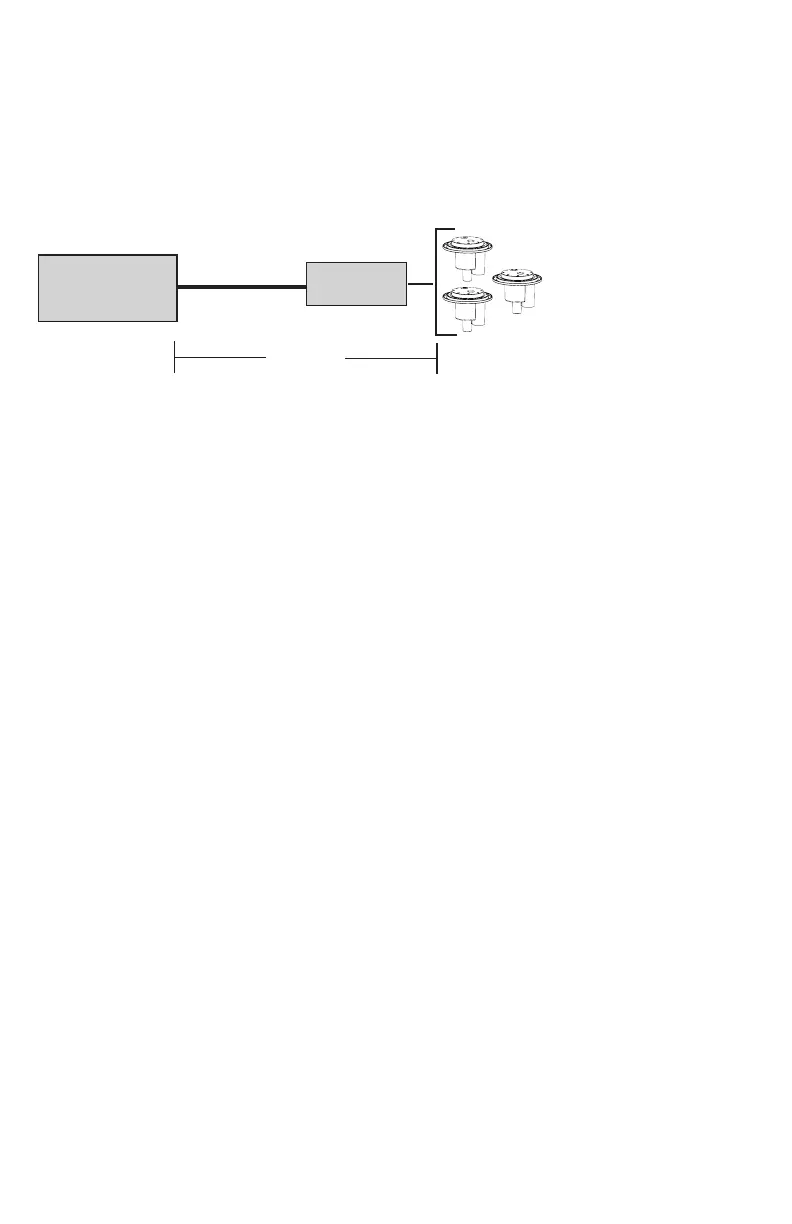

with the 150” cord option, see diagram below.
Note: If a longer cable
run is necessary, it is
recommended that
separate 100 Watt 12 VAC
transformers be used for
each light with no more
than 150 feet of total
cable run between the
transformer and lights.
Maximum wattage when using multiple ColorVision Light and
IntelliBrite
®
Color LED lights (using a 300 Watt Transformer)
IMPORTANT! When using multiple 12 VAC ColorVision Light, IntelliBrite Light and
IntelliBrite Landscape Lights, the total allowable light wattage is 300 Watts maximum.
A transformer should only be loaded to 80% of its capability. For example, a 300 watt
transformer should have a maximum of 240 watts attached to it. ColorVision and
IntelliBrite light wattages are as follows:
• One ColorVision light is 15 Watts maximum
• One IntelliBrite Color LED Pool Light is 30 Watts maximum
• One IntelliBrite Color LED Spa Light is 18 Watts maximum
• One IntelliBrite Landscape light is 15 Watts maximum
• One MagicStream
®
Laminar is 16 Watts maximum
• One GloBrite LED Pool light is 15 Watts maximum
• One AmerBrite White LED (500W) pool light is 51 Watts maximum
• One AmerBrite White LED (400W) pool light is 44 Watts maximum
• One AmerBrite White LED (300W) pool light is 36 Watts maximum
• One AmerBrite Color LED pool light is 36 Watts maximum
J Box
12 Gauge
(Minimum)
150 ft.
100 Watt
Transformer

Pentair COLORVISION Specifications

General

Brand	Pentair
Model	COLORVISION
Category	Swimming Pool Lighting
Language	English
