5. Place a cloth on the ground to
protect the lens. Turn the light
over so the lens is resting on
the cloth. Using a ¼” nut driver
and a #3 Phillips screwdriver,
remove the nut uni-tension wire
clamp. Place the nut aside for
reinstallation.
6. Remove the face ring and
wire clamp from the light
housing.
7. With the light resting on
its base, carefully pry off
the gasket to remove the
lens. Set the lens aside for
installation later. Discard the
gasket.
Note: A NEW LENS
GASKET
(P/N 79101601) MUST BE
USED EACH TIME THE
LIGHT IS REASSEMBLED.
See page 18 for
Replacement Kit part
numbers.
REPLACING THE INTELLIBRITE
®
POOL LIGHT CIRCUIT BOARD
ASSEMBLY (IN AN EXISTING POOL) (Continued)

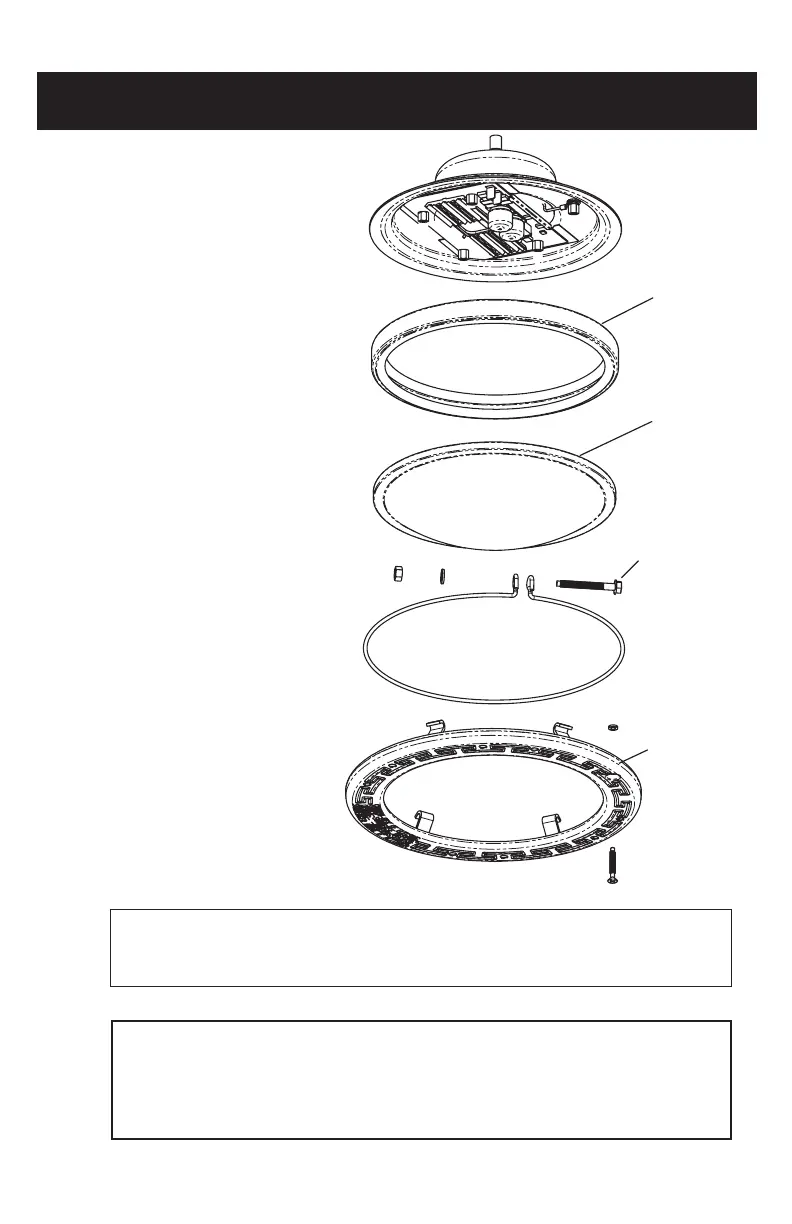

uni-tension
wire clamp:
Remove nut
and screw
Face ring
Lens
Note: Note the current position of the lens at the pilot screw (12 o’clock)
position, before removing it from the fixture. “W” on the lens indicates wide
angle, “N” indicates narrow angle. For more information, see page 17.
Gasket
NOTE: For a pool light (12 V only. No internal step-down transformer)
that has a replacement FUSE ASSEMBLY, continue the procedure on
the next page. If the light does NOT have a replacable fuse assembly,
proceed to page 13.
