Wide and Narrow Angle Lens Adjustment
Wide and Narrow Angle Lens Feature
The IntelliBrite light lens geometry provides a choice of “wide” or “narrow” angle light beam
to suit various size pools. For lights located on either side of the pool, rotate the lens to the
‘wide’ (W) angle position, which will provide a wider angle light beam for greater underwa-
ter coverage and light reflection the width of the pool. For lights located either end of the
pool, rotate the lens to the ‘narrow’ (N) angle light beam position for increased underwater
light intensity and distance. Note: The IntelliBrite light lens ships from the factory in the
‘WIDE’ (W) angle position.

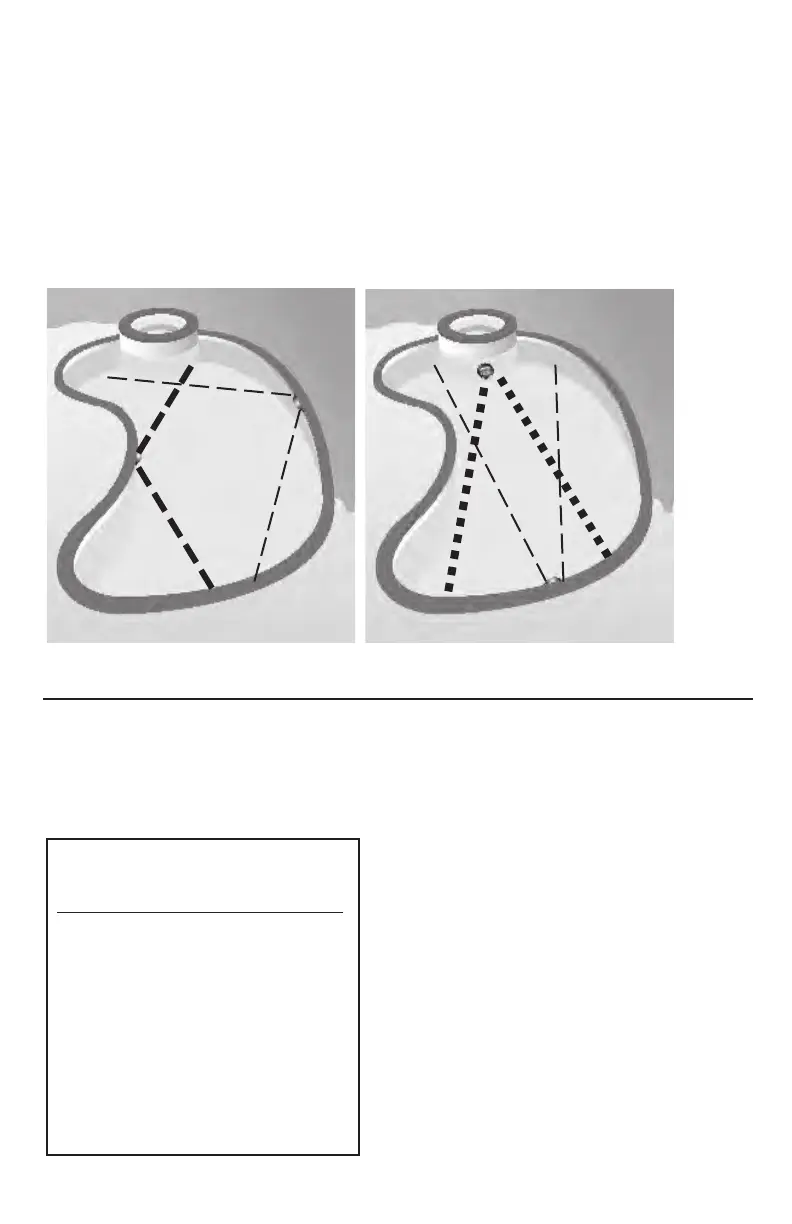

WIDE ANGLE LIGHT BEAM
(FOR SIDES OF POOL)
WIDE
ANGLE
NARROW ANGLE LIGHT BEAM
(FOR ENDS OF POOL)
17
IntelliBrite
®
5G Pool Light Assembly Replacement Kit
Part Numbers
Note: A 120 VAC to 12 VAC external transformer is required for the 12 VAC model
IntelliBrite pool white light. See page 1 for more information.
IntelliBrite 5G Pool Light Assembly
(UL/CAS listing)
Product Voltage Cord Length
Model (feet)
601105 12V 30’
601106 12V 50’
601107 12V 100’
601108 12V 150’
601205 12V 30’
601206 12V 50’
601207 12V 100’
601208 12V 150’
601300 120V 30’
601305 12V 30’
601306 12V 50’
601307 12V 100’
601308 12V 150’
