INTELLIBRITE
®
5G Pool and Spa Lights Installation and User’s Guide
6
2
Model/Voltage/Cord (Ft.)
601100/120V/30’
601101/120V/50’
601102/120V/100’
601103/120V/150’
601104/120V/250’
601105/12V/30’
601106/12V/50’
601107/12V/100’
601108/12V/150’
601200/120V/30’
601201/120V/50’
601202/120V/100’
601203/120V/150’
601204/120V/250’
601205/12V/30’
601206/12V/50’
601207/12V/100’
601208/12V/150’
601300/120V/30’
601301/120V/50’
601302/120V/100’
601303/120V/150’
601304/120V/250’
601305/12V/30’
601306/12V/50’
601307/12V/100’
601308/12V/150’
IntelliBrite
®
Pool Light Assembly Replacement Kit Part Numbers
Note: A 120 VAC to 12
VAC external transformer
is required for the 12 VAC
model IntelliBrite 5G pool
light. See page 1 for more
information.
5G White Pool Light
(UL/CSA)
1
3
4
5
7
8

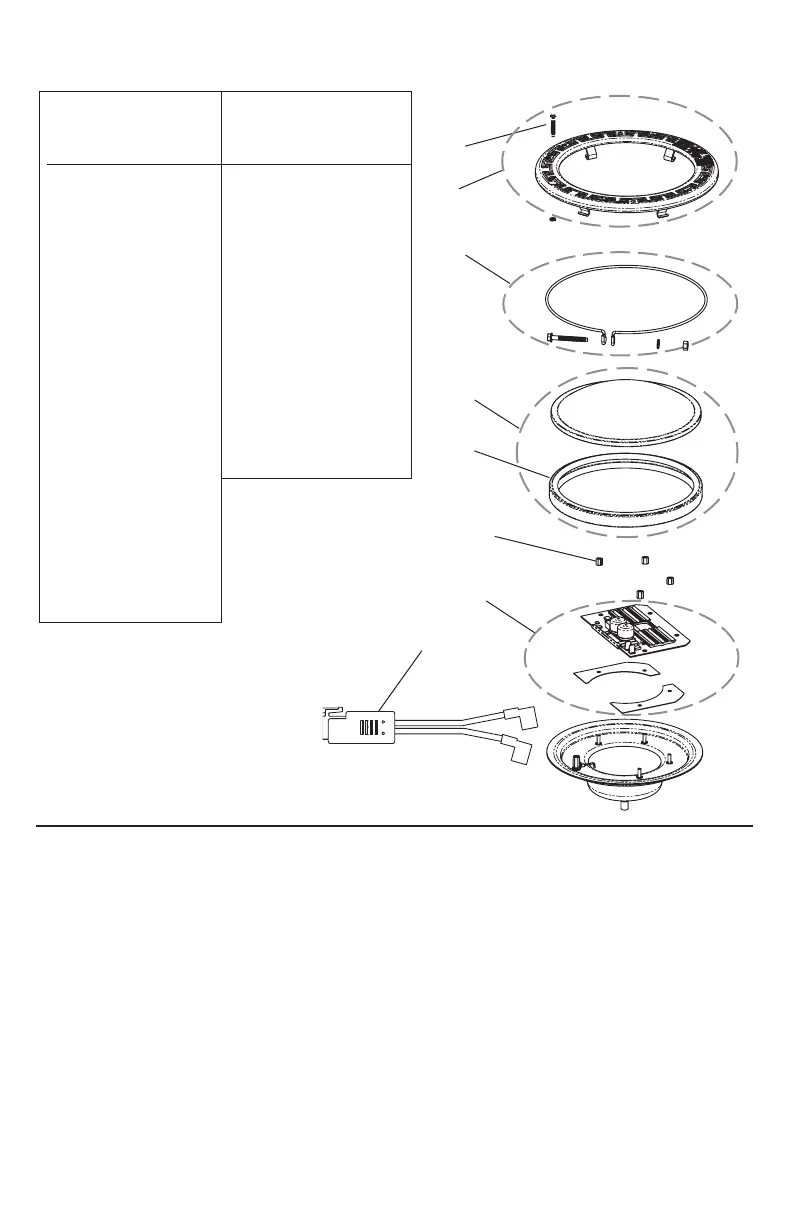

Item No. Kit Part No. Description
2, 3, 5 600095 Face Ring assembly, stainless steel.
- Uni-tension wire clamp assembly.
- Gasket, 8-3/8 in. diameter, silicon.
4, 5 619864Z Replacement Lens Kit.
- Gasket, 8-3/8 in. diameter, off white.
- Lens, IntelliBrite, Pool, 8-3/8 in. diameter, tempered.
3, 5, 7 619875Z (UL) (300W), 619916 Z (400W), 619917Z (500W) - 619818Z (color)
Replacement kit includes:
Circuit Board, Thermal Strips (2x).
- Uni-tension wire clamp assembly.
- Gasket, 8-3/8 in. silicon diameter, off white.
1 79104800 Pilot screw, with captive gum washer.
5 79101601 Gasket, 8-3/8 in. diameter, silicone.
8 620276 Fuse Harness Kit (For 12 V lights only)
Note: The 120 VAC IntelliBrite pool light has an integrated 12 VAC transformer.
18
Model/Voltage/Cord (Ft.)
601000/120V/30’ UL
601001/120V/50’ UL
601002/120V/100’ UL
601003/120V/150’ UL
601004/120V/250’ UL
601010/120V/30’ UL
601011/12V/50’ UL
601012/12V/100’ UL
601013/12V/150’ UL
602000/120V/30’ CSA
602001/120V/50’ CSA
602002/120V/100’ CSA
602003/120V/150’ CSA
602004/120V/250’ CSA
602010/12V/30’ CSA
602011/12V/50’ CSA
602012/12V/100’ CSA
602020/12V/10’ CE
5G Color Pool Light
(UL/CSA)
To Next Page
