INTELLIBRITE
®
5G Pool and Spa Lights Installation and User’s Guide
INTELLIBRITE
®
5G Pool and Spa Lights Installation and User’s Guide
IntelliBrite
®
5G Pool and Spa Lights Overview
Operating Pool and Spa Lights Using a Wall Switch (12 VAC)
IntelliBrite 5G pool and spa lights can be manually controlled using a standard wall-mount
light switch. Multiple IntelliBrite lights can be connected via a junction box to a single
switch so that all lights can be switched on and off together. IntelliBrite lights can also be
automatically controlled via Pentair IntelliTouch
®
, EasyTouch
®
and SunTouch
®
Control
Systems. Note: Multiple IntelliBrite 5G pool/spa lights can also be controlled using
the IntelliBrite Controller, for more information see page 2.

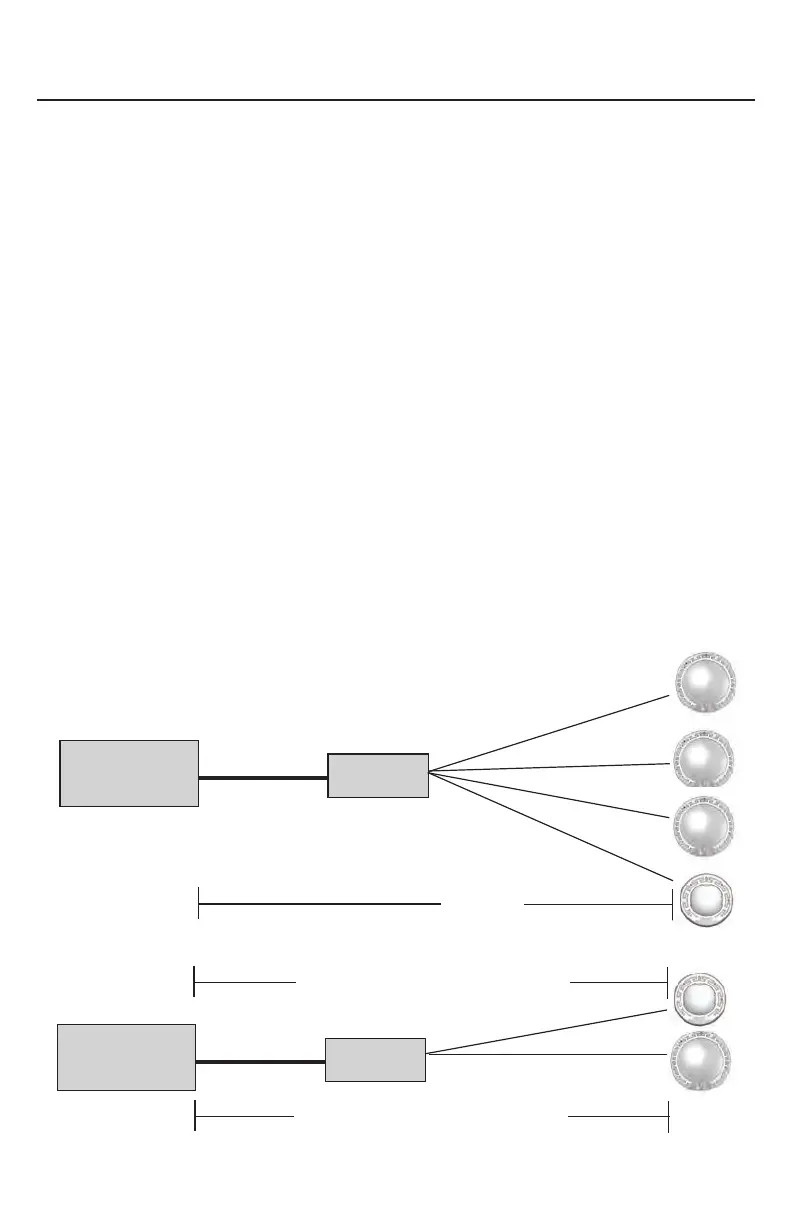

Using an External Transformer for Multiple IntelliBrite 12 VAC Lights
When using multiple IntelliBrite 12 VAC lights on a 300 Watt transformer, it is
recommended that no more than three IntelliBrite pool lights and one (1) IntelliBrite Spa
light be used. It is also recommended not to exceed 100 feet of total cable run between
the transformer and light. Note: For long cable lengths, set transformer to 14 VAC
(see diagrams below).
300 Watt
Transformer
J Box
12 Gauge
(Minimum)
100 ft.
300 Watt
Transformer
J Box
12 Gauge
(minimum)
150 ft. max. for spa light
200 ft. max. for pool light
1
This manual describes how to install the IntelliBrite 5G white and color pool light and the
IntelliBrite 5G white and color spa light.
The IntelliBrite 5G white light provides a brilliant white light for a spectacular effect in
your pool and spa. The IntelliBrite 5G white light lens geometry (pool light only) provides
a choice between two light beam shapes; wider coverage with less intensity, or narrower
coverage with more intensity.
The IntelliBrite 5G color light provides brilliant vivid multi-colors with spectacular effects
for your pool and spa. Choose one of the seven pre-programmed color light shows or
select one of the five fixed colors to create virtually endless range of dramatic underwater
lighting effects for a spectacular effect in your pool and spa.
