INTELLIBRITE
®
5G Pool and Spa Lights Installation and User’s Guide
7. Coil at least four (4) feet of cord around the light fixture
(see Figure 1 on page 6). This allows the light to be serviced
after the pool is filled with water.
8. Connect the three light wires (or two wires) to the corresponding light
circuit wires in the Junction Box. For three wire connection: Connect the
black wire to power, white wire to common, and the green wire to ground.
Secure the Junction Box cover.
9. Install the light assembly into the pool niche. IMPORTANT: Be sure to
insert the TAB on the lower part of the face ring into the niche SLOT
(located on the lower part of the niche). This is important to secure
the lower part of the light assembly onto the niche before tightening
the pilot screw.
10. Carefully tighten the special bronze pilot screw to secure the upper part
of the light assembly onto the niche.
11. Final check for proper IntelliBrite
®
Light operation: Switch on the
main switch or circuit breaker to the system and the switch that operates
the IntelliBrite light itself. The light should illuminate when power is
applied. If not recheck the installation steps starting with Step 1 (page 4).

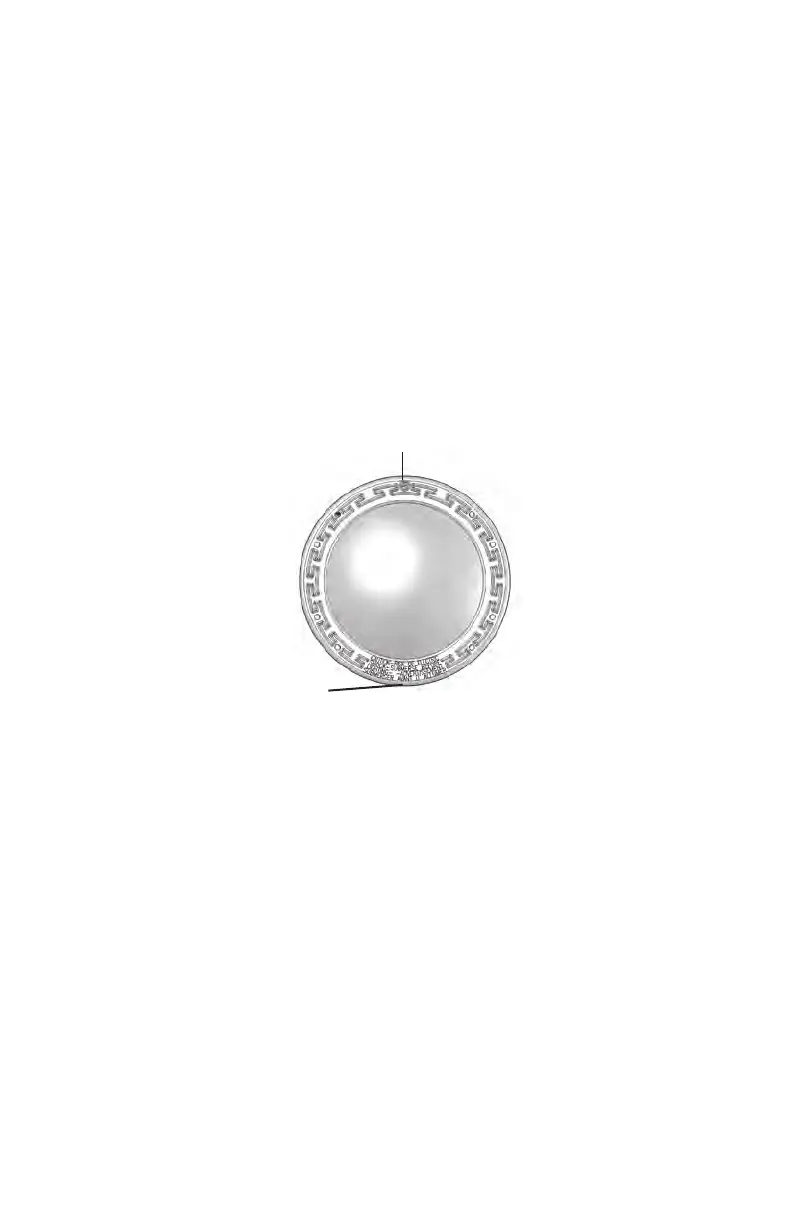

IntelliBrite Pool Light
Face ring TAB
(insert into
niche slot)
16
Pilot screw (bronze)
To Next Page
