4. INSTALL UNI-TENSION CLAMP: With the hook ends of the circular uni-tension
clamp pointing down, spread the clamp and place it in the “U” recesses of the
locking levers. Be sure the hook ends of the clamp are located between the pair
of locking levers as shown below and that the wire clamp is properly engaged
with all of the lock levers.
5. Place a cloth on the ground to protect the lens. Turn the light over so the lens
is resting on the cloth. Be sure the orientation of the wire clamp and the bolt
connection is positioned at 45°.
6. Tighten the bolt and nut until the distance between the ends of the clamp equals
¼-inch or less. Continue on next page.

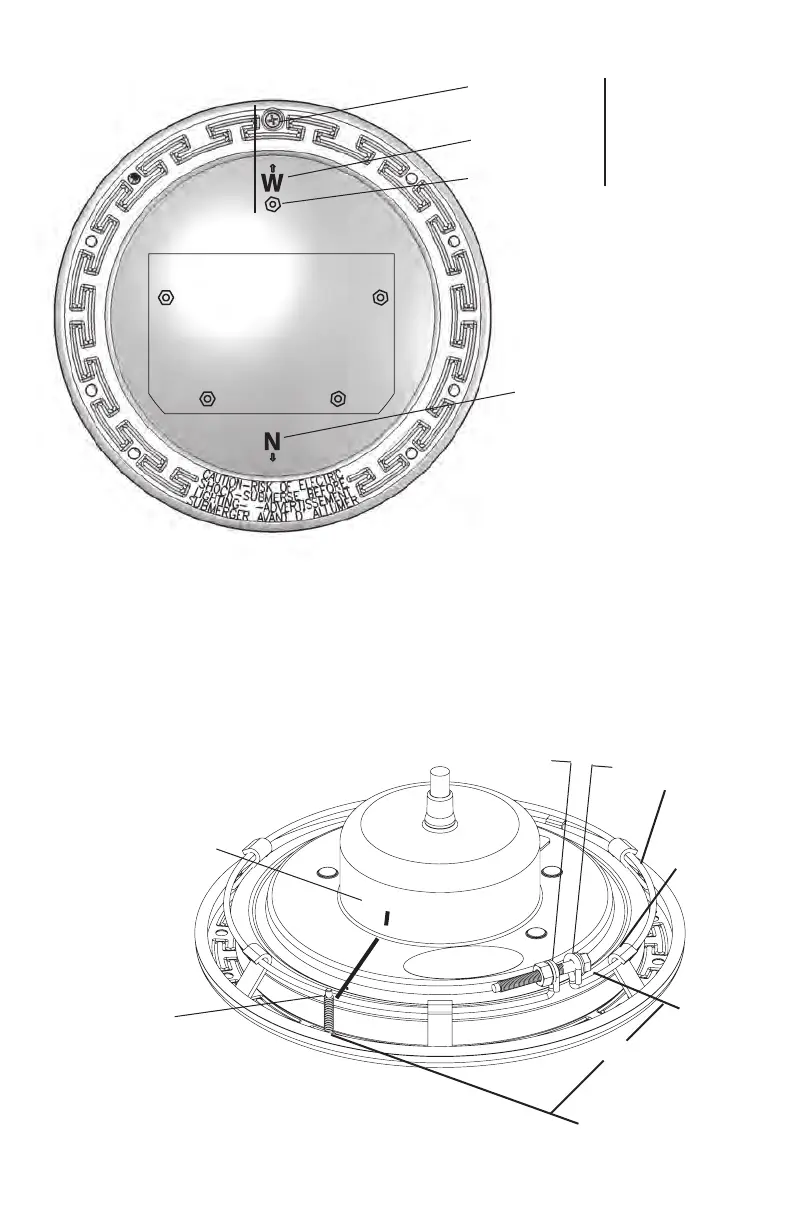

Position the wire clamp (nut and bolt) about 45°
between the PILOT SCREW and BOLT/NUT.
45°
PILOT
SCREW
Lock
lever
Align letter “W” (“WIDE”
angle) on lens/gasket with
pilot screw hole on face ring
and brass nut
ALIGN
“TOP” label
(use to align light
housing with pilot
screw on face
t
PILOT SCREW
(12 O’clock)
“W” ON LENS
BRASS NUT
ALIGN
For “NARROW” angle light
beam, rotate “N” to 12
O’clock position
¼-in or less
TOP
Uni-tension
clamp
15
To Next Page
