INTELLIBRITE
®
5G Pool and Spa Lights Installation and User’s Guide
1. Install NEW GASKET ONTO LENS: Stretch the gasket around the
circumference of the lens. Be sure the gasket is installed evenly around the
lens.
2. ALIGN LENS/GASKET ONTO LIGHT HOUSING:
a) With the light housing resting on its base, place the lens/gasket on top of the
light housing.
b) Rotate the lens/gasket to align the letter “W” (“WIDE” angle) on the lens with
the brass nut in the housing (see diagram on page 14 for brass nut location).
Note: The IntelliBrite light lens ships from the factory in the ‘WIDE’ (W) angle
position. The “wide” position of the lens is typically used for lights located either
side of the pool. The “narrow” position of the lens is typically used for lights
located either end of the pool. To use the “NARROW” angle light beam, rotate the
lens/gasket to align the letter “N” on lens. Note: For more information about using
the “WIDE” and NARROW angle lens, see page 17.

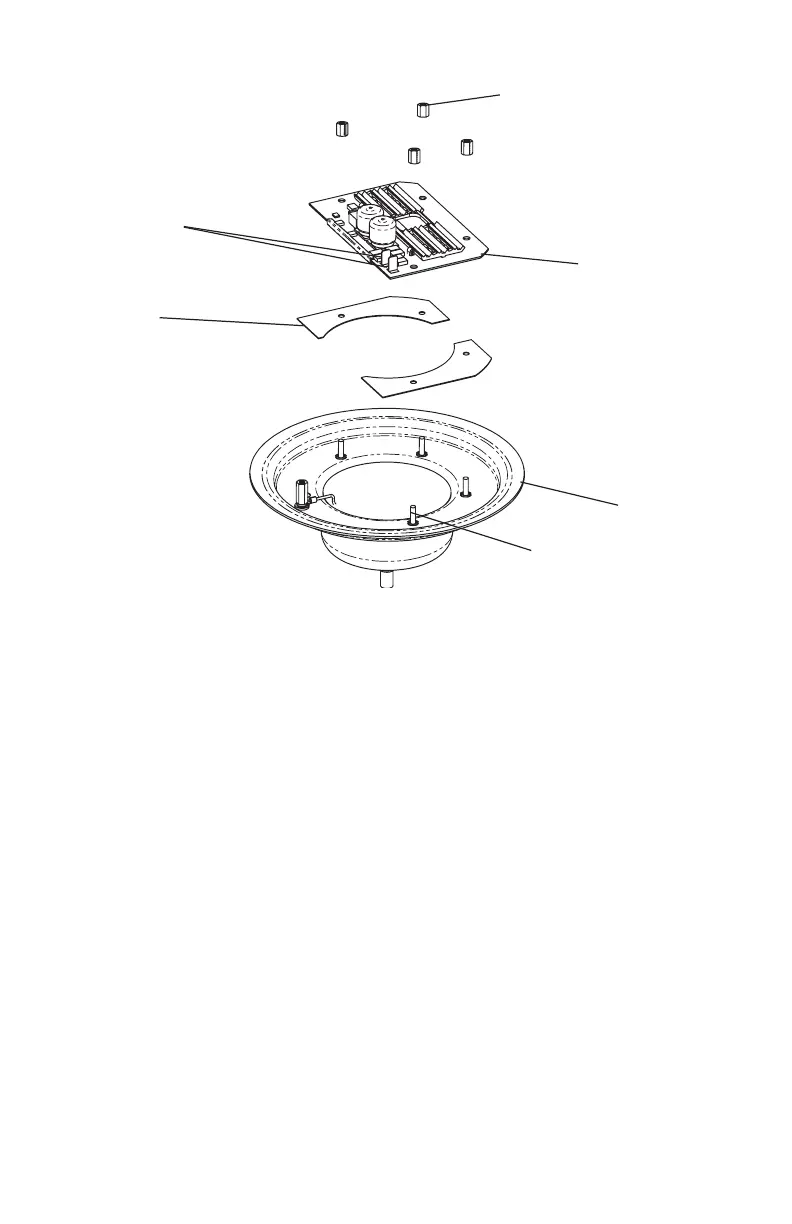

Retaining nut (4x)
Light housing
Thermal
strip (2x)
Circuit board
connector plugs
Circuit board
Circuit board
stud (4x)
14

Pentair INTELLIBRITE 5G Specifications

General

Light Type	LED
Color Options	Multiple color options including white, blue, green, red, and color shows
Voltage	12V or 120V
Energy Efficiency	Energy-efficient LED technology
Compatibility	Compatible with Pentair automation systems
Light Color	White and Color Changing
Control	Automated Control Systems, IntelliTouch, EasyTouch, and ScreenLogic
Lens Material	Polycarbonate
Installation	Existing Pentair Niches
Warranty	1 year
