INTELLIBRITE
®
5G Pool and Spa Lights Installation and User’s Guide
INTELLIBRITE
®
5G Pool and Spa Lights Installation and User’s Guide
Use only the special pilot screw provided with this
underwater light. This screw mounts and electrically grounds the housing
securely to the mounting ring and wet niche. Failure to use the screw
provided could create an electrical hazard which could result in death or
serious injury to pool users, installers or others due to electrical shock.
13. Final check for proper IntelliBrite light operation: Switch on
the main switch or circuit breaker to the system, and the switch
that operates the IntelliBrite underwater light itself. The light should
illuminate when power is applied. If not recheck the installation steps
starting with Step 1 (page 4).
9. Connect the three light wires (or two wires) to the corresponding light
circuit wires in the Junction Box. For three wires; connect the black
wire to power, white wire to common, and the green wire to ground.
10. For two wires connect the corresponding circuit wires (match the wire
colors) in the Junction Box. Secure the Junction Box cover.
11. Install the IntelliBrite
®
light assembly into the pool niche. Be sure to
insert the TAB on the lower part of the face ring into the niche SLOT
(located on the lower part of the niche). This is important to secure
the lower part of the light assembly onto the niche before tightening
the pilot screw.
12. Carefully tighten the special bronze pilot screw to secure the upper
part of the light assembly onto the niche.

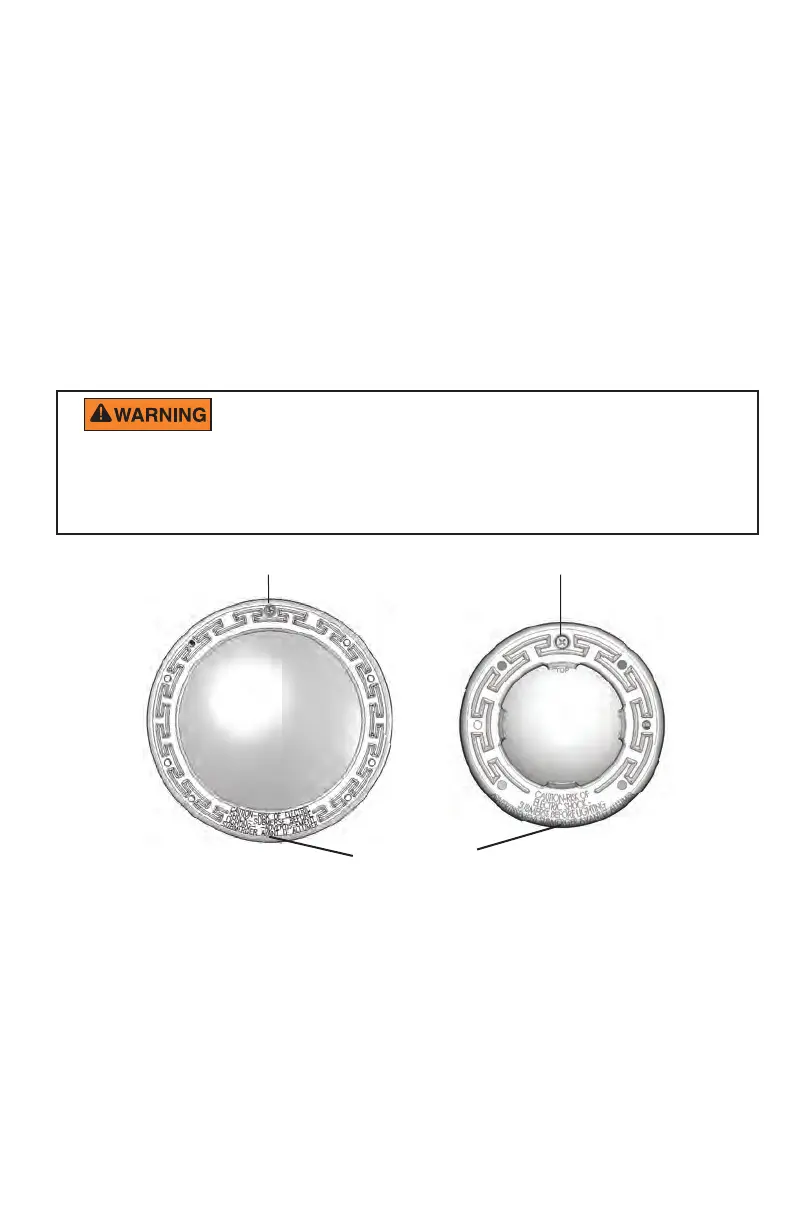

IntelliBrite 5G Pool Light
Pilot screw (bronze)
IntelliBrite 5G Spa Light
Pilot screw (bronze)
Face ring TAB
(insert into
niche slot)
5
