54

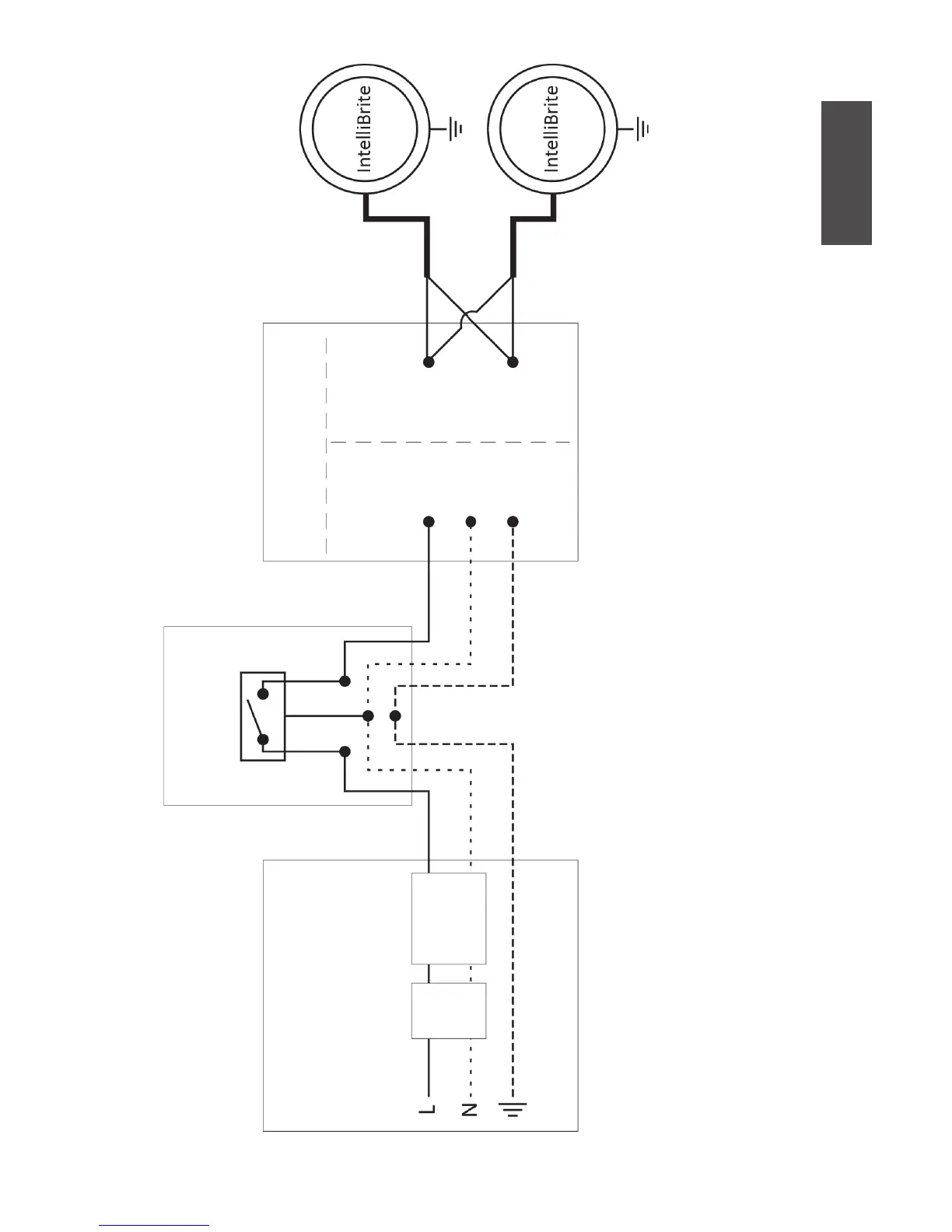

Schema di cablaggio del sistema Controller IntelliBrite
®
IMPORTANTE! Quando si installano le luci e i proieori a LED IntelliBrite per esterni da 12
V CA, collegare le luci all'uscita secondaria da 12 V CA del trasformatore in bassa tensione,
quindi collegare il Controller IntelliBrite all'uscita principale da 230 V CA del trasformatore
in bassa tensione.
Armadio elerico
Interrut-
tore
generale
Nero
Bianco
Rosso
Trasformatore
Primario
Secondario
Fino a 6
IntelliBrite
230 V
*Interruore differenziale
Controller
IntelliBrite
230 V CA
GFCI*
Italiano
