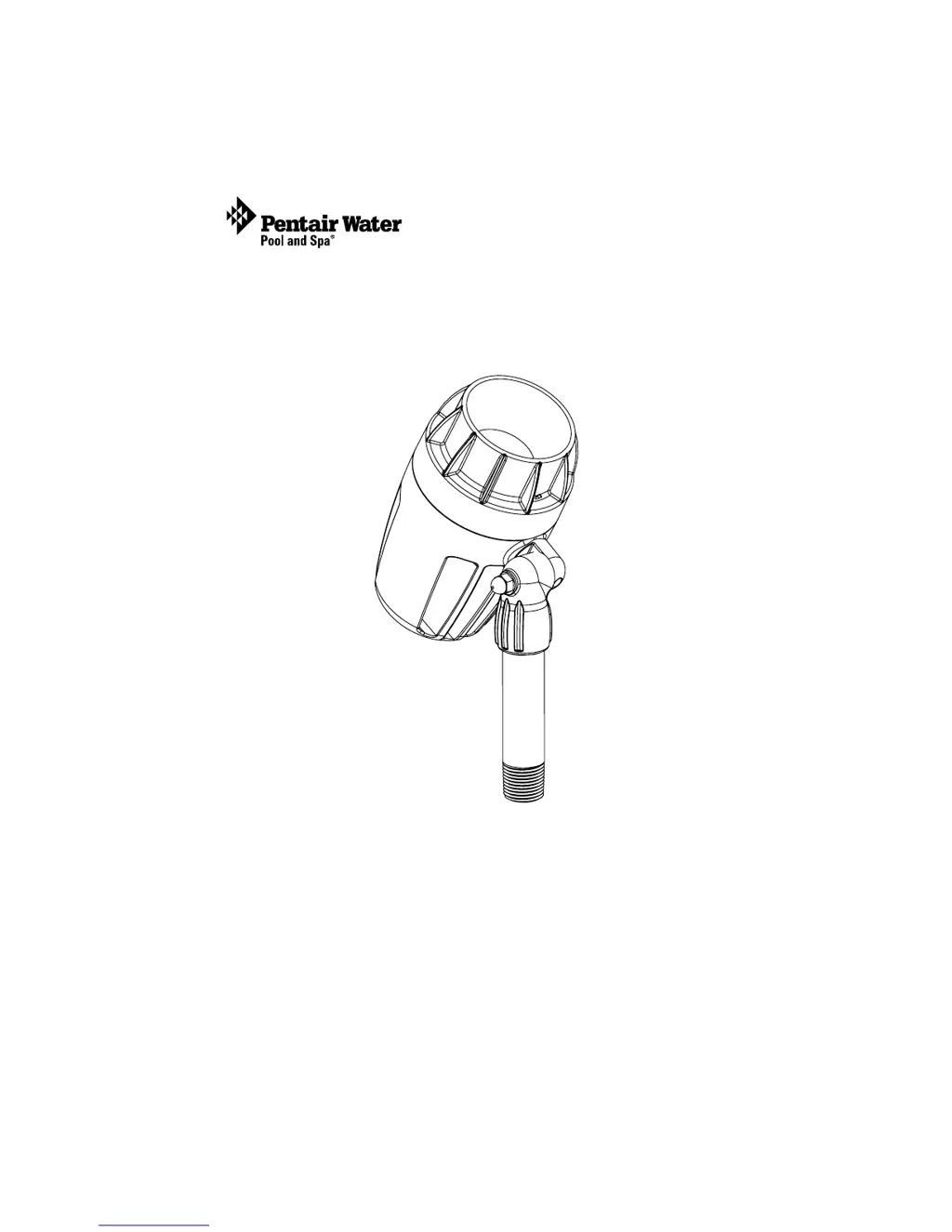

IntelliBrite Landscape Light Installation and User’s Guide
User’s and Installation Guide
IntelliBrite
®
Outdoor Landscape
LED Color-Changing Light
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL
INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Table of Contents

Other manuals for Pentair IntelliBrite

Preview: Installation Guide
Installation Guide56 pages
Preview: User Guide
User Guide48 pages
Preview: Installation And User Guide
Installation And User Guide16 pages

Questions and Answers

  • S
    Scott JohnsonJul 27, 2025
    What to do if both LEDs are flashing on my Pentair Controller?
    • J
      Joy AllenJul 27, 2025
      If both LEDs on your Pentair Controller are flashing, it means the IntelliBrite Controller has detected that the load is exceeding the maximum allowable wattage or the output is shorted. To resolve this: 1. Switch the IntelliBrite Controller OFF and remove the excessive load or short. 2. Press the IntelliBrite Controller power switch to power on the unit. Make sure the LEDs are no longer flashing.
  • J
    Jerome JimenezAug 6, 2025
    What to do if the light will not illuminate with my Pentair Controller?
    • K
      Kylie WolfeAug 6, 2025
      If the light connected to your Pentair Controller won't illuminate or isn't functioning properly, check the ground fault wiring and reset it if needed. Also, check the light wiring connection to the junction box at the pool side and to the main circuit breaker. Ensure that proper AC power is being supplied to the light.
  • S
    Steven JohnsonAug 16, 2025
    What to do if Pentair IntelliBrite light will not illuminate?
    • J
      Jerry DeanAug 16, 2025
      If your Pentair Lighting Equipment light won't turn on, begin by inspecting the ground fault wiring and try resetting it. Then, verify the light's wiring connection at both the poolside junction box and the AC power switch. Ensure that the light is receiving adequate AC power.

Summary

Important Safety Warnings and Precautions

Transformer Connection Safety

Safety warning regarding high voltage transformer connection by qualified electrician.

Pool, Spa, Fountain Safety Distance

Maintain minimum distance from water features to prevent electric shock.

Low Voltage Cable Routing and Burial

Guidelines for routing and burial of low voltage cable for safety.

IntelliBrite Landscape Lights Overview

Controlling IntelliBrite Landscape Lights

How to activate light shows using transformer power cycling or controllers.

Connecting IntelliBrite Landscape Lights

Operating the IntelliBrite Color Light Shows

Select an IntelliBrite Color Show or Fixed Color

Operating the Landscape Color Light Shows

Select a Landscape Light Show or Fixed Color

Connecting the Light Wires to the Transformer

Wiring the Lights to the Transformer

Instructions on stripping and connecting landscape light wires to transformer terminals.

IntelliBrite Landscape Lights Transformer Wiring

Number of Lights vs Required Transformer Wattage

Table reference for determining transformer wattage based on the number of lights.

Splice Light Wires

Cable Installation and Wire Nut Usage

Instructions for splicing wires using silicone-filled wire nuts and proper cable burial.

Installing IntelliBrite Landscape Lights

Recommended Wire Gauge and Length

Guidance on selecting correct wire gauge and length based on transformer output and distance.

Attach Light Fixture to Ground Stake

Tilt and Horizontal Light Adjustment

Adjusting Tilt Angle

Adjusting Horizontal Angle

Pentair IntelliBrite Specifications

General IconGeneral
Housing MaterialPolymer
Lens MaterialPolycarbonate
IP RatingIP68
Color OptionsMultiple
Wattage40W
Voltage12V or 12 VAC
ControlAutomation System
InstallationIn-ground Pool
Lifespan30, 000+ hours
TypeLED Pool Light
Light ColorColor changing

Videos

How to Sync Pentair IntelliBrite GloBrite and MicroBrite Color

Related product manuals
