IntelliBrite Landscape Light Installation and User’s Guide

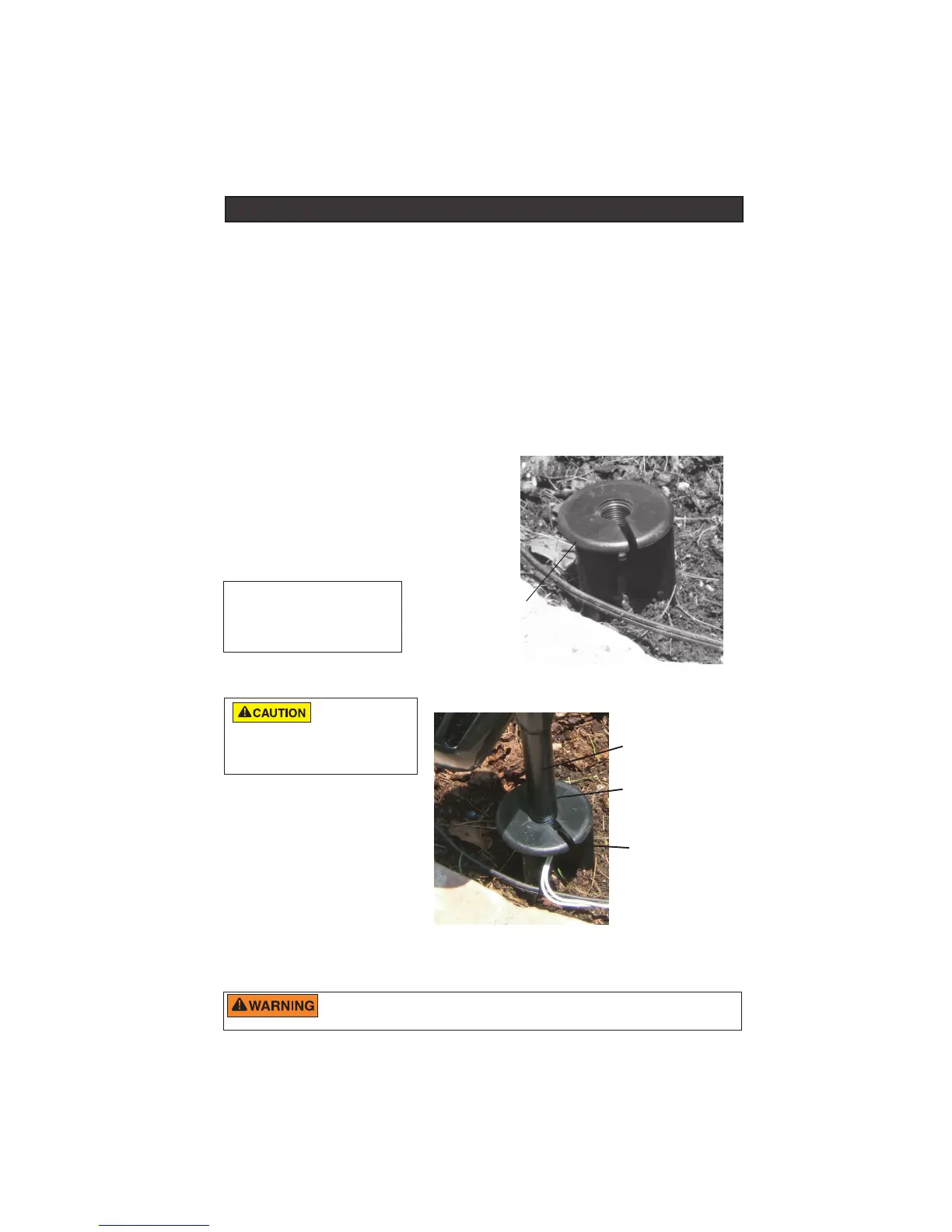

Attach Light Fixture to Ground Stake
DO NOT use
the rubber hammer to drive
thestake into the ground with
the light fixture attached.
With the ground stake
inserted into the ground,
mount the light into the top of
the stake as follows:
1. Route the light’s two
wires through the slot in
the top of the stake
base.
2. Screw the light fixture
mounting pipe into the
thread in the stake base. Hand tighten until the light fixture is seated
firmly into the stake base.
9
INSTALLING INTELLIBRITE LANDSCAPE LIGHTS
Landscape Lights Recommended Wire Gauge and Length
Depending on the number of landscape lights being used and the trans-
former rating (11.5 VAC to 14.5 VAC loaded output), be sure to use the correct
wire gauge and length. Before installation, refer to the “RECOMMENDED
MINIMUM WIRE GAUGE” table on page 7.
Light Placement and Orientation
Position the IntelliBrite landscape LED light in the desired location. The light
can be mounted in any orientation (pointing upward or downward). The
½" mounting pipe can be attached to other mounts instead of the supplied
ground stake.
Dig Hole for Ground Stake
Depending on the type of soil, the ground
mounting stake may be difficult to hammer
into the ground. If needed, use a shovel to
loosen the earth before inserting the stake
into the ground.
Note: If needed, use a
rubber mallet (not a metal
hammer) to hammer stake
into ground.
MOUNTING
STAKE
SLOT FOR
WIRES
MOUNTING
PIPE
STAKE
BASE
RISK OF ELECTRIC SHOCK! Install each landscape light a
minimum of 10 feet (3.05 meters) from the pool, spa or fountain.
