Pentair IntelliBrite Installation Guide

6
Powering on the IntelliBrite light(s)
When the IntelliBrite LED light is powered on, a momentarily white light will
illuminate, followed by the dial selected color.
Troubleshoong
Use the following ps to help to resolve problems that might occur while operang
the IntelliBrite Controller.
PROBLEM SOLUTION
Both of the
LEDs are
ashing
The IntelliBrite Controller has detected that the load has exceeded
the maximum allowable waage or the output is shorted out
1. Switch of the IntelliBrite Controller OFF.
Remove excessive load or short.
2. Press the IntelliBrite Controller power switch to power on
the unit. Ensure that the LEDs are no longer ashing.
The light will
not illumi-
nate.
Light does
not funcon
properly.
Check the ground fault wiring and reset if necessary.
Check the light wiring connecon to the juncon box at the pool
side and to the main circuit breaker.
Be sure that there is proper AC power applied to the light
Nonmetallic Outlet Box Specicaons

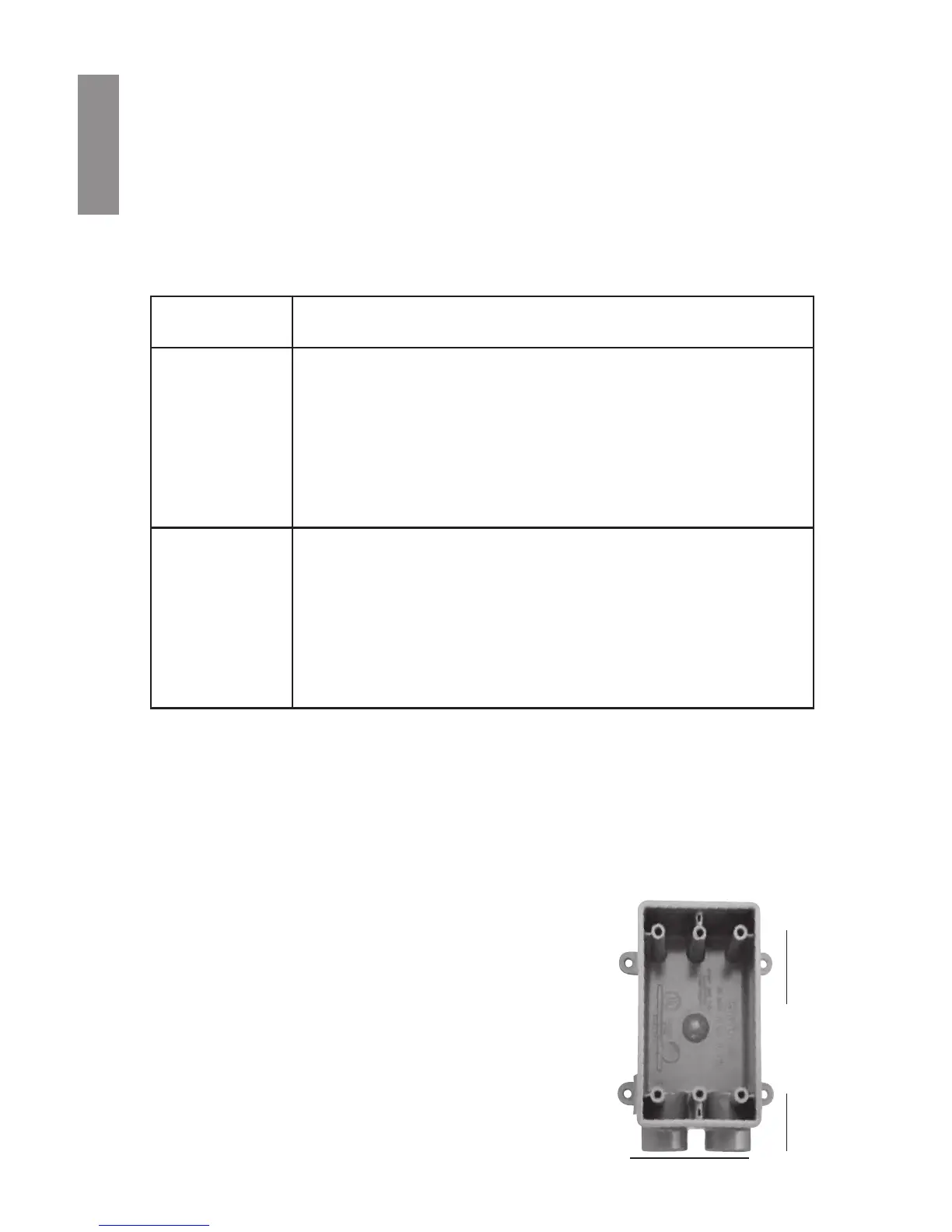

The IntelliBrite Controller requires a specic nonmetallic outlet box. The outlet box
must meet the following specicaons:
• Outlet box type: 19 cubic inches (minimum) - Suitable for wet locaons
with UL/CSA approval lisngs. Check the inside of outlet box for
specicaon label.
Depth 61.6 cm (2.42”)
Width 71. cm (2.8”)
650185 Gang Box Type Fss ¾ Dual Sckt Pvc
650186 Thd Adptr ¾ Spgt To ½ Npt Pvc
650187 Plug Hex Hd ½ Npt Sch80 Pvc Dark Gray
650189 Scr 6-32/1-1/2 Inch Oval Pth
522318 Lbl Door Intlbrt Cont 230V
522319 Lbl Data Warn Intlrt Cont 230V
Outlet Box
Length
115.3 cm
(4.54”)
English

Pentair IntelliBrite Specifications

General

Housing Material	Polymer
Lens Material	Polycarbonate
IP Rating	IP68
Color Options	Multiple
Wattage	40W
Voltage	12V or 12 VAC
Control	Automation System
Installation	In-ground Pool
Lifespan	30, 000+ hours
Type	LED Pool Light
Light Color	Color changing
