Pentair IntelliBrite Installation Guide

7
Installing an Outlet box for the IntelliBrite Controller
The IntelliBrite Controller mounts onto a specic outlet box (19.5 CU inches) supplied
with the unit.
To install the outlet box:
1. Posion the IntelliBrite Controller and outlet box to meet current local re-
quirements, and to prevent hazard to personnel. Make sure the cable access
ports face downwards.
Note: The outlet box must be located a minimum distance of 1.5 meter
measured horizontally from the inside wall of the pool and not less than
0.3 meter above the maximum pool water level measured to the top of the
outlet box.

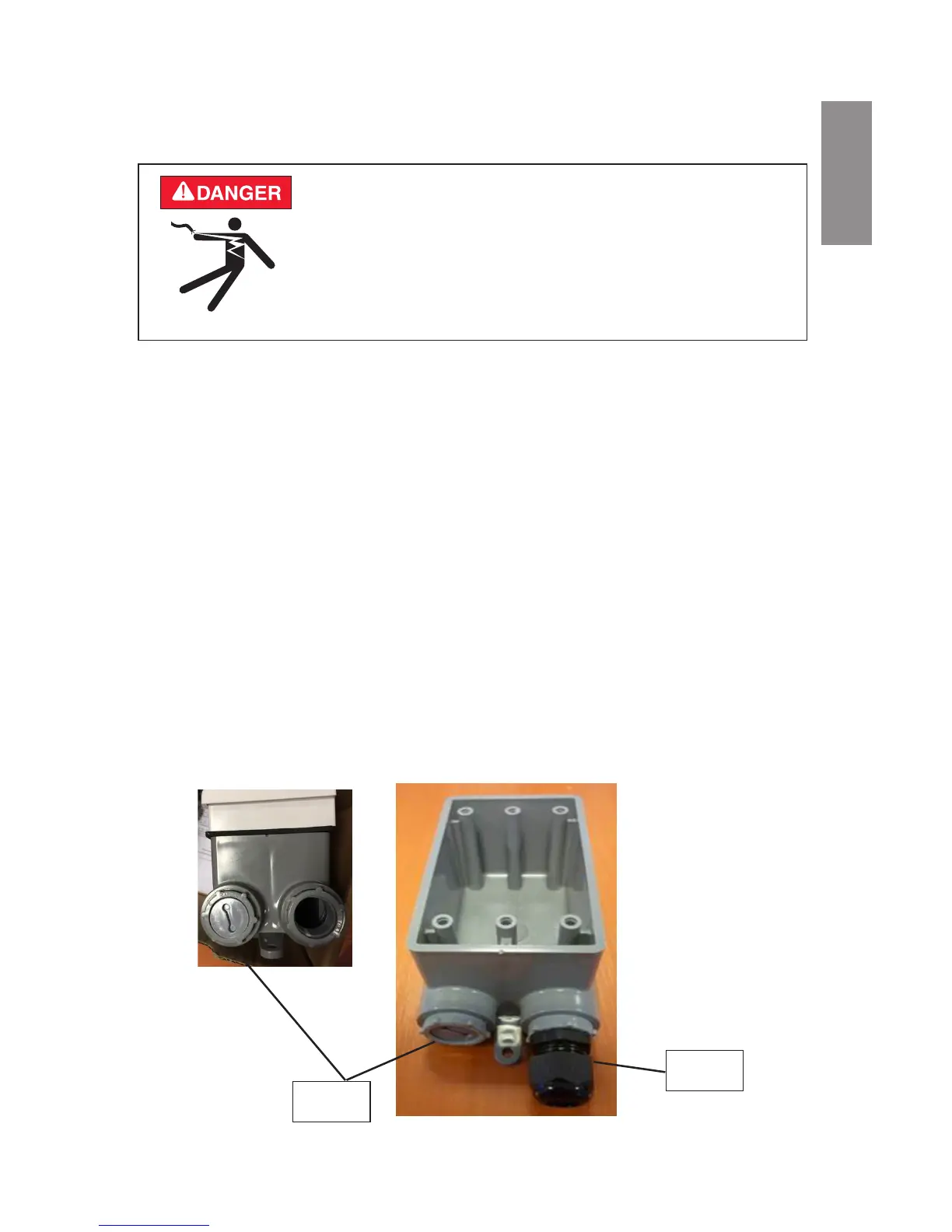

2. Fit the 2 supplied PG nuts onto the outlet box. For best result use PVC ad-
hesive to permanently x the PG nuts. If it is required to use only one cable,
close of the access part using the threaded plug supplied with the units (use
PVC adhesive to secure permanently).
3. Run cable from the IntellBrite transformer to the outlet box.
4. Run cable from the 230V power supply to the outlet box.
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION
TURN power OFF at circuit breaker - Always
disconnect power to the pool light at the circuit
breaker before servicing the light. Failure to do
so could result in death or serious injury to
installer, service person, pool users, or others due
to electrical shock.
Plug
English
PG Nut

Pentair IntelliBrite Specifications

General

Housing Material	Polymer
Lens Material	Polycarbonate
IP Rating	IP68
Color Options	Multiple
Wattage	40W
Voltage	12V or 12 VAC
Control	Automation System
Installation	In-ground Pool
Lifespan	30, 000+ hours
Type	LED Pool Light
Light Color	Color changing
