Pentair INTELLICHLOR IC15 User Manual

3

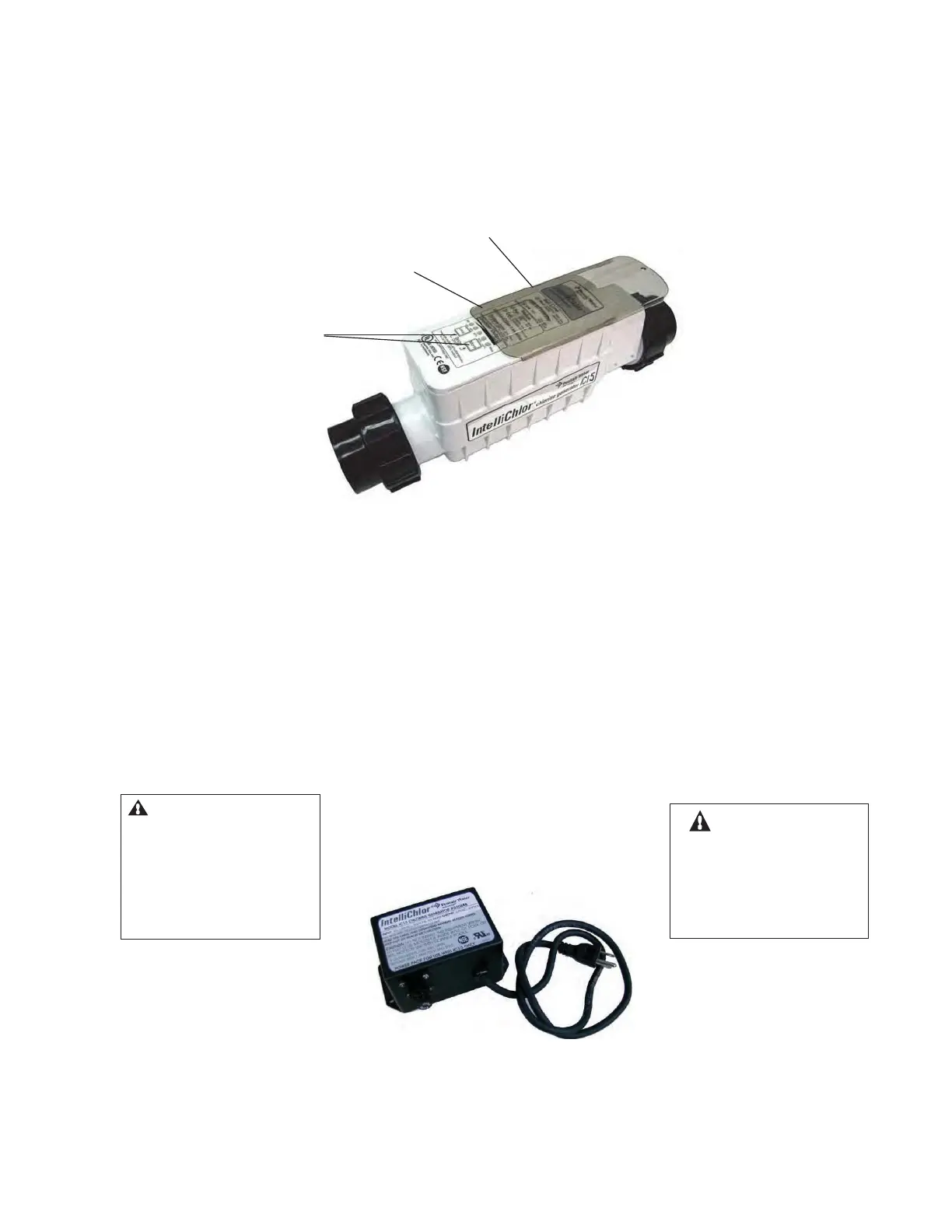

Control Panel
status LEDs
Clear sliding
cover
MORE and LESS
output buttons
IntelliChlor
®
Salt Chlorine Generator
IntelliChlor
®
SCG Power Supply
The IntelliChlor Power Supply converts AC electrical current to a low-voltage AC electrical current which is
required to produce chlorine. The Power Supply is connected with the pool circulation pump electrical source
so that the SCG only operates when the pool pump is on. A 4.5 m (15 ft). cord connected to the IC15 unit
plugs into the Power Supply which plugs directly into a 110VAC outlet. The Power Supply can be mounted
vertically on the wall up to 4.5 m (15 ft) away from the SCG.. The Power Supply contains the transformer,
fuse (1 AMP 250 V, 3 AG), connector to the cell and the AC electrical cord with plug. There are no other
controls or lights on the Power Supply. The Power Supply must be connected to a GFCI protected outlet.
CAUTION - The
IntelliChlor Power Supply
does NOT control the pump.
The IntelliChlor Salt
Chlorine Generator, model
IC15 only produces chlorine
when the pool pump is on.
IntelliChlor
®
Salt Chlorine Generator
External Power Supply
CAUTION - First
switch OFF AC power to
the Power Supply before
plugging or unplugging
the IntelliChlor SCG
IC15.
IntelliChlor Salt Chlorine Generator Installation and User’s Guide
