OPERATING THE PUMP 19/20
EXTERNAL CONTROL WITH INTELLICOMM® II COMMUNICATION CENTER
The IntelliFlo® pump can be remotely controlled by the Pentair IntelliComm II Communication
Center using the RS-485 communications cable. The IntelliComm II provides four pairs of
input terminal connections. These inputs are actuated by either 15 - 240 VAC or 15 - 100 VDC.
Using the device’s inputs, the programmed IntelliFlo® pump speeds can be controlled.
Note: For the IntelliFlo® pump to accept commands from IntelliComm, the pump must be in
the “Running Schedules” mode (LED above the Start/Stop button lit).
If more than one input is active the highest number will be communicated to the IntelliFlo®
pump. The IntelliComm will always communicate to pump using ADDRESS #1.
Program number priority is as follows; Example: If programs 1 and 2 are activated, program
2 will run, regardless of the assigned speed (RPM). The higher speed number (2 being higher)
will always take priority. The following table shows the wiring terminal descriptions for
IntelliComm.

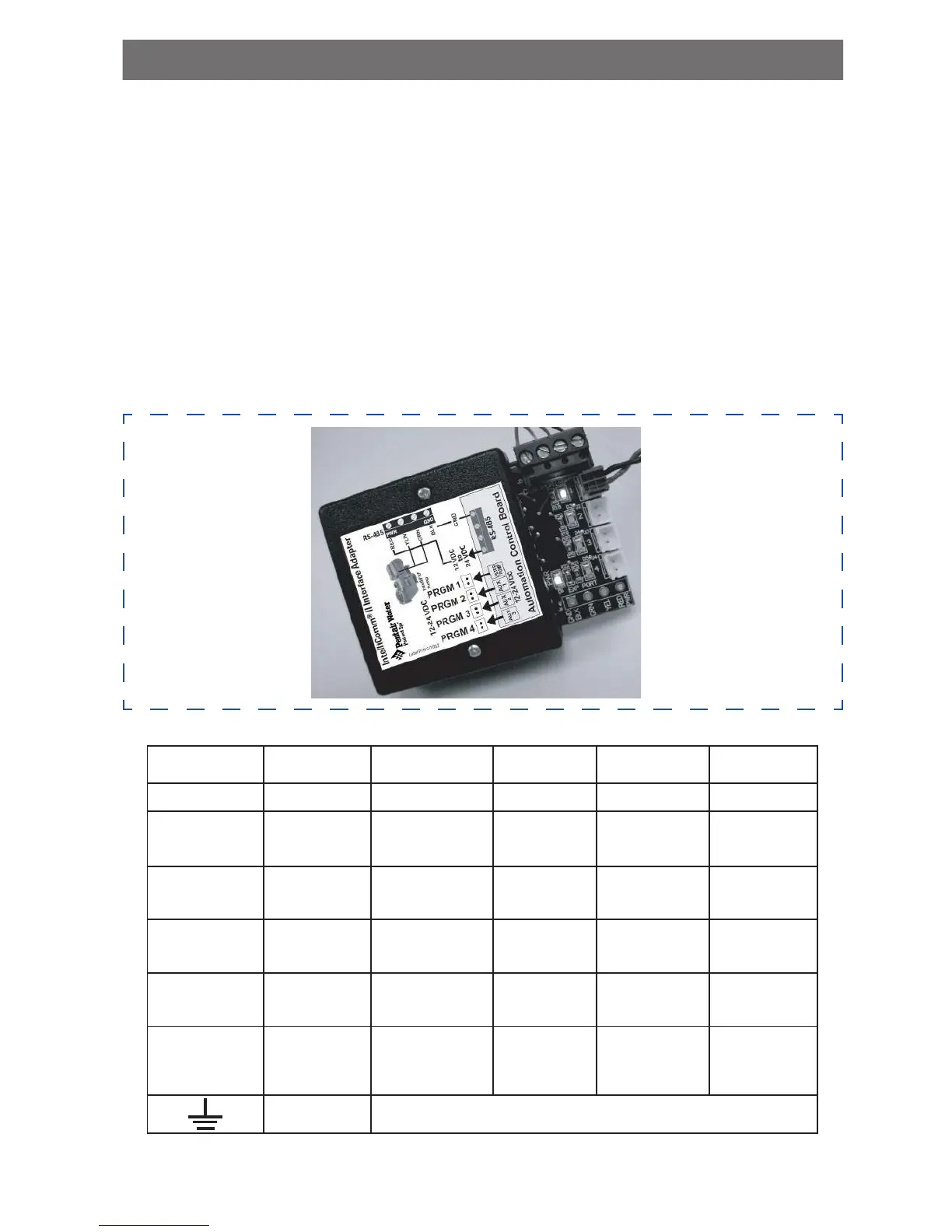

IntelliComm II Communication Center
Terminal
Number
Terminal Name Voltage
Maximum
Current
Phase Type Frequency
1-2 Power Supply 100 - 240 VAC 100 mA 1 Input 50/60 Hz
3-4 Program 1
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
5-6 Program 2
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
7-8
Program 3
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
9-10 Program 4
15 -240 VAC
or
15 - 100 VDC
1 mA 1 Input 50/60 Hz
11
12
RS-485
+ Data: Yellow
- Data: Green
-5 to +5 VDC 5 mA 1 Output N/A
Ground
30
