INTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s GuideINTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s Guide
Pump Menu: Features
Quick Clean
This feature can be used to increase the pump speed
or flow for the purposes of vacuuming, cleaning, adding
chemicals, after a storm for extra skimming capability.
Press the Quick Clean button (LED on) and then
Start/Stop to start. When the Quick Clean cycle is over,
the pump will resume regular schedules and return to
“Schedule” mode.
To access the Quick Clean menu:
1. Check that the green power LED is on and the
pump is stopped.
2. Press Menu.
3. Use Up or Down arrows to scroll to “Features”,
then press Select.
4. Press the Down arrow and press Select for “Quick
Clean”.
5. Press Select to choose “Set Type”. Use the Up or
Down arrow to choose between "Speed" or "Flow".
Press Save.
6. Use the Up or Down arrow to scroll to "Set Speed/
Flow". Press Select and use the Up or Down arrow
to adjust the speed or flow settings. Press Save.
Time Out
The Time Out feature keeps the IntelliFlo
®
VSF Variable
Speed and Flow Pump from running it’s programmed
speeds or flows for a set duration adjustable in the
menu. The Time Out feature is displayed in hours and
minutes (Hrs:Mins).
Once Time Out is finished, the pump will return to its
previous mode of operation, the Start/Stop LED will be
lit and ready to turn on at the next scheduled run time.
To access the Time Out menu:
1. Check that the green power LED is on.
2. Press Menu.
3. Use Up or Down arrows to scroll to “Features”,
then press Select.
4. Press Select to choose “Timeout”.
5. "Timeout Duration" will display. Press Select to
highlight the minutes column.
6. Press the Left arrow to move cursor to the hours
column. Time out can be set from 1 minute to 10
hours.
7. Press Save to save the setting.
Note: To cancel any changes, press Back to exit
without saving.
8. Press Back to exit the menu.
PRIMING
MENU
Pump Menu: Priming
The default setting for Priming is ENABLED. This setting
allows the pump to automatically detect if it is primed for
startup.
The priming feature increases the pump speed to
1800 RPM and pauses for three (3) seconds. If there is
sufficient water flow in the pump basket, the pump will
go out of priming mode and run its commanded speed.
If the water flow is not sufficient, the pump speed will
increase to the “Priming Speed” setting and remain for
the priming delay time (default 20 seconds). If there is
sufficient water flow in the pump basket at this time, it
will exit priming mode and transition to the commanded
speed.
If there is still insufficient flow in the pump basket, as
determined by the Priming Range setting, the pump will
try to prime at the “Priming Speed” for the amount of
time set in the “Maximum Priming Time” menu. Once the
pump achieves prime, it will resume normal operation
after the preset priming delay.

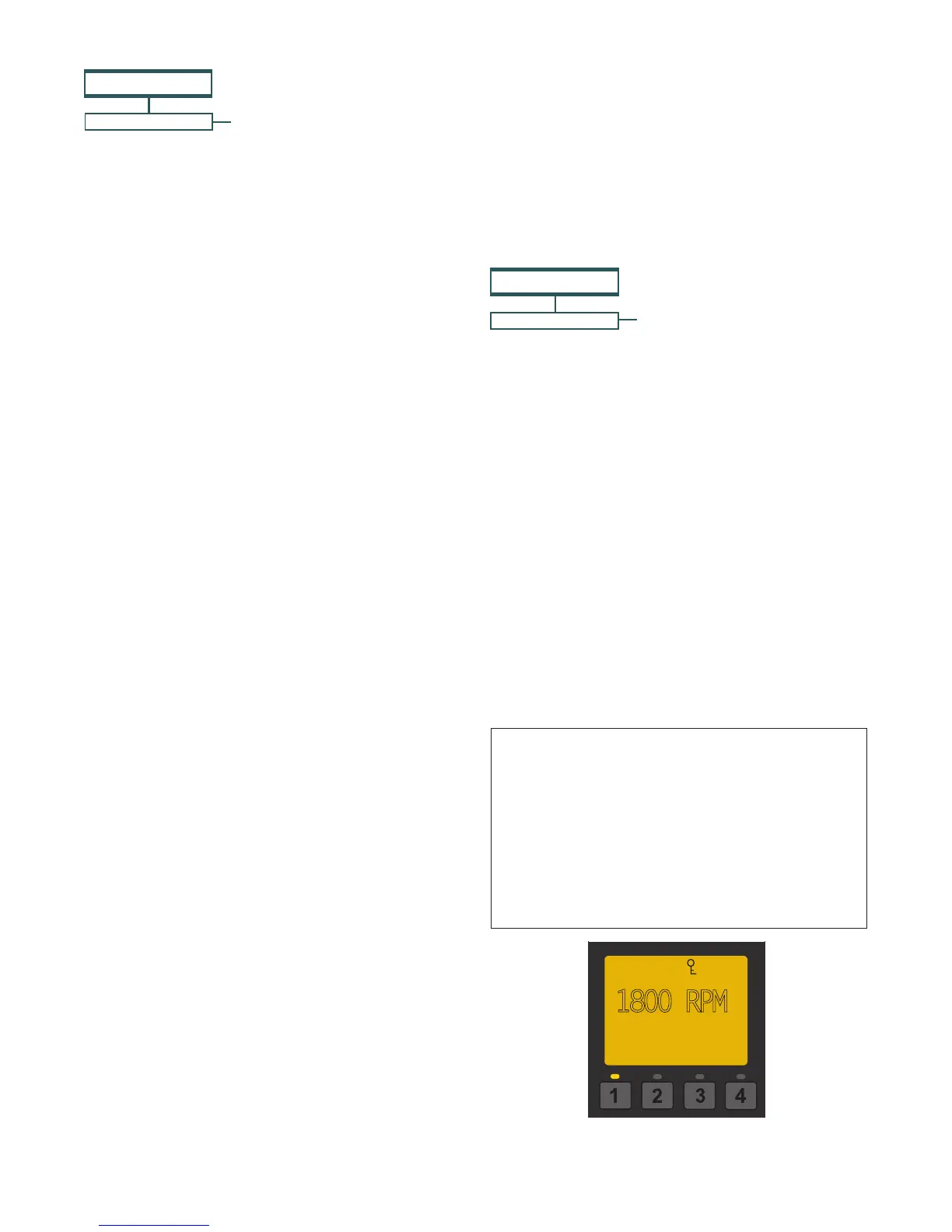

Display during priming
12:15p
1800 RPM
T 00:01 460 WATTS
Priming
7. Press Save to save the speed or flow setting.
8. Press the Down arrow and press Select for “Time
Duration”.
9. The cursor will highlight the minutes column. Use
Up or Down arrows to change the time from 1
minute to 10 hours.
10. Press Save to save the time.
11. Press Back to exit the menu.
Note: It is possible to set “Maximum Speed” too low
for the pump to properly prime. Maximum Speed
will limit Priming Speed, except in one case. If the
Maximum Speed is set below the lowest available
Priming Speed (2400 RPM) then the pump will
exceed the Maximum Speed while the priming
feature is running. This prevents the pump from
having trouble priming if the Maximum Speed is set
this low. If this is a problem, priming can be disabled
in the Priming Menu.
