Pentair IntelliFlo User Manual

25
INTELLIFLO
®
Variable Speed Pump Installation and User’s GuideINTELLIFLO
®
Variable Speed Pump Installation and User’s Guide

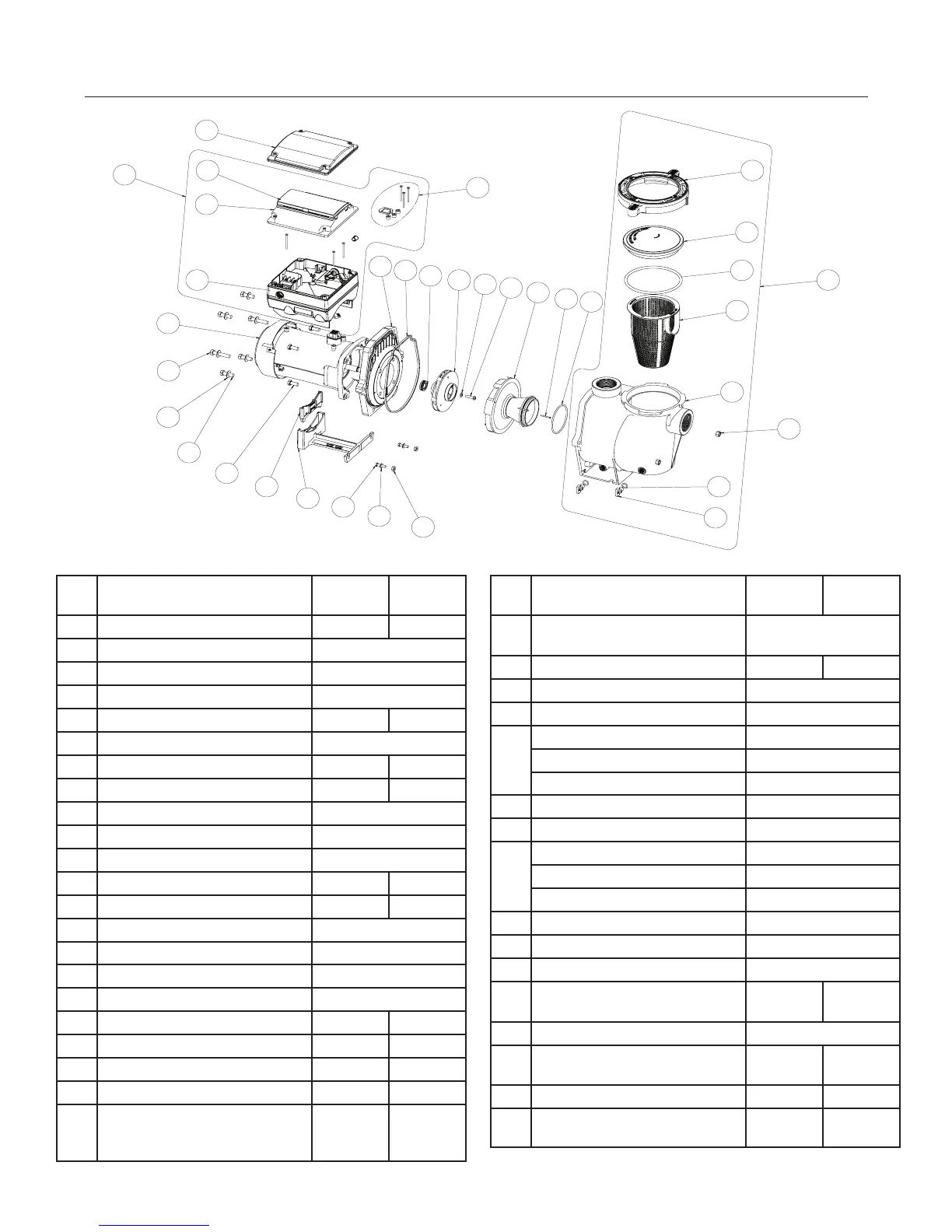

REPLACEMENT PARTS
1
2
3
4
5
33
6
7
9
10
11
12
13
14
16
15
17
20
21
24
25
26
27
29
30
31
32
28
18
19
22
23
34
8
IntelliFlo
®
Variable Speed Pump Replacement Parts
Item
No.
Description
Almond
Part #
Black
Part #
1 Clamp, Cam and Ramp 357199 357150
2 See Through Lid 357151
3 Lid O-Ring 350013
4 Stainer Basket 070387
5 Volute WF 350015 357157
6 O-Ring 112 for Drain Plug (Qty2) 192115
7 Drain Plug WF (Qty2) 071131 357161
8 Volute Kit (Includes Item #1-7) 357243 357244
9 Nut, 1/4-20 Hex. SS (Qty2) 071406
10 Washer, Flat 1/4" ID x 5/8" OD (Qty2) 072183
11 Screw, 1/4-20 x 1" Hex Cap SS (Qty2) 071657
12 Foot WF 070927 357159
13 Foot Insert WFE, Pump Motor Support 070929 357160
14 Bolt, Hex Head 3/8-16 x .875" (Qty4) 070429
15 Bolt, Hex Head 3/8-16 x 1.25" (Qty4) 070430
16 Washer, Flat 3/8" ID x 7/8" OD (Qty6) 072184
17 Bolt, Hex Head 3/8-16 x 2" (Qty2) 070431
18 Motor, 3.2kW 10 Pole 350305S 350306S
19 Drive, Variable Speed 356878Z 356892Z
20 Drive Cover Kit (Includes Item #21) 357527Z 358527Z
21 Keypad Cover 400100 401100
22
Keypad Relocation Kit (Includes
Keypad Relocation Cable and Blank
Drive Cover)
356904Z 356905Z
Item
No.
Description
Almond
Part #
Black
Part #
23
Drive Hardware Kit (Includes Drive
Screws, Drive Gasket and Screw Caps)
355685
24 Seal Plate 074564 357158
25 Seal Plate Gasket 357100
26 Mechanical Seal 071734S
27
Impeller, 3 HP 073131
Impeller, IntelliFlo i1 073128
Impeller, IntelliFlo i2 073131A
28 Rubber Washer, Impeller Set Screw 075713
29 Impeller Set Screw, 1/4-20 LH Thread 071652
30
Diffuser, 3 HP 072928
Diffuser, i1 072930
Diffuser, i2 072927
31 Diffuser Set Screw, 4-40 x 1-1/8 (Qty2) 071660
32 Diffuser O-Ring 355227
33 Nut, 3/8-16 Brass, Nickel Plated (Qty2) 071403
34
Drive Kit Assembly (Includes
Item #19-21 & 23)
356879Z 356893Z
- 50 Ft. Communication Cable 350122
-
Seal Plate Kit w/ Mechanical Seal
(Includes Item #24-26)
350202 350203
- Power End 3HP VS 354044
Not Available
-
Volute and Seal Plate Kit (Includes Item
#1-7 & 24-26)
357149 Not Available
(-) Not Shown

Pentair IntelliFlo Specifications

General

Pump Type	Variable Speed
Horsepower	3.0 HP
Voltage	230V
Energy Efficiency	Energy Star Certified
Warranty	3 years
Maximum Flow Rate	160 GPM
Wet End Material	Composite
Control Interface	Digital
Speed Settings	8 Programmable Speeds
