INTELLIFLO
®
VS+SVRS and INTELLIPRO
®
VS+SVRS Variable Speed Pump Installation and User’s Guide

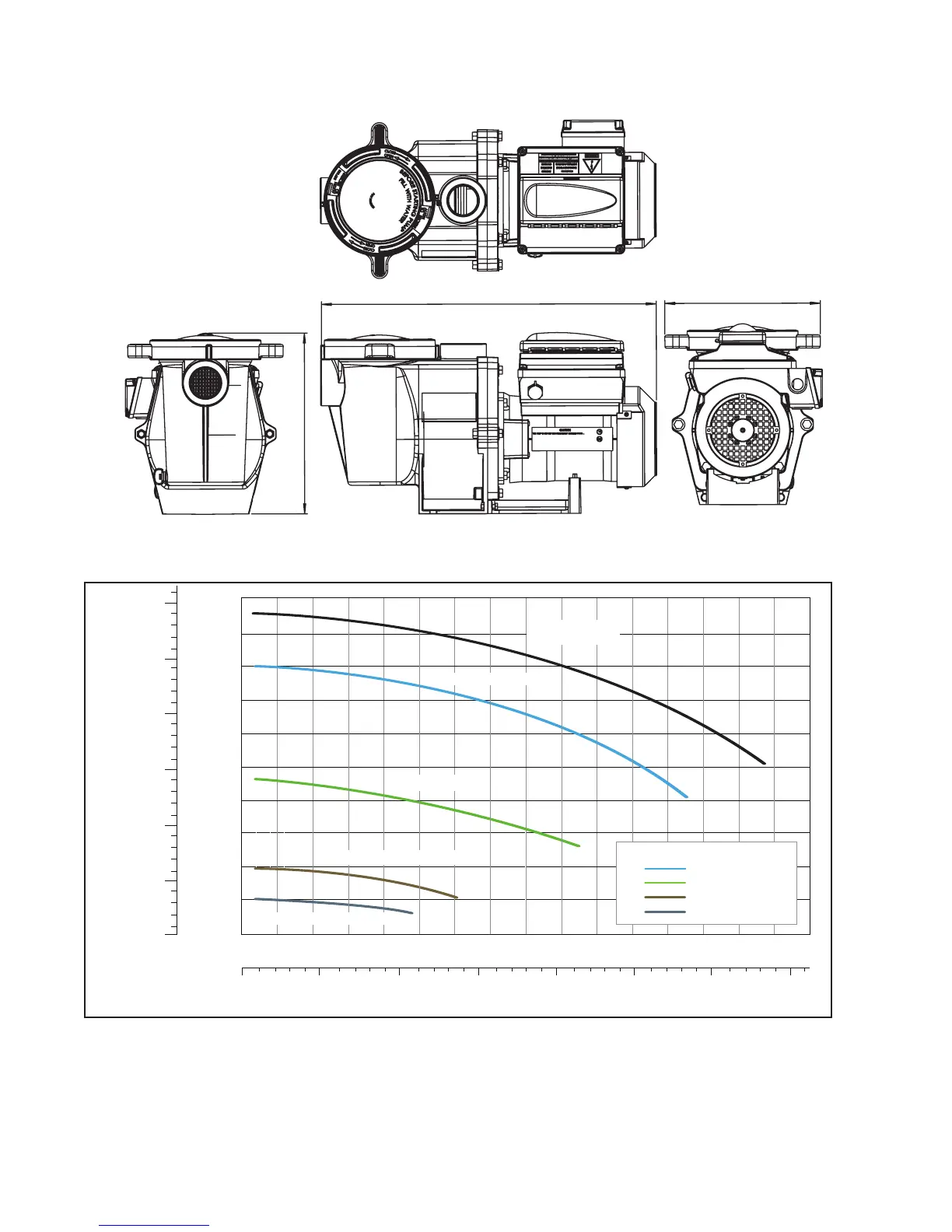

Pump Dimensions
12.50 in (317.5 mm)
23.41in (594.6 mm)
10.78 in (273.8 mm)
Electrical Specications
Circuit Protection: Two-pole 20 AMP device at the Electrical Panel.
Input: 230 VAC, 50/60 Hz, 3200 Watts
Flow and Power vs Flow Pump Curve
Feet of Water
U.S. Gallons per Minute
Cubic Meters per Hour
TOTAL HEAD
Meters of Water
3110 RPM
2350 RPM
1500 RPM
1100 RPM
FACTORY PRESET SPEEDS
100
90
80
70
60
50
40
30
20
10
0
0
20
5
5
MAX. SPEED
@ 3450 RPM
10
10
15
15
20
20
25
25 30 35
30
40 60 80 100 120 140 1600
0
@ SPEED 4 3110 RPM
@ SPEED 3 2350 RPM
@ SPEED 2 1500 RPM
@ SPEED 1 1100 RPM

Pentair INTELLIPRO VS+SVRS Specifications

General

Brand	Pentair
Model	INTELLIPRO VS+SVRS
Category	Water Pump
Language	English
