Pentair INTELLITOUCH Appliance Upgrade Guide

9
Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions
Please refer to the IntelliCenter™ Control System Installation Guide (P/N 522989) and the IntelliCenter
Control System User’s Guide (522990) for the following information:
• Connecting the System Transformer (and SCG transformer option if installed) to the
IntelliCenter Outdoor Control Panel main circuit board
• Connecting high and low voltage pool and spa equipment (pump, heater, spa side
remote etc.) to the IntelliCenter Outdoor Control Panel main circuit board.
• Configure the IntelliCenter Outdoor Control Panel hardware using the Setup Wizard.
Connecting and configuring pool and spa equipment
• After all electrical connections have been completed, close the Outdoor Control Panel and tighten the two
retaining screws. Reinstall the High Voltage Panel: Insert the panel’s three tabs into the lower slots on the
enclosure. Secure the panel with the two retaining screws. See Figure 2 on page 4.
AUX5 AUX6
AUX7 AUX8 AUX9
*522612*

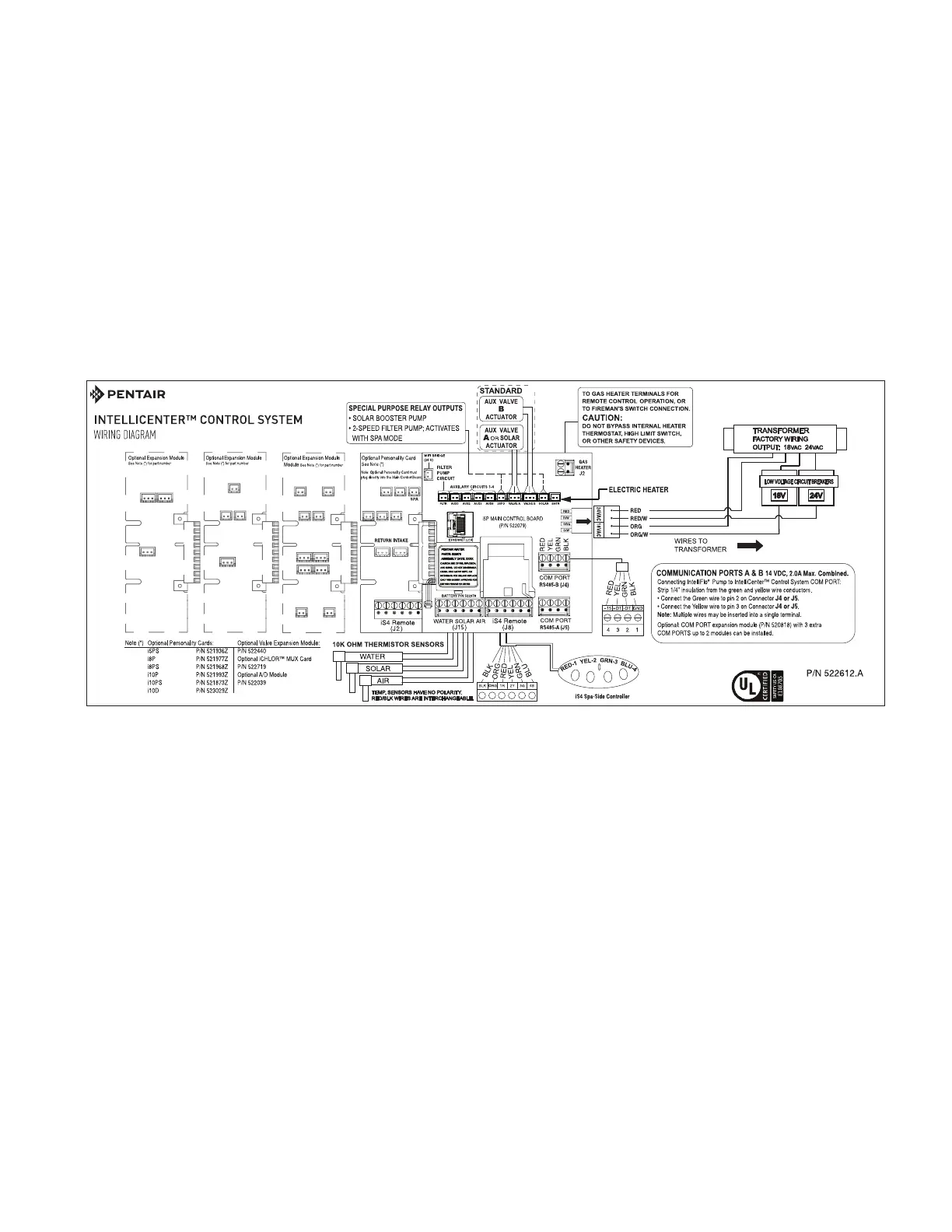

Wiring Diagram label for IntelliCenter Control System Upgrade Kit.
Figure 9. IntelliCenter Control System Circuit Board
(with optional Expansion Boards shown)

Pentair INTELLITOUCH Specifications

General

Remote Access	Yes, via mobile app
Lighting Control	Yes
Automation	Yes
Expandability	Yes
Interface	Touchscreen, mobile app
Enclosure Rating	NEMA 3R
User Interface	Touchscreen
Compatibility	Pentair equipment
Connectivity	Ethernet, Wireless
Mobile Control	Yes
Remote Control	Yes
Communication Protocol	Pentair proprietary
Control Type	Automated
