Pentair INTELLITOUCH Appliance Upgrade Guide

10
Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions
1. Remove the backing from the wiring label.
2. Affix the wiring label ((7), P/N 522612) onto High Voltage Cover panel. See Figure 10.
3. Close the front door and secure with the latch.
4. Switch ON AC POWER to the load center at the circuit breaker.

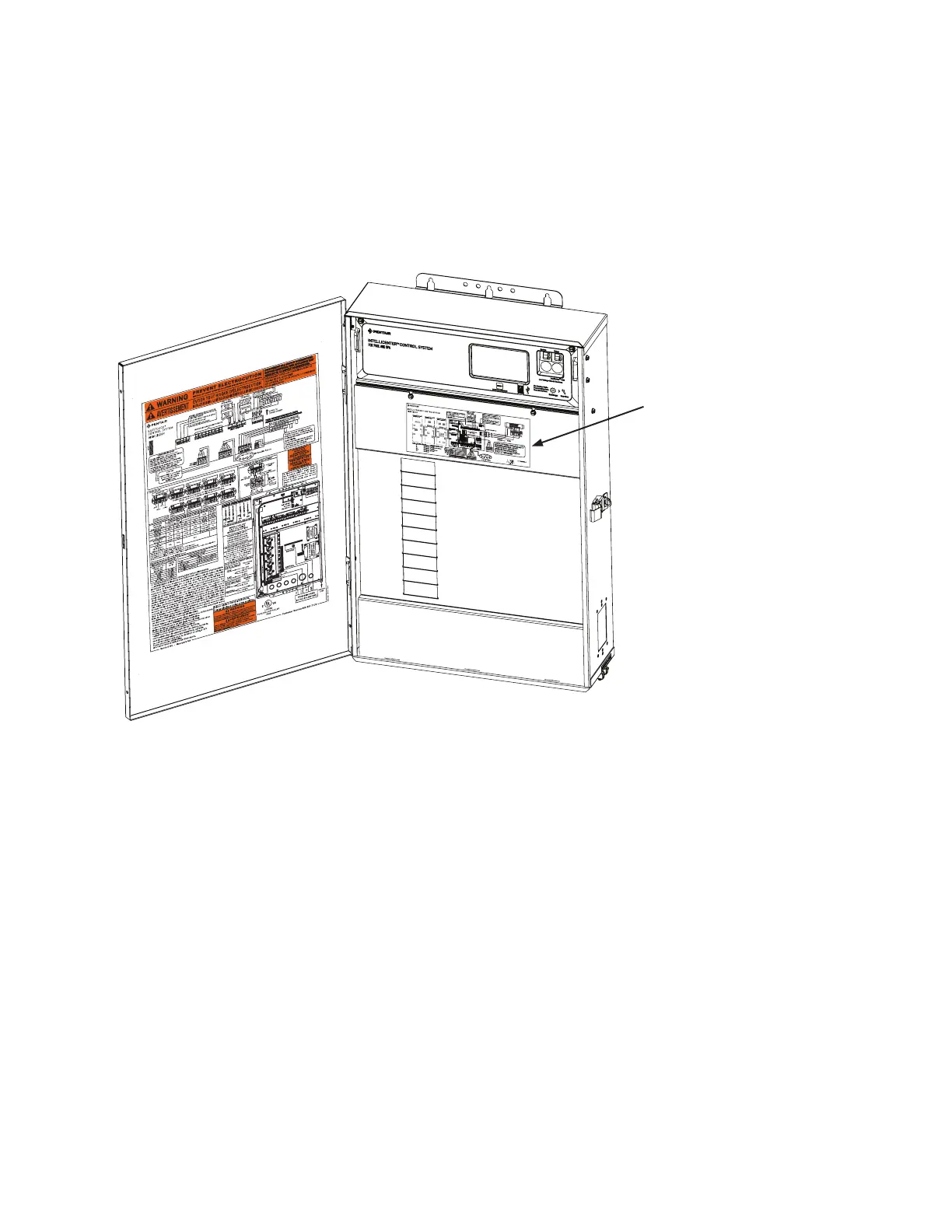

Installing the Wiring Label on the Enclosure Front Door
Figure 10. Load Center (Legacy 2003 - 2012)
Place label onto
High Voltage
Cover panel
AUX5AUX6
AUX7AUX8 AUX9
*522612*
Wiring Diagram label for IntelliCenter Control System Upgrade Kit.

Pentair INTELLITOUCH Specifications

General

Remote Access	Yes, via mobile app
Lighting Control	Yes
Automation	Yes
Expandability	Yes
Interface	Touchscreen, mobile app
Enclosure Rating	NEMA 3R
User Interface	Touchscreen
Compatibility	Pentair equipment
Connectivity	Ethernet, Wireless
Mobile Control	Yes
Remote Control	Yes
Communication Protocol	Pentair proprietary
Control Type	Automated
