3
Note: Refer to page 3 where (parts index number) is shown
EasyTouch/IntelliTouch Control System Legacy Upgrade Kits Installation Instructions
Legacy Kit P/N 522045, 522046, 523218, 523530
Wireless Antenna Kit P/N 544425
(Not included with 523530 Expansion Kit)
(P/N 523143)
Transformer Bracket Assembly
P/N 520222
Six (6) Screws
PCBA
(i10P / i10PS / i10D / i10X)
Outdoor Control Panel
(i5P, i5X)

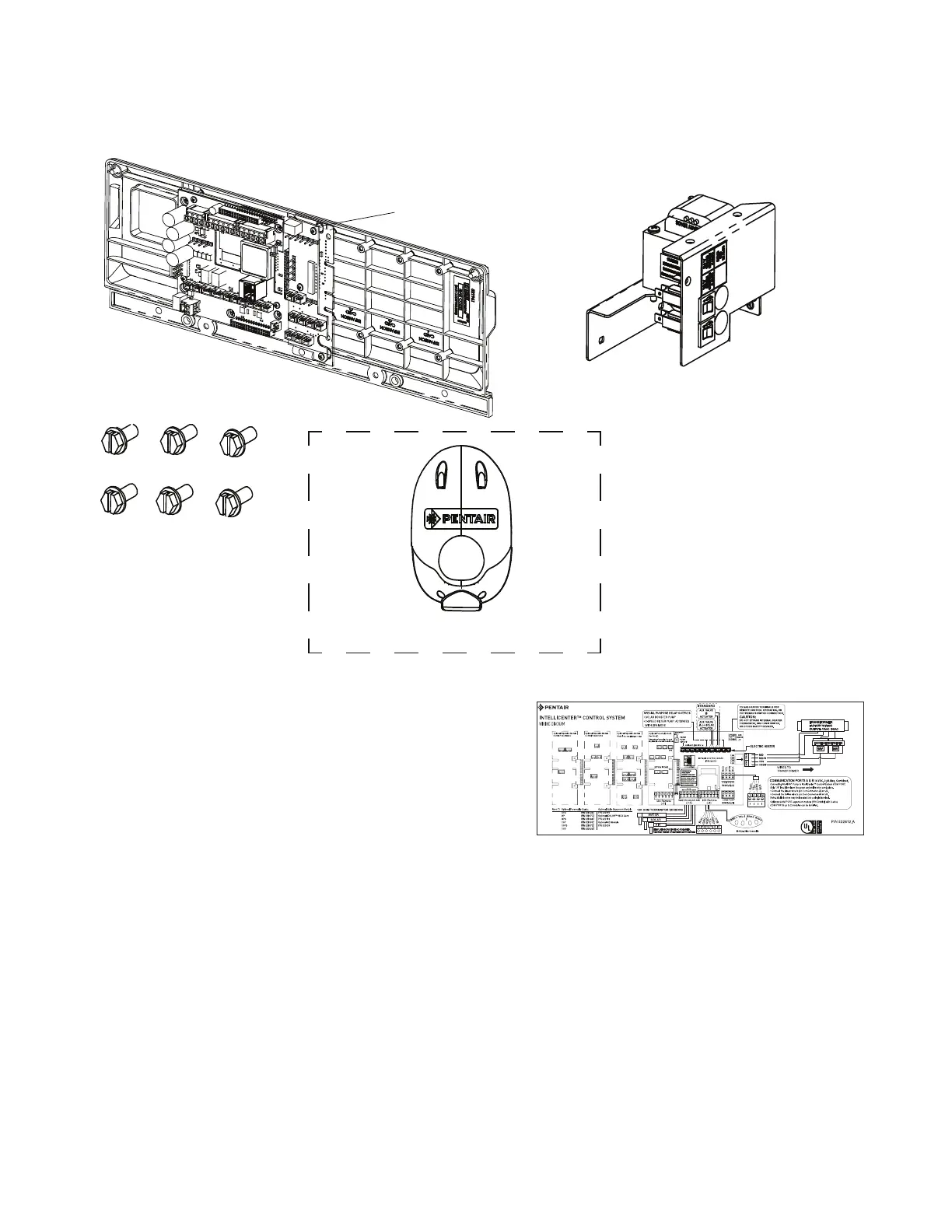

BOX CONTENTS
Figure 1. IntelliCenter Control System Legacy Upgrade Kit Contents
1. Kit P/N 522045, 522046, 523218:
P/N 521938, i5P Outdoor Control Panel.
Kit P/N 523530: P/N 522029, i5X Outdoor Control Panel.
2. Kit P/N 522045: P/N 521993Z, i10P
Personality Board, Shared Equipment.
Kit P/N 522046: P/N 521873Z, i10PS Personality Board,
Shared Equipment.
Kit P/N 523218: P/N 523029Z, i10D Personality
Board, Shared Equipment.
Kit P/N 523530: P/N 522997Z, i10X Expansion Board,
Shared Equipment.
3. P/N 523143, Transformer Bracket Assembly
4. P/N 520222, Six (6) screws
5. P/N 544425, Wireless Antenna Kit
(not included with 523530 expansion kit).
6. P/N 522612, Wiring Label, IntelliCenter Control System
• IntelliCenter Control System manuals (not shown):
• Installation Guide (P/N 522989)
• User’s Guide (P/N 522990)
• Quick Reference Guide (P/N 522988)
• WiFi Remote Installation Guide (P/N 523350)
Wiring Label,
IntelliCenter Control System
6.
AUX5 AUX6
AUX7 AUX8 AUX9
*522612*
Wiring Diagram label for IntelliCenter Control System Upgrade Kit.
