Pentair RAYCHEM RAYSTAT-CONTROL-10 User Manual

11
Remark: The sensor cable can be extended up to 150 m when a cross
section of 3 x 1,5 mm² is used (max� 20 Ω per conductor)� The connection
between sensor cable and sensor extension can be made in junction
box JB-86 or equivalent� Use a shielded cable for extension to avoid
interference� The shielding braid is to be earthed in the thermostat�
5. Complete installation
A
A
A
Put the terminal protection cover back in place�
If RAYSTAT-CONTROL-10 is not yet programmed, please do so as
described in Operational description (page 11) and onwards�
Close the lid of the unit�

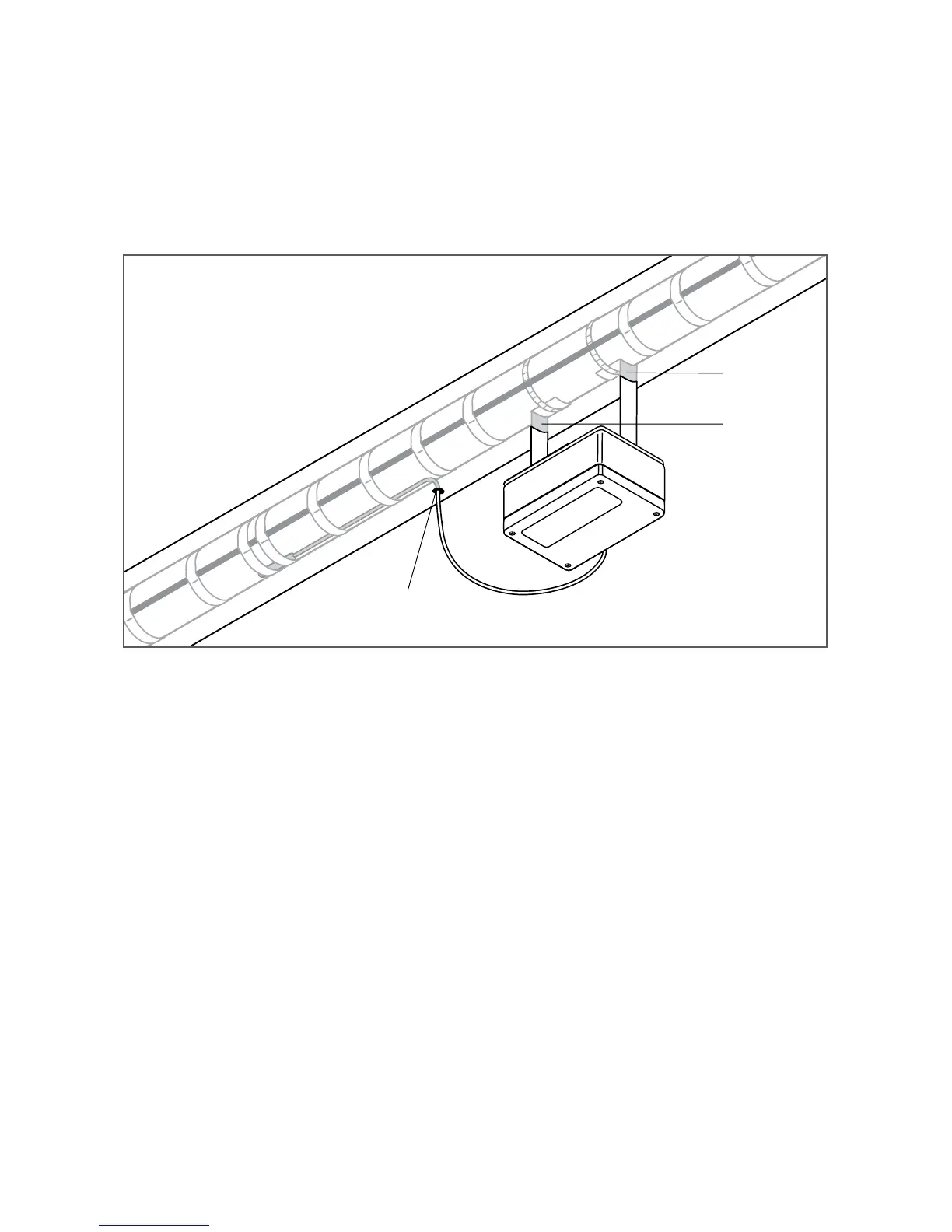

Ensure that the pipe and sensor are thermally insulated and clad to the
design specification after installation of thermostat�
Seal cladding with sealant (A)�
