Pentair Sta-Rite J Series User Manual

8
JHGT-52H
Key Part No. JHG3T-52H JHHG3T-53H
No. Description Used 2 HP 2-1/2 HP
1 Motor, 2 HP, 230V, 1 Phase 1 AE100GL-T AE100G5L-T
1 Motor, 2 HP, 230/460V, 3 Phase 1 AP100GL-T AP100G5L-T
†2 Water Slinger 1 17351-0009 17351-0009
3 Seal Plate 1 C3-181 C3-181
†4 Gasket, Seal Plate 1 C20-122 C20-122
†5 Shaft Seal 1 U109-6A U109-6A
6 Impeller 1 C105-214PCA C105-214PA
6A Impeller Screw (3 Phase Only) 1 C30-14SS C30-14SS
7 Volute Assembly with Wear Ring 1 C101-264B C101-264B
7A Wear Ring 1 C23-19 C23-19
8 Pipe Plug, 1/4” NPT Hex Hd. 3 U78-941ZPV U78-941ZPV
9 Base 1 J104-9A J104-9A
9A Motor Pad 1 C35-5 C35-5
10 Socket Head Capscrew, 3/8” - 16 x 1-1/4” Lg 4 U30-104ZP U30-104ZP
2413T 0496
1
2
3
4
5
6
7A
6A
7
10
10
9
9A
8

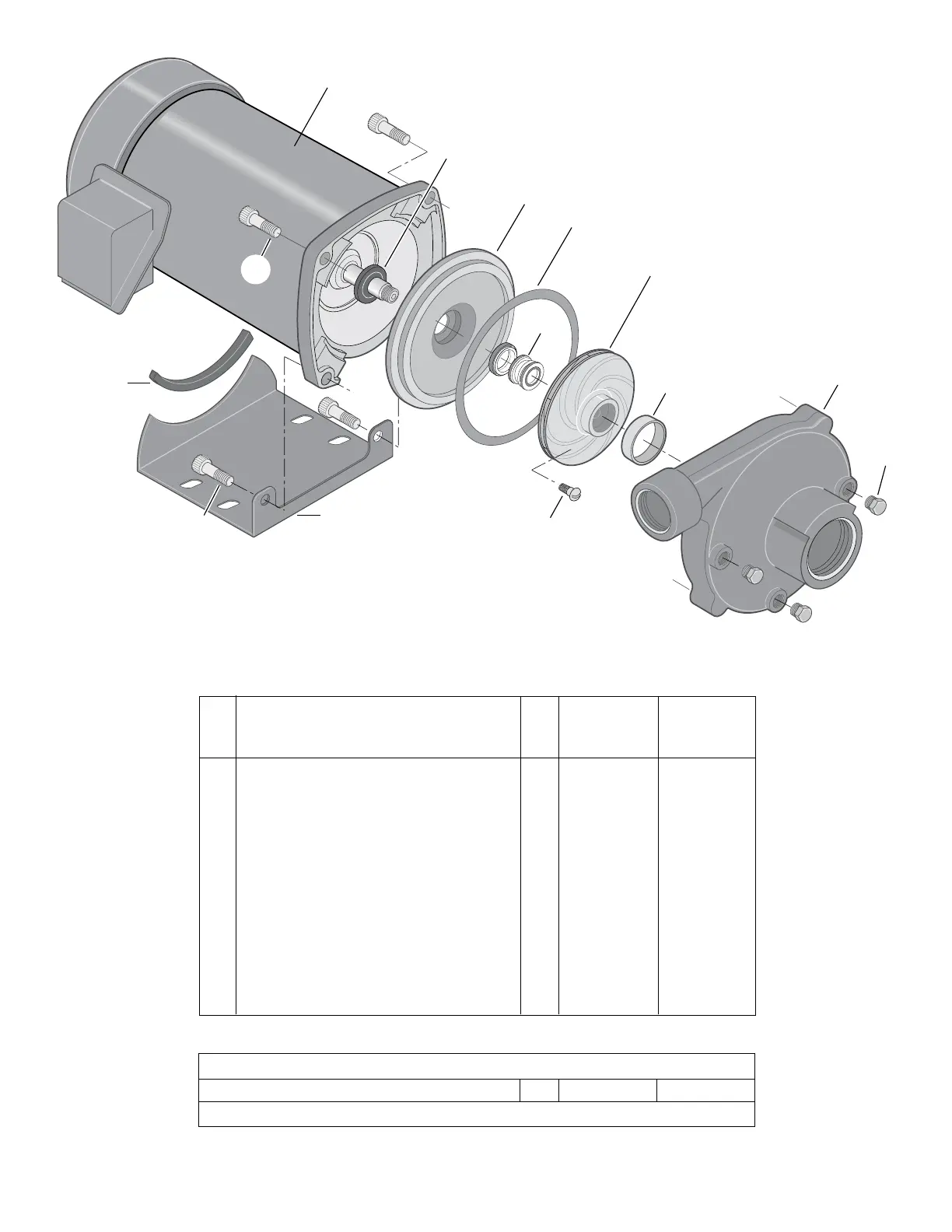

REPAIR PARTS LIST
“J” SERIES WITH TEFC MOTORS - HIGH HEAD
*For repair or service to motors, always give the motor Model Number and any other data found on the
Motor Model Plate.
SERVICE KIT
Seal and Gasket Kit (J Series) 1 PP1700 PP1700
NOTE: † Included in Seal and Gasket Kit
