76670 -2/12-
Summary
*istDL2 (76670) is basically same as *istDL (76570)
The information in this manual is only for istDL2. For other information, please refer to the service
manual for istDL.
The service equipments are common use with istDL except service program soft.
1-1. Preparation for adjustment
Adjustment program soft for 76670（＊ist DL2） --- （Supply with CD-R）
Computer
SD memory card x 2 --- The size of memory should be bigger than 8MB
SD card reader or Camera and USB cable （I-USB17） --- Connect to PC
Preparation for SD memory card
1. Two SD memory card for FW
The following SD card is common use with istDL/istDS
2. For SW test
3. For Test mode ON
4. For test mode OFF
5. For initial set
1-2.Setting the computer and copy the adjustment file to SD card

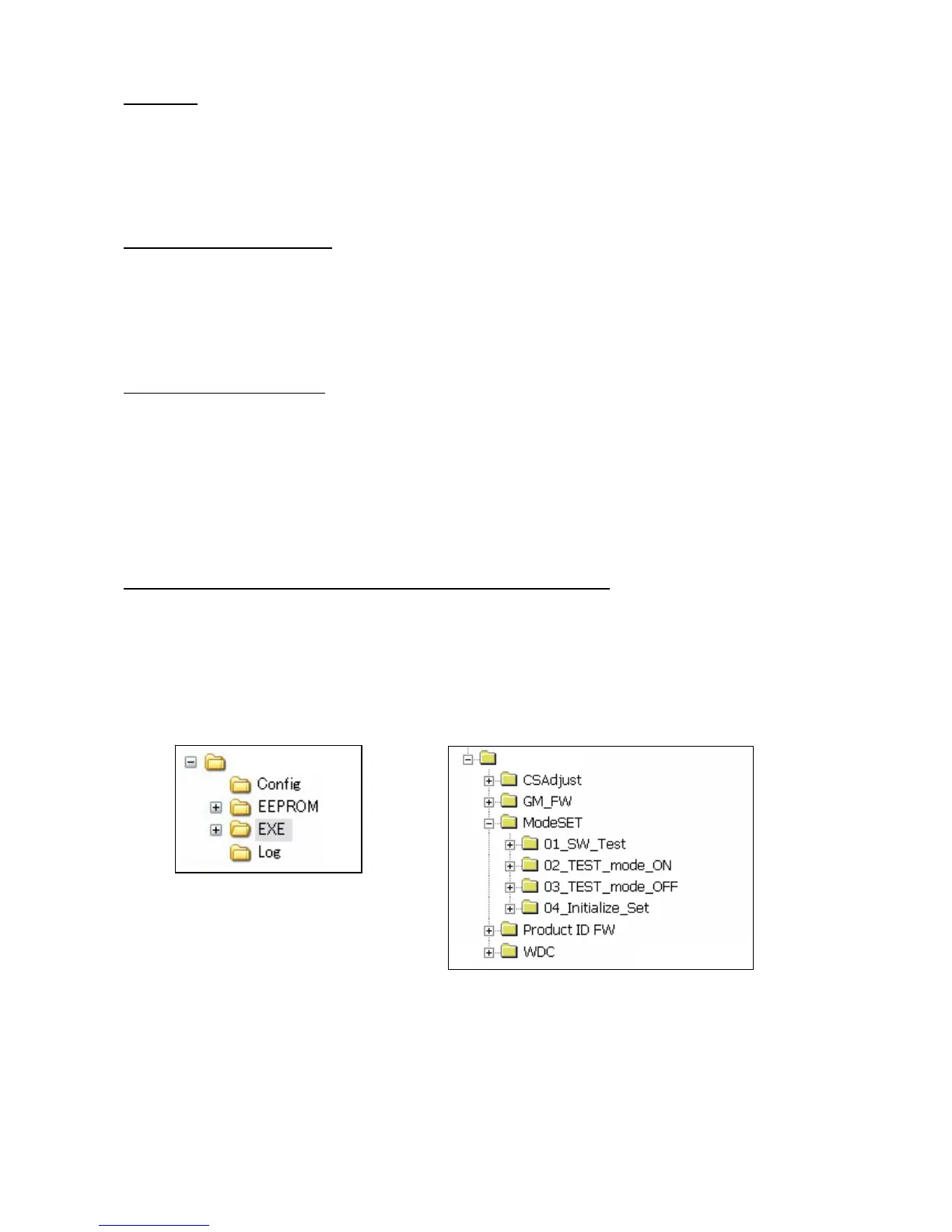

(1) Copy the [76670 SLR] folder from the Programmed software contained in the CD-ROM to [C: drive] as
shown in the picture below. (For SLR adjustment)
(2) Copy the [76670] folder from the Programmed software contained in the CD-ROM to [C: drive] as shown in
the picture below. (For Digital adjustment)
(3) Copy the file of [kb411b.bin] from [GM_FW] holder
(4) Copy the file of [kb392.bin] from [Product ID FW] --- FW for new T100
76670
