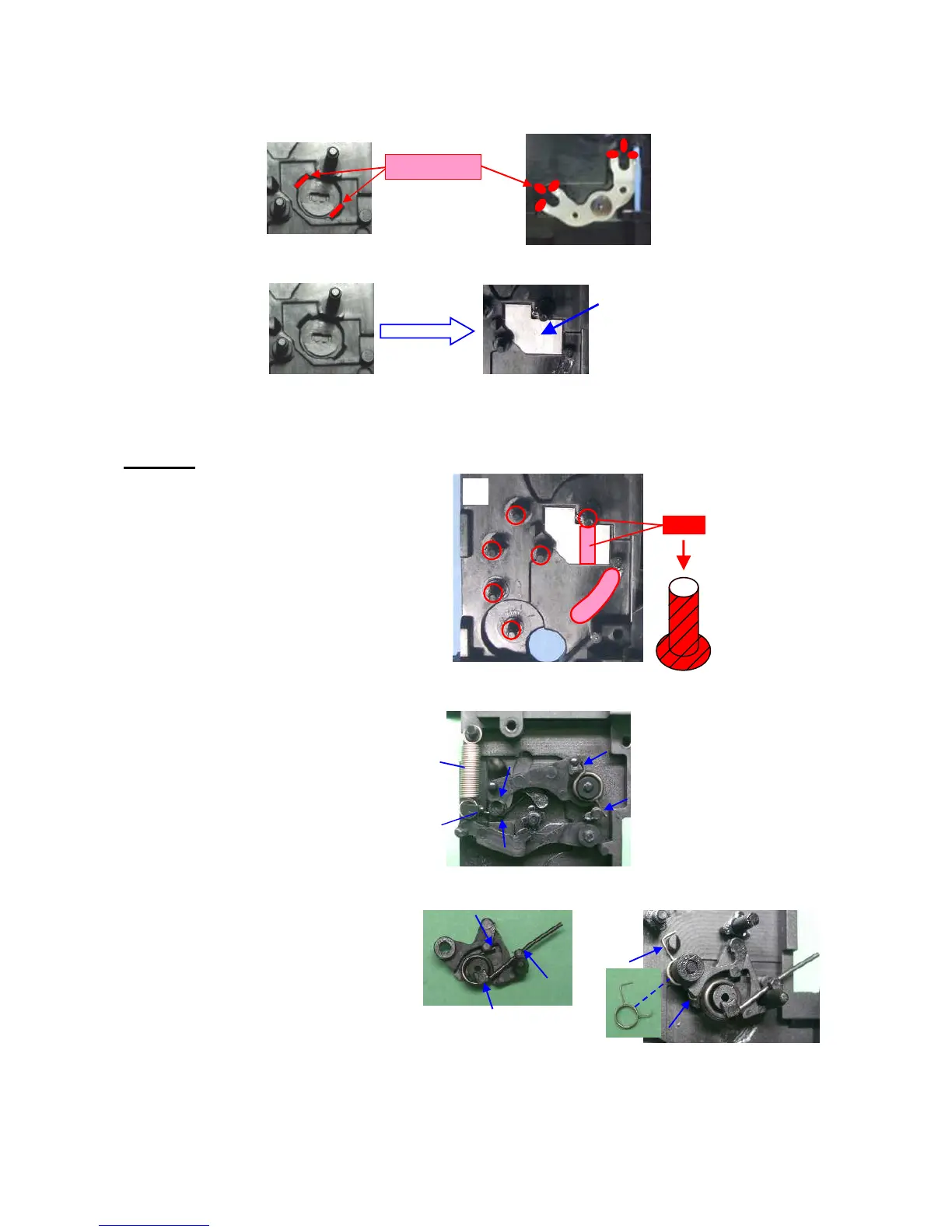

③After adjusting and confirming, apply Super-glue as shown in figure.
④ B71, B72 --- Surely affix without any gap.
6. 0-G100
① Apply G126 (8 points) as shown figure.
[CAUTION] Caution for come off spring.
② B10
③ B21
④ Install B17 to B9.
⑤ Install B18 and B9.
Super-glue
④
②
③
⑤
①
G126
