77420 - 19/107 -

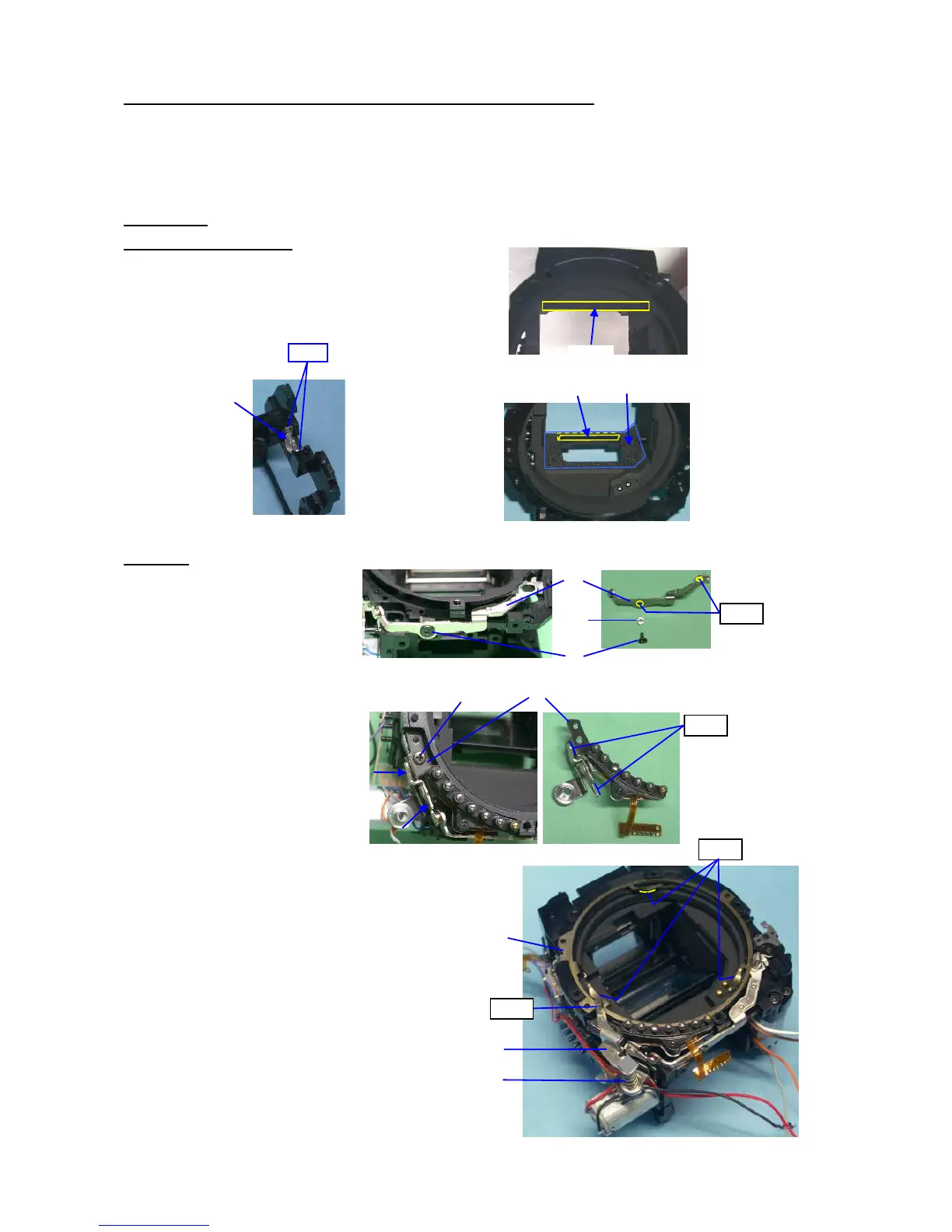

II. Assembly and disassembly procedure of front housing block
*Disassemble the front housing block in reverse of assembly procedures.
*Some pictures are using previous model but basic structural is the same as K-r.
[Assembly]
1. Front housing block
・B65
・B41, 0-M120 (DT(4x15))
・M7 --- Confirm that the surface of lens is clean.
2．A104
① 0-A121
② A133
③ TY-CNL-F1.4x4.0
④ 0-A126 and related parts.
Apply G134 as shown in figure.
⑤ TY-CNL-D1.7x3.0
⑥ A105 --- Apply G134 as shown in figure.
⑦ A110
⑧ 0-A108 --- Apply G134 to two shaft part.
To Next Page
