PREPARATION
The following preparations are required before disassembling and assembling the camera.
1. Prepare the Jigs; tools and testers (Refer to the table of Jigs, tools and testers.)
2. Make the preparation for adjustment with referring [Preparation of Adjustments].
Preparation of Adjustments
[Required equipment]
Programmed software for 77420(CD-ROM)
Computer (PC)
  OS: Windows XP SP2CPU: 1GHz or moreRAM: 512MB or more
Free disk space (HD): 500MB or more
SD card 5 pieces (16Mb or above) --- for FW
SD card reader or USB cable (I-USB17) --- For connecting with PC
1. Prepare SD card (5 pcs) for confirming adjustment
*prepare SD card (5pcs)
1. For Product FW (Firmware)
2. For writing Initial Data
3. For Initial set (Initialize / Product shipment)
4. For test mode ON / OFF (For confirming full version, 1 pcs each)
2. Installing procedure of the Adjustment Software (Setting of the Computer)
*Set programmed software for 77420 (CD-R) to CD-ROM drive.

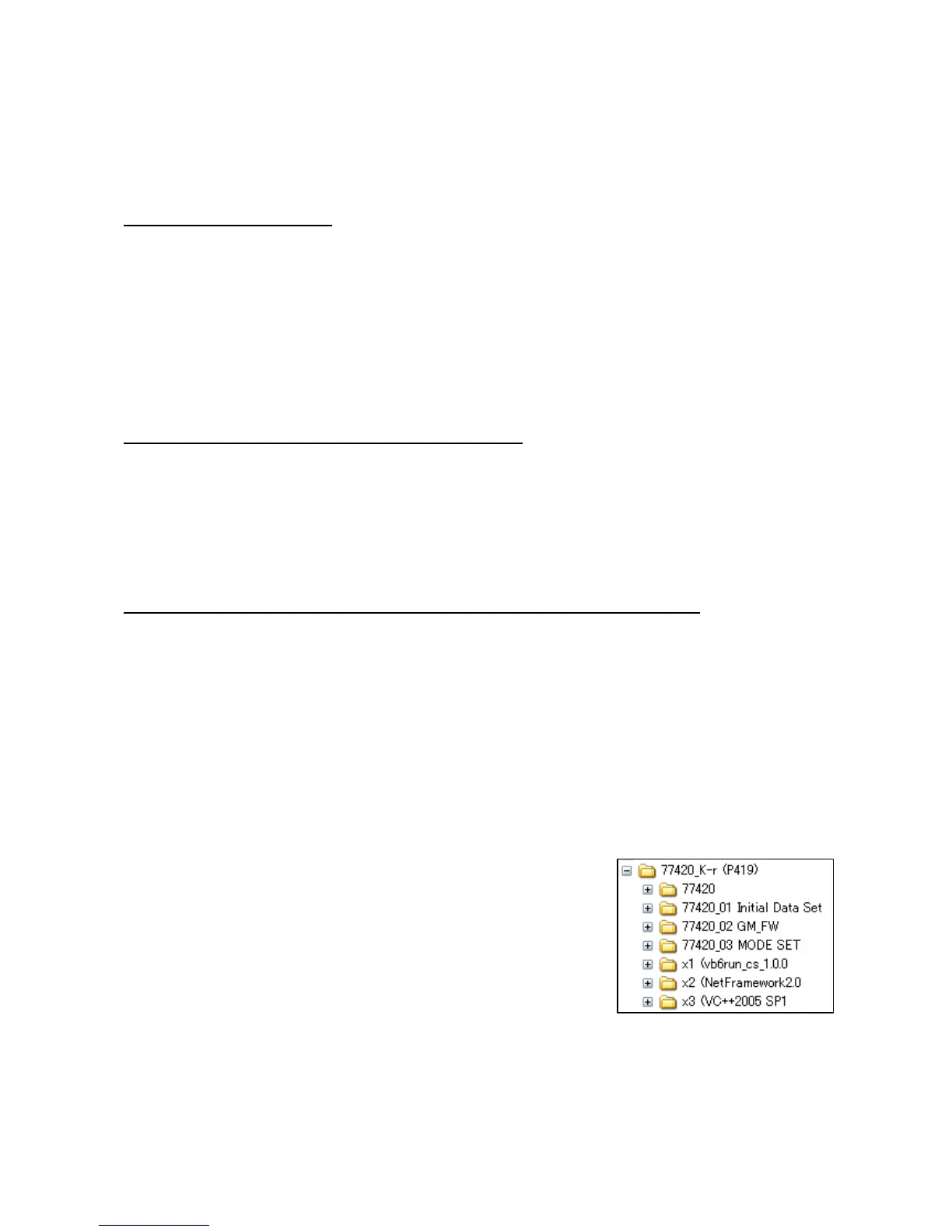

① Copy the [77420] folder from the programmed software contained in the CD-ROM to [C: drive]
②Copy the file from [GM_FW] folder to SD card --- For Product FW (Firmware)
③ Copy the 2 files from [Initial Data Set] folder to SD card. --- For writing Initial Data.
④ Copy the file from [Initial Set] folder in the [MODE SET] to SD card.--- For Initial set (Initialize)
⑤Copy the file from [Test mode ON] and [Test mode OFF] folder in the [MODE SET] to each SD card.
(Since the name of all files is the same, you should distinguish them by name label etc.)
