Assembly and Disassembly
I. Disassembly procedure of main body
[Preparation] Remove the Hot shoe cover and Eye cap from the main body.
1. POP-up the built-in flash
① For removing top cover, install the batteries to the camera and turn on the camera then pop-up the flash
by pressing pop-up button.
*If the camera does not pop-up the flash.

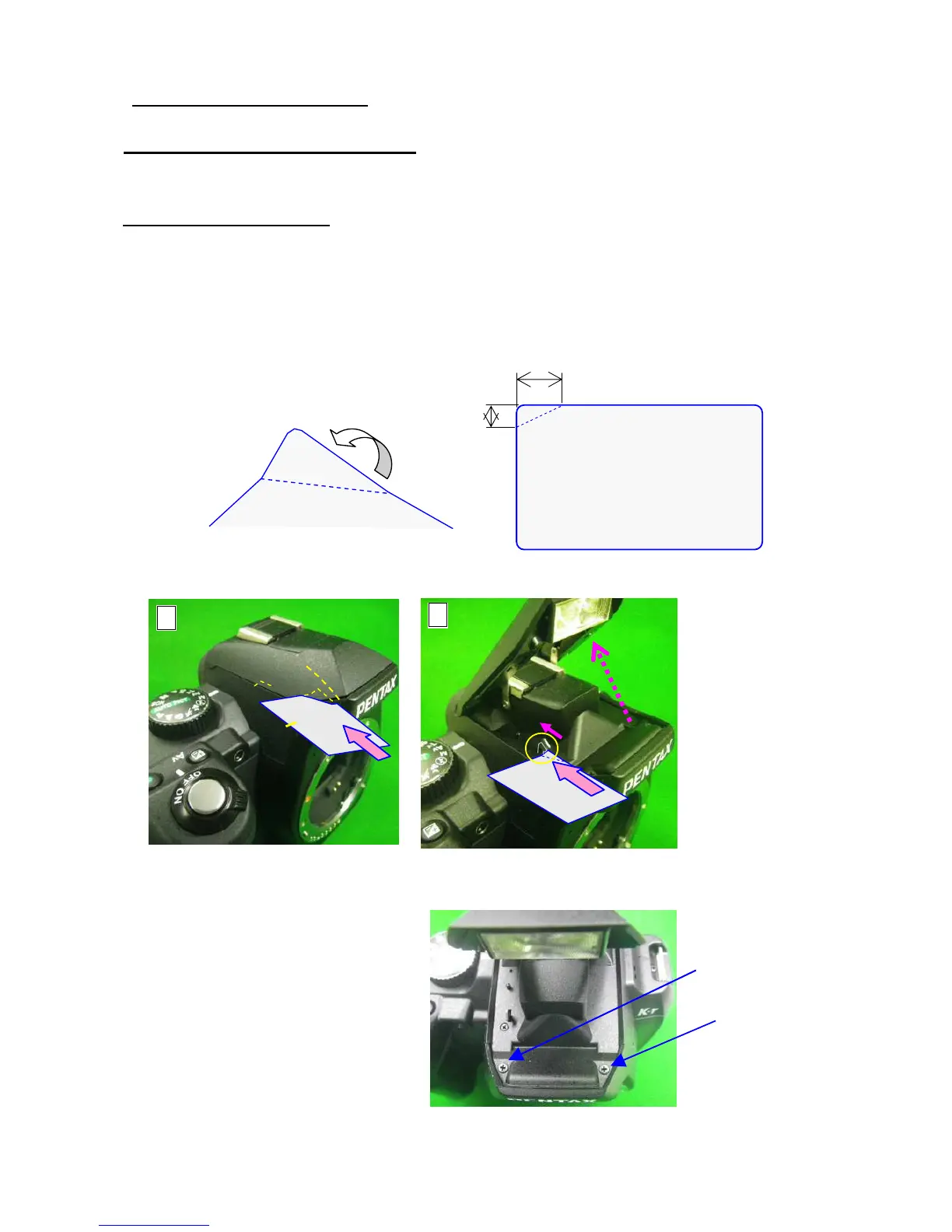

②[Preparation] Use flash pop-up tool as shown in follow.
(The same tool as MZ-7) --- Use such as thin magnetic card and processes it as follow.
③ Procedure for pop-up.
④ Unscrew U2 x2 (CNL-D 1.7x4.0)
5
To Next Page
