77420 - 32/107 -

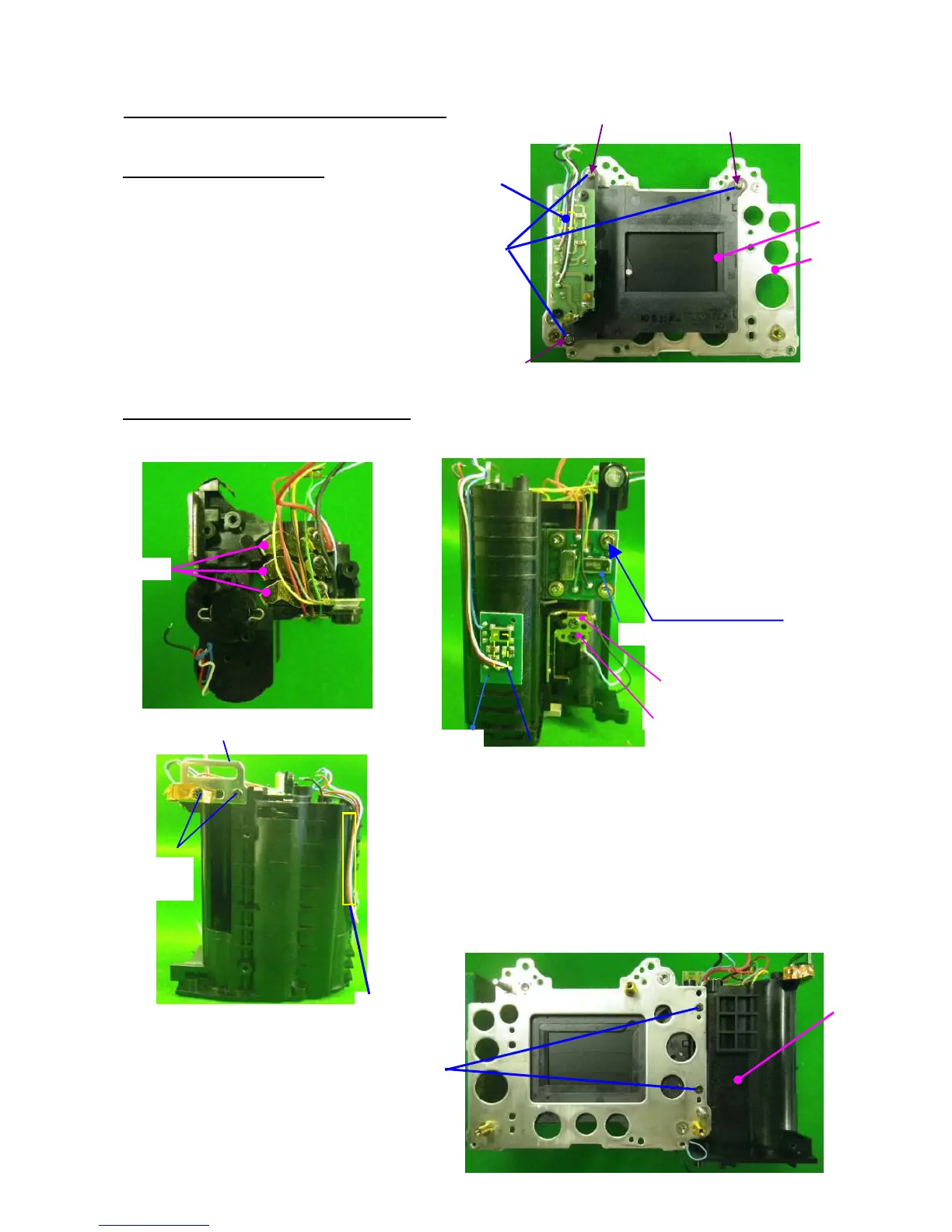

Ⅲ．Assemble procedure of main body
1．E100（Shutter block）
①Main body
②E100
③A70 screw x3
--- Tighten screw in order of number as shown in figure.
④Arrange 5 lead wires by DT (5x5).
*After install, 0-E000 has little movement.
2. A13 (Battery case) and related parts
[Confirm] Each parts are installed correct position.
③A13 and related parts.
④TY-CNL-D1.7x4.0 x2
DT(5x25)
To Next Page
