77420 - 31/107 -

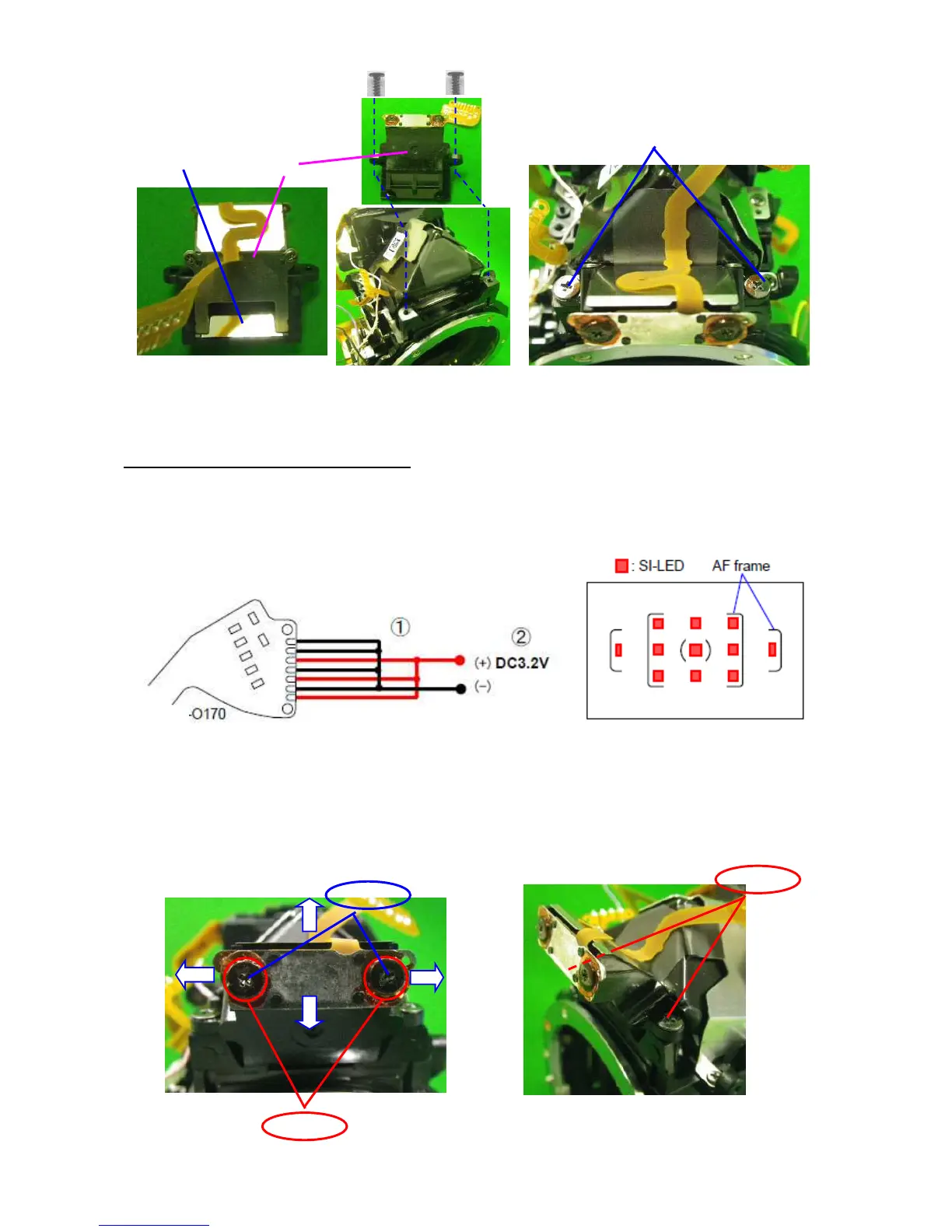

19．[Adjustment] Positioning SI-LED
[Required equipment] Power supply, lead wires
① Solder and arrange the read wires on O170 as shown in the figure below.
[Caution] Do not stress to the lands of O170.
② Apply DC3.2V to O170, and confirm the positioning
and lighting of SI-LED 11 points
③ [ADJ] Loosen 2 screws, and then adjust the position of O170.
・・・Remove the adhering screw lock (two positions)
④Tighten the screw and confirm the position.
⑤After adjustment is done, apply the screw-lock to 3 positions and remove the read wires from O170.
③
To Next Page
